Foil + Braid Shield • Steel Wire Braid Armour (SWB) • LSZH Jacket • 120Ω
Available Models:
732016 (1P) · 732026 (2P) · 732036 (3P) · 732046 (4P)

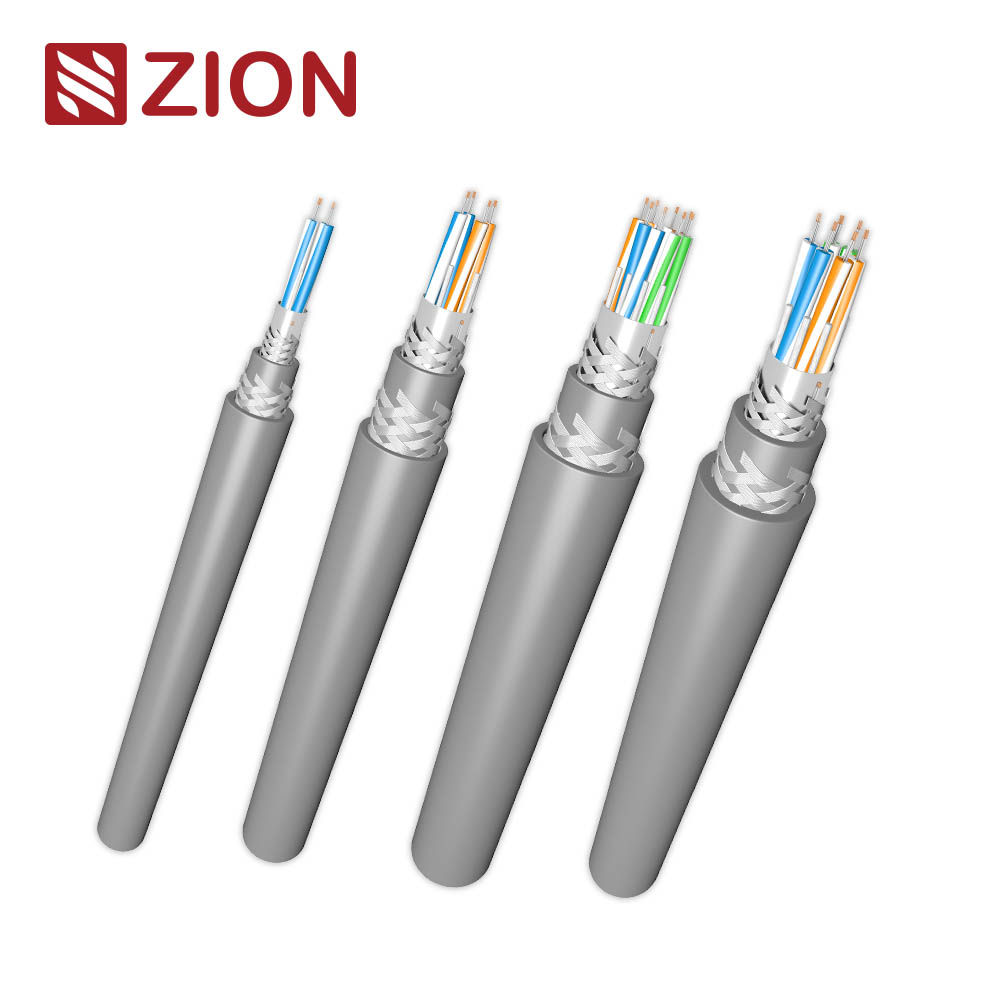

ZION COMMUNICATION’s RS485 Armored Cable Series is engineered for mission-critical industrial environments requiring strong mechanical protection, superior EMI resistance, flame safety, and long-distance stable RS485/RS422 serial communication.
This series combines:
24AWG stranded tinned copper conductors
Foam PE insulation for low capacitance
Double shielding: Aluminum Foil + Tinned Copper Braid
Steel Wire Braid (SWB) armor for mechanical strength, rodent resistance and crush protection
LSZH (Low Smoke Zero Halogen) inner & outer jackets for enhanced fire performance
Ideal for railway signaling, tunnels, BMS fire systems, industrial automation, oil & gas, heavy machinery areas, and environments with high mechanical stress or EMI interference.
Armoured Construction (SWB): Strong mechanical protection against impact, crushing, and rodents.
Double Shielding (Foil + Braid): Superior EMI/RFI suppression for industrial communication.
24AWG stranded tinned copper conductors ensure low attenuation and stable signal integrity.
LSZH Inner + Outer Jacket: Low smoke, halogen-free, suitable for public buildings, tunnels, transport hubs.
120Ω characteristic impedance, optimized for RS485/RS422 multi-drop networks.
Low capacitance FPE insulation supports long-distance serial communication.
Ideal for high-risk or harsh environments where standard RS485 cables are insufficient.
RS485 / RS422 serial bus communication
Industrial automation & PLC networks
Tunnels, subway systems, railway signaling
BMS fire protection, alarm & monitoring systems
High-EMI factory environments with motors/VFDs
Outdoor or semi-outdoor communication
Access control & security communication lines
Heavy machinery / power plant automation
| Component | Description |
|---|---|
| Conductor | 24AWG stranded tinned copper |
| Insulation | Foam Polyethylene (FPE), low capacitance |
| Pair Structure | Twisted pairs, color-coded |
| Shield 1 (Foil) | Aluminum foil, 100% coverage |
| Shield 2 (Braid) | Tinned copper braid for EMI protection |
| Inner Jacket | LSZH |
| Armor | Steel Wire Braid (SWB) |
| Outer Jacket | LSZH, flame-retardant, low smoke |
| Color | Standard Black |
| Property | Value |
|---|---|
| Characteristic Impedance | 120 Ω |
| DC Resistance (Conductor) | ~24 Ω/1000 ft (78.7 Ω/km) |
| Capacitance (Cond–Cond) | ~42 pF/m |
| Capacitance (Cond–Shield) | ~75–80 pF/m |
| Velocity of Propagation | ~78% |
| Voltage Rating | 300 V |
| Maximum Operating Frequency | RS485 typical range |
| Property | Value |
|---|---|
| Operating Temperature | –20°C to +60°C |
| Minimum Bend Radius | ≥ 10 × cable O.D. |
| Armor Protection | Steel Wire Braid – crush & rodent resistant |
| Compliance | LSZH low-smoke halogen-free jackets |
| Installation Areas | Indoor / tunnel / transit / shaft / conduit / harsh industrial |
(I can extract exact O.D. values from spreadsheets if you want them inserted here)
| Model | Pairs | Shielding | Armor | Jacket | Typical Use Case |
|---|---|---|---|---|---|
| 732016 | 1 Pair | Foil + Braid | SWB | LSZH | Single-channel RS485 in hazardous or protected routes |
| 732026 | 2 Pair | Foil + Braid | SWB | LSZH | Multi-drop RS485 networks with mechanical risk |
| 732036 | 3 Pair | Foil + Braid | SWB | LSZH | BMS, tunnel communication, industrial control |
| 732046 | 4 Pair | Foil + Braid | SWB | LSZH | Dense RS485/422 communication in high-EMI areas |
Standards & Compliance
LSZH (IEC/EN flame standard compliant)
RoHS 2 (2011/65/EU) compliant
CE marking (Low Voltage Directive)
Excellent EMI suppression (foil + braid)
Suitable for safety-critical building environments
Foil + Braid Shield • Steel Wire Braid Armour (SWB) • LSZH Jacket • 120Ω
Available Models:
732016 (1P) · 732026 (2P) · 732036 (3P) · 732046 (4P)
ZION COMMUNICATION’s RS485 Armored Cable Series is engineered for mission-critical industrial environments requiring strong mechanical protection, superior EMI resistance, flame safety, and long-distance stable RS485/RS422 serial communication.
This series combines:
24AWG stranded tinned copper conductors
Foam PE insulation for low capacitance
Double shielding: Aluminum Foil + Tinned Copper Braid
Steel Wire Braid (SWB) armor for mechanical strength, rodent resistance and crush protection
LSZH (Low Smoke Zero Halogen) inner & outer jackets for enhanced fire performance
Ideal for railway signaling, tunnels, BMS fire systems, industrial automation, oil & gas, heavy machinery areas, and environments with high mechanical stress or EMI interference.
Armoured Construction (SWB): Strong mechanical protection against impact, crushing, and rodents.
Double Shielding (Foil + Braid): Superior EMI/RFI suppression for industrial communication.
24AWG stranded tinned copper conductors ensure low attenuation and stable signal integrity.
LSZH Inner + Outer Jacket: Low smoke, halogen-free, suitable for public buildings, tunnels, transport hubs.
120Ω characteristic impedance, optimized for RS485/RS422 multi-drop networks.
Low capacitance FPE insulation supports long-distance serial communication.
Ideal for high-risk or harsh environments where standard RS485 cables are insufficient.
RS485 / RS422 serial bus communication
Industrial automation & PLC networks
Tunnels, subway systems, railway signaling
BMS fire protection, alarm & monitoring systems
High-EMI factory environments with motors/VFDs
Outdoor or semi-outdoor communication
Access control & security communication lines
Heavy machinery / power plant automation
| Component | Description |
|---|---|
| Conductor | 24AWG stranded tinned copper |
| Insulation | Foam Polyethylene (FPE), low capacitance |
| Pair Structure | Twisted pairs, color-coded |
| Shield 1 (Foil) | Aluminum foil, 100% coverage |
| Shield 2 (Braid) | Tinned copper braid for EMI protection |
| Inner Jacket | LSZH |
| Armor | Steel Wire Braid (SWB) |
| Outer Jacket | LSZH, flame-retardant, low smoke |
| Color | Standard Black |
| Property | Value |
|---|---|
| Characteristic Impedance | 120 Ω |
| DC Resistance (Conductor) | ~24 Ω/1000 ft (78.7 Ω/km) |
| Capacitance (Cond–Cond) | ~42 pF/m |
| Capacitance (Cond–Shield) | ~75–80 pF/m |
| Velocity of Propagation | ~78% |
| Voltage Rating | 300 V |
| Maximum Operating Frequency | RS485 typical range |
| Property | Value |
|---|---|
| Operating Temperature | –20°C to +60°C |
| Minimum Bend Radius | ≥ 10 × cable O.D. |
| Armor Protection | Steel Wire Braid – crush & rodent resistant |
| Compliance | LSZH low-smoke halogen-free jackets |
| Installation Areas | Indoor / tunnel / transit / shaft / conduit / harsh industrial |
(I can extract exact O.D. values from spreadsheets if you want them inserted here)
| Model | Pairs | Shielding | Armor | Jacket | Typical Use Case |
|---|---|---|---|---|---|
| 732016 | 1 Pair | Foil + Braid | SWB | LSZH | Single-channel RS485 in hazardous or protected routes |
| 732026 | 2 Pair | Foil + Braid | SWB | LSZH | Multi-drop RS485 networks with mechanical risk |
| 732036 | 3 Pair | Foil + Braid | SWB | LSZH | BMS, tunnel communication, industrial control |
| 732046 | 4 Pair | Foil + Braid | SWB | LSZH | Dense RS485/422 communication in high-EMI areas |
Standards & Compliance
LSZH (IEC/EN flame standard compliant)
RoHS 2 (2011/65/EU) compliant
CE marking (Low Voltage Directive)
Excellent EMI suppression (foil + braid)
Suitable for safety-critical building environments
