RS485 Cable
hellosignal
732041
Power and Control Cables

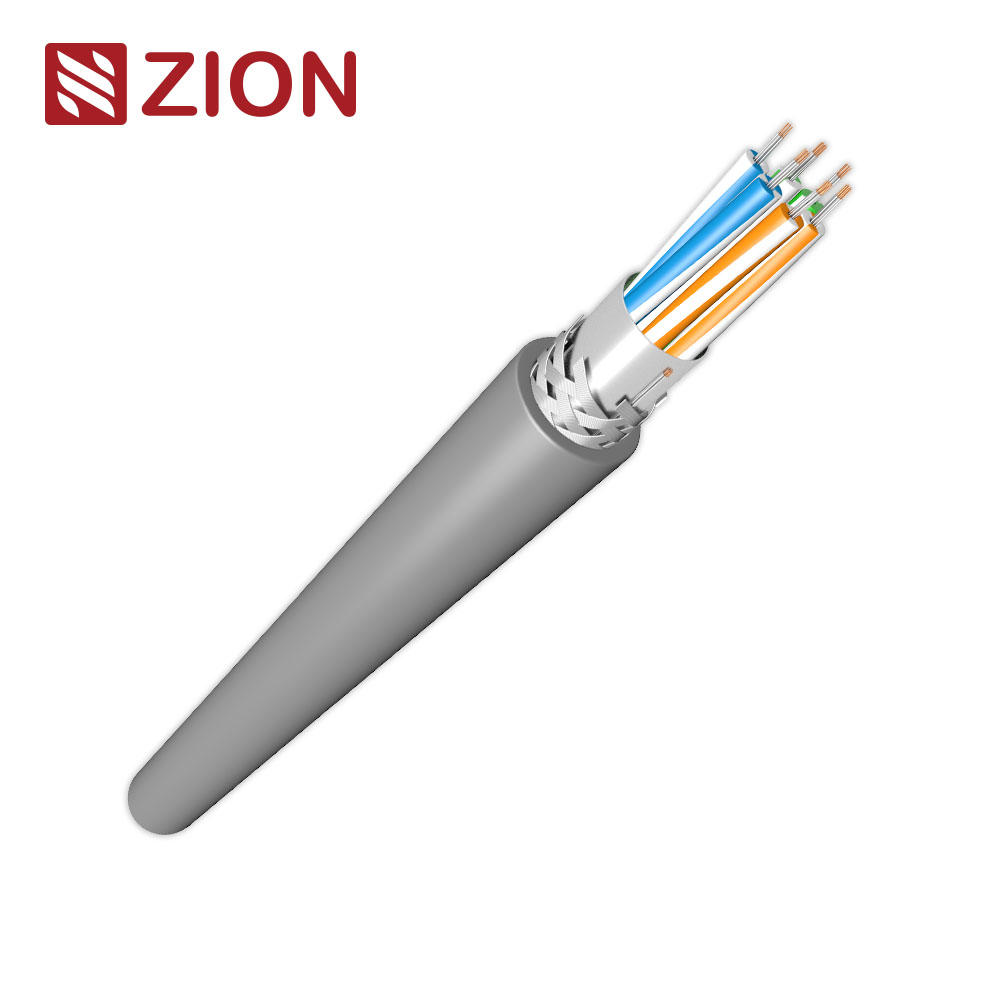

RS485 Cable, 24AWG 4P, Foil+Braid, LSZH Eca, 120Ω
SKU: 732041
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks

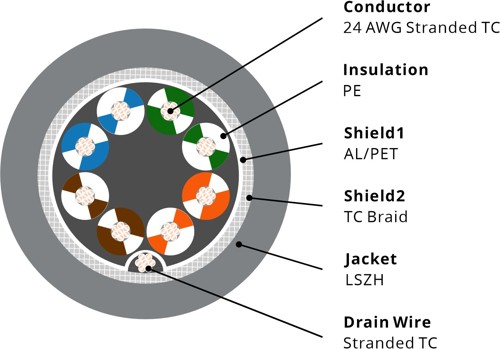

Component | Specification |
Conductor | 4 Pairs, AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Insulation Material | Polyethylene (PE) |
Insulation Thickness | 0.022 in (0.56 mm) |
Insulation Diameter | 0.0681 in (1.73 mm) |
Color Code (per pair) | 1. White/Blue Stripe & Blue/White Stripe |
Or Type 2 | Each Pair: Pure Color & White: |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Shield 2 (Braid) | Tinned Copper Braid, 90% coverage |
Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant), |
Jacket Thickness | 0.035 in (0.90 mm) |
Overall Diameter | 0.390 in (9.9±0.5mm) |
Property | Value |
Conductor DCR | 24 Ohm/1000 ft (78.7 Ohm/km) |
Capacitance (Cond–Cond) | 42 pF/m (13 pF/ft) |
Capacitance (Cond–Shield) | 75.5 pF/m |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 66% |
Max Current (Per Conductor) | 2.1 Amps @ 25ºC |
Insertion Loss (1 MHz) | 1.97 dB/100m (0.600 dB/100ft) |
Voltage Rating | 300 V (CM), 30 V (UL AWM 2919) |
Property | Value |
Operating Temperature | -45°C to +80°C |
Installation Temperature | -15°C to +80°C |
Storage Temperature | -45°C to +80°C |
Bend Radius | Stationary: 50 mm (2.0 in) |
Standard / Regulation | Compliance |
Flame / Fire Resistance | IEC 60332-1-2, IEC 60332-3-24 |
Smoke Emission | IEC 61034-2 (≥ 60% Light Transmittance) |
CPR Compliance (EU) | Euroclass: Eca |
Halogen-Free Compliance | IEC 62821-1, IEC 60754-1 & 60754-2 |
CE / EU Directive | RoHS, REACH, CE Mark |
Environmental Suitability | Indoor, Oil Resistant, Sunlight Resistant, Non-Halogenated |
