Stable, Low-Capacitance Data Cable for Industrial Automation & Serial Communication
Available Models: 73004 (4 pairs) · 73005 (5 pairs) · 73006 (8 pairs) · 73012 (12.5 pairs)

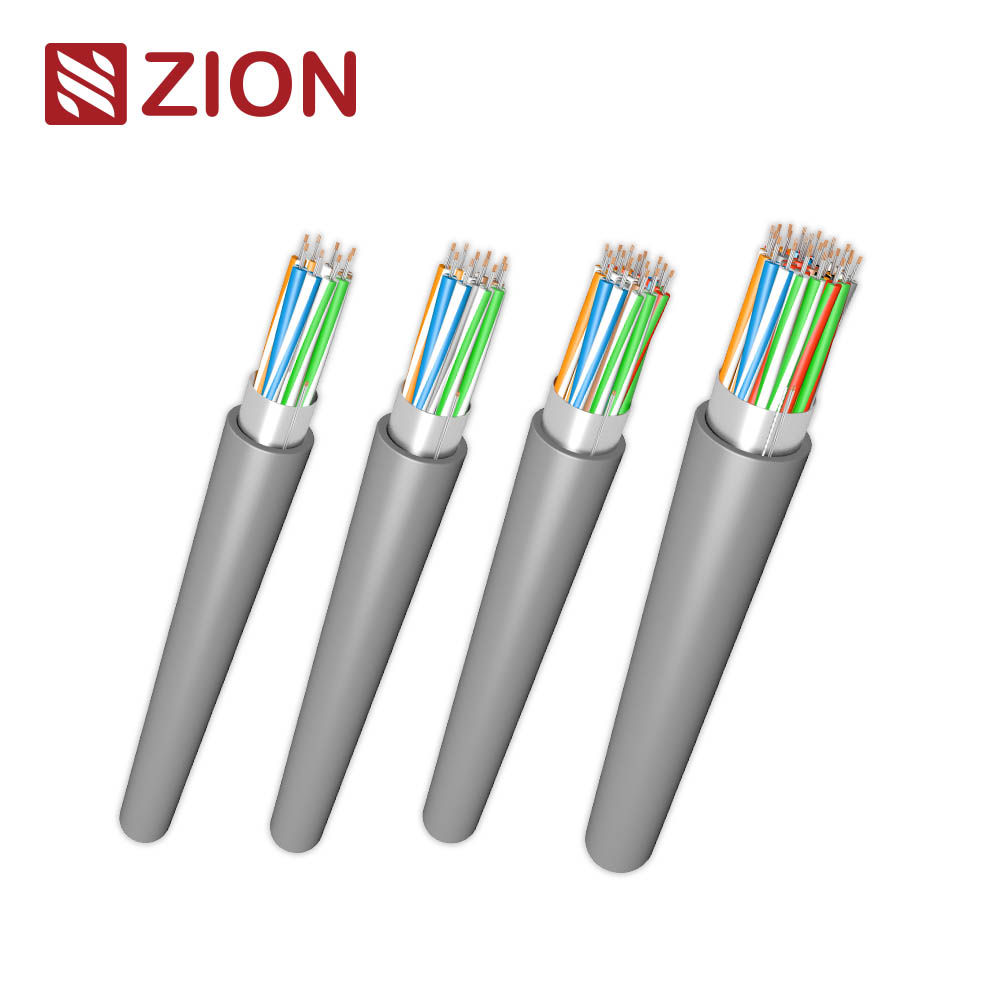

ZION COMMUNICATION RS485/RS232 multi-pair cables are engineered for reliable, low-noise and interference-resistant data transmission in industrial control, building automation, instrumentation, and serial communication systems.
All cables feature 28AWG stranded tinned copper conductors, Foam PE insulation, 100% foil shielding, and a durable PVC jacket, achieving 120Ω characteristic impedance and low capacitance for stable high-speed differential signaling.
28AWG stranded tinned copper conductors ensure flexibility and high signal integrity.
Foam PE (FPE) insulation reduces capacitance and enhances high-frequency performance.
Overall aluminum/polyester foil shield (Beldfoil® type) provides excellent EMI/RFI protection.
Tinned copper drain wire enables reliable grounding and shield termination.
120Ω characteristic impedance, ideal for RS485/RS422/RS232 communication systems.
Low capacitance:
11 pF/ft (36 pF/m) cond-to-cond
20 pF/ft (66 pF/m) cond-to-shield
Voltage rating: 150 V (CL2), 30 V (UL AWM 2919).
Operating temperature: −20 °C to +60 °C.
Available in 4 to 12.5 pairs to match different wiring densities.
RS485 / RS422 / RS232 serial data transmission
PLC, DCS and factory automation networks
Industrial motion control and monitoring
Building management systems (BMS), HVAC networks
Security, access control and alarm systems
Instrumentation, sensors and remote I/O links
| Component | Description |
|---|---|
| Conductor | 28AWG (7/0.127 mm) stranded tinned copper |
| Pair Structure | Twisted pairs with color-coded insulation |
| Insulation | FPE (Foam Polyethylene), low dielectric constant |
| Shielding | Overall aluminum/polyester foil, 100% coverage |
| Drain Wire | 28AWG stranded tinned copper (contact with foil) |
| Jacket | PVC, round, flame retardant |
| Color | Standard: Grey / Chrome PVC (custom colors available) |
| Ripcord | Included for easy jacket stripping |
| Property | Value |
|---|---|
| Conductor DC Resistance | 73.5 Ω/1000 ft (241 Ω/km) @ 20 °C |
| Capacitance (Cond–Cond) | 11 pF/ft (36 pF/m) |
| Capacitance (Cond–Shield) | 20 pF/ft (66 pF/m) |
| Characteristic Impedance | 120 Ω |
| Velocity of Propagation | ≈ 0.78 c |
| Max. Current (per conductor) | 0.9 A @ 30 °C |
| Voltage Rating | 150 V (CL2), 30 V (UL AWM 2919) |
Based on model 73004. Other models share identical electrical performance with differences only in O.D. and weight.
| Property | Typical Value |
|---|---|
| Operating Temperature | −20 °C to +60 °C |
| Stationary Bend Radius | ≥ 10 × cable O.D. (12.5PR ≈ 3.85 in / 97.8 mm) |
| Installation Bend Radius | ≥ 10 × cable O.D. |
| Max. Pull Tension (12.5 pairs) | Approx. 54.6 lbs (24.8 kg) |
| Environmental Suitability | Indoor, dry or damp locations; conduit/raceway compatible |
| SKU | Description | Pairs | Conductor Count | Nominal O.D. | Recommended Use |
|---|---|---|---|---|---|
| 73004 | RS485/232 Cable, 28AWG 4PR, Foil, PVC, 120Ω | 4 | 8 | 0.270 in (6.86 mm) | Small systems, 2–4 channel communication |
| 73005 | RS485/232 Cable, 28AWG 5PR, Foil, PVC, 120Ω | 5 | 10 | 0.280 in (7.11 mm) | Medium-density PLC/BMS networks |
| 73006 | RS485/232 Cable, 28AWG 8PR, Foil, PVC, 120Ω | 8 | 16 | 0.31 in (7.87 mm) | High-density RS485/RS422 multi-drop lines |
| 73012 | RS485/232 Cable, 28AWG 12.5PR, Foil, PVC, 120Ω | 12.5 | 25 | 0.385 in (9.78 mm) | Large control cabinets, long trunk runs |
| Standard / Regulation | Details |
|---|---|
| UL / NEC | UL AWM Style 2919, CL2 (150 V) |
| Flammability | UL VW-1 or equivalent |
| RoHS | Compliant with EU RoHS 2 (2011/65/EU) |
| CE Marking | Meets CE low-voltage requirements |
