RS485 Cable
hellosignal
73201
Power and Control Cables

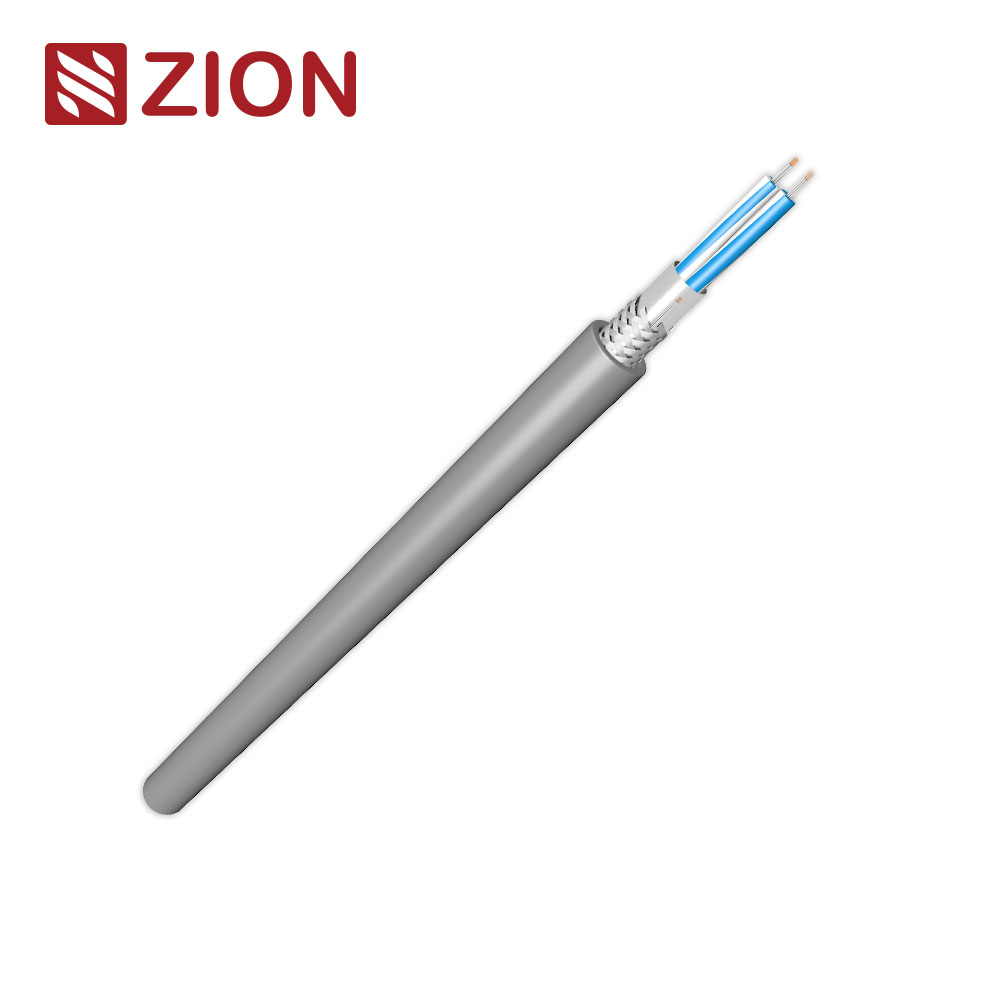

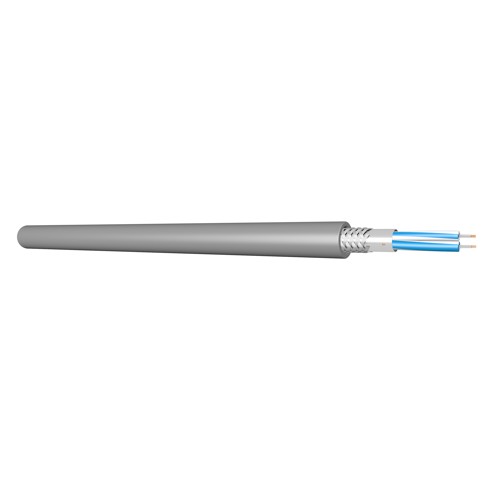

RS485 Cable, 24AWG 1P, Foil+Braid, PVC, 120Ω
SKU: 73201
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks

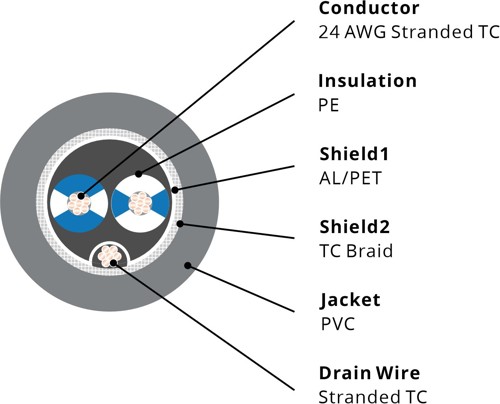

Component | Specification |
Conductor | 1pair, AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Insulation Material | Polyethylene (PE) |
Insulation Thickness | 0.023 in (0.58 mm) |
Insulation Diameter | 0.068 in (1.7 mm) |
Color Code (per pair) | White/Blue & Blue/White |
Or Type 2 | Each Pair: Pure Color & White: |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Shield 2 (Braid) | Tinned Copper Braid, 90% coverage |
Jacket Material | PVC (Polyvinyl Chloride), Color customization. |
Jacket Thickness | 0.035 in (0.89 mm) |
Overall Diameter | 0.232 in (5.89±0.5mm) |
Property | Value |
Conductor DCR | 24 Ohm/1000 ft |
Capacitance (Cond–Cond) | 12.8 pF/ft (42.0 pF/m) |
Capacitance (Cond–Shield) | 23 pF/ft |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 66% |
Max Current (Per Conductor) | 2.1 Amps @ 25°C (10°C temp rise) |
Insertion Loss (1 MHz) | 0.6 dB/100 ft |
Voltage Rating | 300 V (CM), 30 V (UL AWM 2919) |
Property | Value |
Temperature Range | -30°C to +80°C |
Bend Radius (Min.) | 2.5 in (64 mm) installation & operation |
Standard / Regulation | Compliance |
Flammability / Fire Reaction | UL 1685, IEC 60332-1-2 |
NEC / UL Compliance | NEC Article 725, CL2 |
AWM Compliance | UL AWM Style 2919 |
CPR Compliance | EU CPR Euroclass: Eca |
EU Directives | CE Mark, RoHS |
Environmental Suitability | Indoor (Not Riser or Plenum) |
