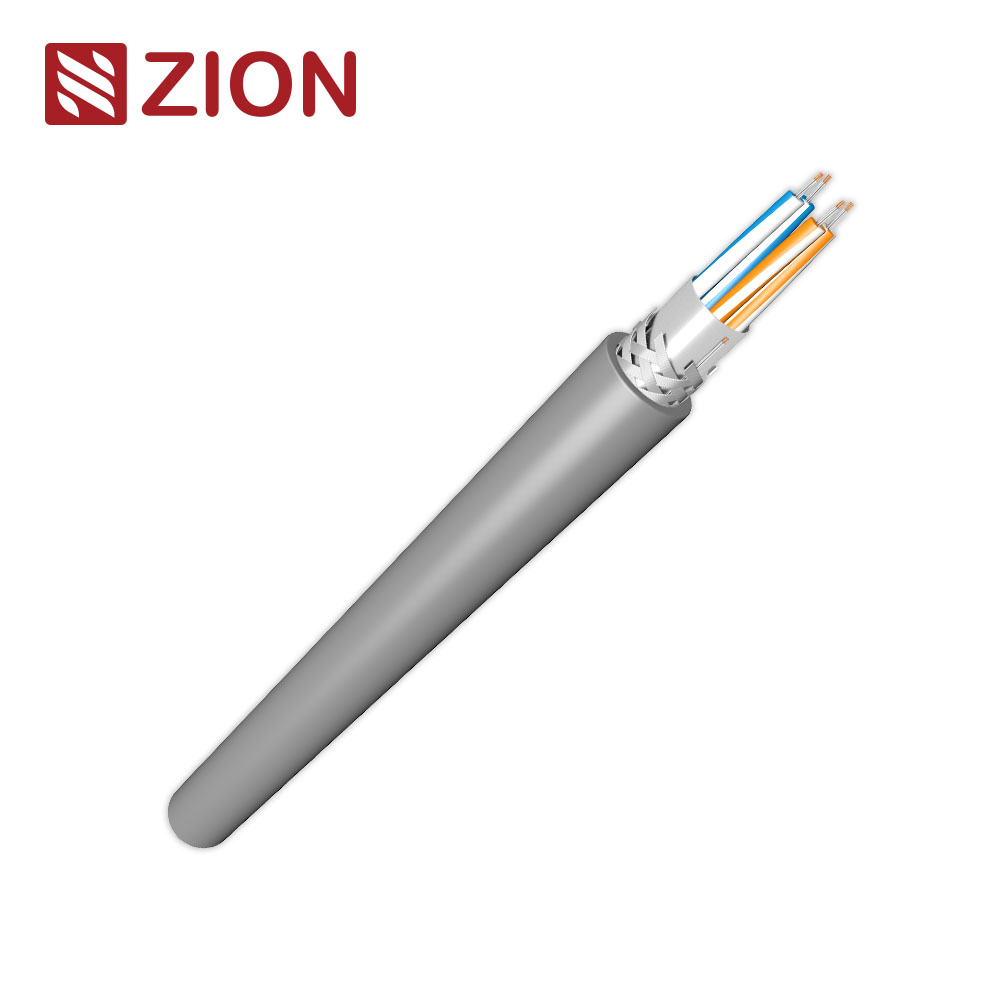

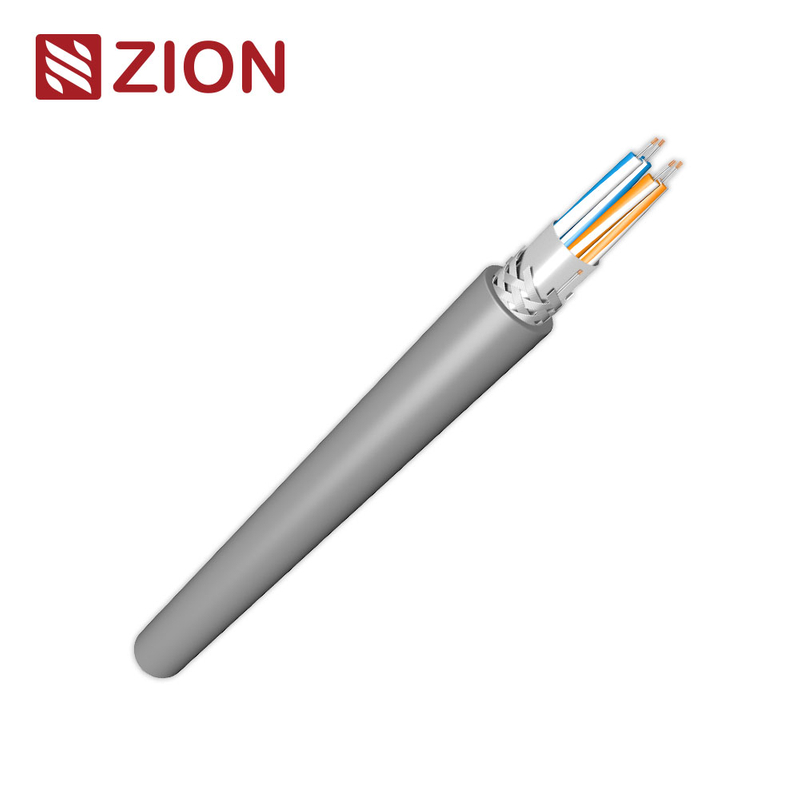

RS485 Cable, 24AWG 2P, Foil+Braid, PVC, 120Ω
SKU: 73202
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks
Component | Specification |

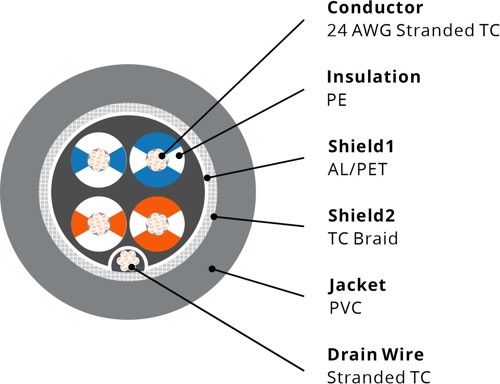

Conductor | 2 Pairs, AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Insulation Material | Polyethylene (PE) |
Insulation Thickness | 0.022 in (0.56 mm) |
Insulation Diameter | 0.068 in (1.7 mm) |
Color Code (per pair) | 1. White/Blue & Blue/White |
Or Type 2 | Each Pair: Pure Color & White: |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Shield 2 (Braid) | Tinned Copper Braid, 90% coverage |
Jacket Material | PVC (Polyvinyl Chloride), Color customization. |
Jacket Thickness | 0.035 in (0.89 mm) |
Overall Diameter | 0.340 in (8.64±0.4mm) |
Property | Value |
Conductor DCR | 24 Ohm/1000 ft |
Capacitance (Cond–Cond) | 12.8 pF/ft (42.0 pF/m) |
Capacitance (Cond–Shield) | 23 pF/ft |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 66% |
Max Current (Per Conductor) | 2.1 Amps @ 25°C (10°C temp rise) |
Insertion Loss (1 MHz) | 0.6 dB/100 ft |
Voltage Rating | 300 V (CM), 30 V (UL AWM 2919) |
Property | Value |
Temperature Range | -30°C to +80°C |
Bend Radius (Min.) | 89 mm (3.5 in) – Stationary & Installation |
Standard / Regulation | Compliance |
Flame Rating | UL 1685, IEC 60332-1-2 |
CPR Compliance | Euroclass: Eca (EN 50575)UKCA Class: Eca |
UL / NEC Compliance | UL CM Listed, Article 800, AWM 2919 |
CEC / c(UL) | CM |
European Directives | CE Mark, RoHS |
Environmental Suitability | Indoor |
