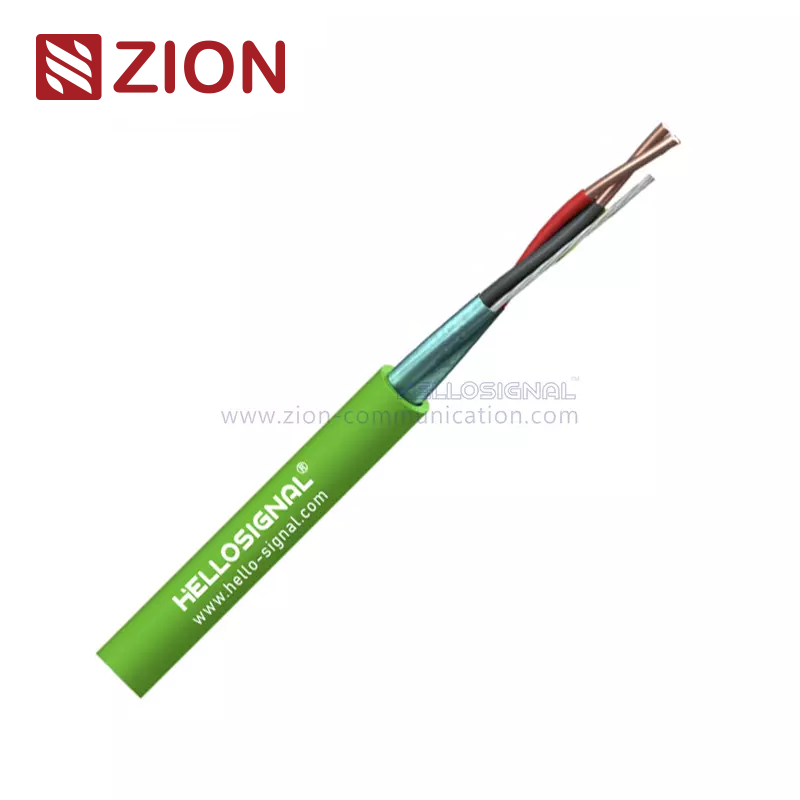

1 Pair 0.8mm Knx cable LSHF GreenTechnical Datasheet Knx cable

  • Knx cable

  • hellosignal

  • NO.KNX1P08

  • Power and Control Cables

Availability:

Product Description

1 Pair LSHF GreenTechnical Datasheet

(NO.KNX1P08)


1 Pair LSHF GreenTechnical Datasheet


Construction

Conductor Material :

Bare Copper,(1/0.8mm)

Pairs Insulation Material :

Polyethylene (PE)

Number of Pairs :

1

Fillers :

Cotton Thread

Overall Tape :

Polyester

Drain Wire :

Tinned Copper (7/0.16mm)

Overall Screen :

Overall Aluminium Foil (100% Coverage)

Sheath Material :

Low Smoke Halogen Free (LSHF)

Sheath Colour :



Green

Core Identification :

Red, Black

Cross Section


1 Pair LSHF GreenTechnical Datasheet 2

Application Support

Used for lighting control, blind control, air-conditioning, heating and security systems. ZION
Certified products will communicate with each other to ensure the smooth functioning and easy
expansion of systems and creates a comfortable, efficient & safe environments.

 Certification

Electrical Characteristics

Nominal Conductor Resistance :

< 38.5 Ω/km

Insulation Resistance :

> 200MΩ.M

Voltage Rating :

450/750V Applies to CE marked FS C branded stock only

Test Voltage :

 2.5kV for 5 minutes

Physical Characteristics

Overall Diameter :

5.6 ± 0.2mm

Min Bend Radius :

10 x OD

Temperature Rating :

-10°C to +70°C

Weight :

40 kg/km

Standards

Flame Retardant :

 BS EN 60332-1-2

Low Smoke Generation :

 BS EN 61034-2

Halogen Gas Emission :

 BS EN 60754-1&2

RoHS3 Compliant :

 Yes

CE Compliant :

 LVD (2014/35/EU), CPR (305/2011)

CPR Classification  :

 Eca (EN50575:2014+A1:2016)

Order Informations

Marking

HELLOSIGNAL NO.KNX1P08 KNX CABLE LSZH 001--300M

Inner Package

300M/Wooden Spool

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
