Optical Fiber Hardware Products Catalog
Mission: Focus on customer needs to provide competitive
signal & low-voltage power transmission products and services,
continue to create maximum value for customers !​​​​​​​

 inquiry now


Get the price, packing, free sample and more now!

 Optical Fiber Hardware Products

FTTH Stainless Steel Wire Clamp


Product
Name

SKU

Product

Size

Material (simplified)

Material
(Full Name)

Bearing
tensile

Weight
/PC

Suit Cable

Applicable
Cable diameter

Packing
Details

single box quantity

FTTH stainless
steel wire
clamp 01

ZCSSC-01



200*23*17
mm

201.304 SS

201 stainless steel
304 stainless steel

2.0 KN

45g



Φ2-8mm

Carton Size: 40*30*26cm
Weight: 23.2KG

500/Carton

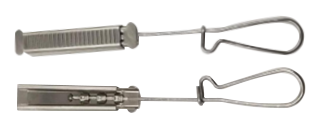

FTTH stainless
steel wire
clamp 02

ZCSSC-02



200*23*17
mm

201.304 SS

201 stainless steel
304 stainless steel

1.2KN

48g



Φ2-8mm

Carton Size: 40*30*26cm
Weight: 24.8KG

500/Carton

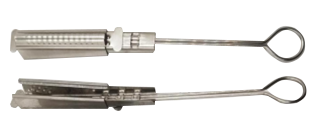

FTTH stainless
steel wire
clamp 03

ZCSSC-03



210*24*20
mm

201.304 SS

201 stainless steel
304 stainless steel

2.0 KN

49g



Φ2-8mm

Carton Size: 40*30*26cm
Weight: 25.2KG

500/Carton

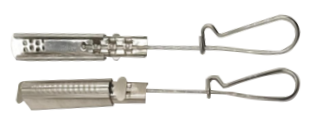

FTTH stainless
steel wire
clamp 04

ZCSSC-04



210*24*20
mm

201.304 SS

201 stainless steel
304 stainless steel

1.2KN

47g



Φ2-8mm

Carton Size: 40*30*26cm
Weight: 24.2KG

500/Carton


FTTH Combination Clamp


Product
Name

SKU

Product

Size

Material (simplified)

Material
(Full Name)

Bearing
tensile

Weight
/PC

Suit Cable

Applicable
Cable diameter

Packing
Details

single box
quantity

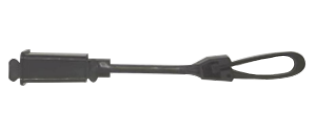

FTTH
nylon cable
clamp 01

ZCPAC-01



230*27*27
mm

PA6 or PA66

Polyamide 6
Polyamide 66

0.8KN

31g



Φ2-8mm

Carton Size: 40*31*31cm
Weight: 8.5KG

250/Carton

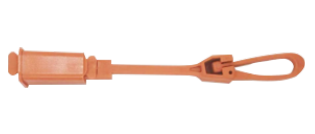

FTTH
nylon cable
clamp 02

ZCPAC-02



230*27*27
mm

PA6 or PA66

Polyamide 6
Polyamide 66

0.8KN

44g



Φ2-8mm

Carton Size: 40*31*31cm
Weight: 12KG

250/Carton

FTTH
nylon cable
clamp 03

ZCPAC-03



150*110*41mm

PA6 or PA66

Polyamide 6
Polyamide 66

1.0 KN

52g



Φ3-6mm

Carton Size: 55*41*25cm
Weight: 14.5KG

250/Carton

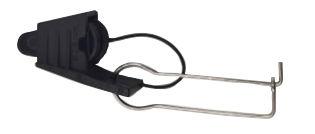

FTTH
combination
clamp 01

ZCSPC-01



150*100*25
mm

201. 304 SS
PA6

201 stainless steel
304 stainless steel
Polyamide 6

0.6 KN

32g



Φ2-5mm

Carton Size: 40*30*26cm
Weight: 10KG

300/Carton

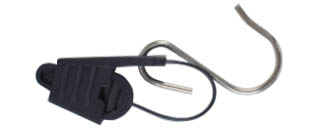

FTTH
combination
clamp 02

ZCSPC-02



150*60*25
mm

201. 304 SS
PA6

201 stainless steel
304 stainless steel
Polyamide 6

1.5 KN

42g



Φ2-5mm

Carton Size: 40*30*26cm
Weight: 13KG

300/Carton

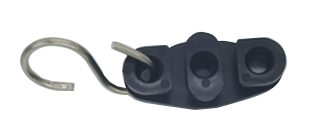

FTTH
combination
clamp 03

ZCSPC-03



125*35*33
mm

201. 304 SS
PA6

201 stainless steel
304 stainless steel
Polyamide 6

1.2 KN

35g



Φ2-5mm

Carton Size: 40*30*30cm
Weight:  14.8KG

400/Carton

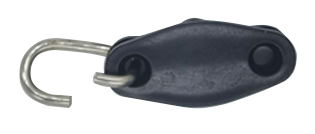

FTTH
combination
clamp 04

ZCSPC-04



110*35*30
mm

201. 304 SS
PA6

201 stainless steel
304 stainless steel
Polyamide 6

1.2 KN

36g



Φ2-5mm

Carton Size: 40*30*30cm
Weight:  15.2KG

400/Carton

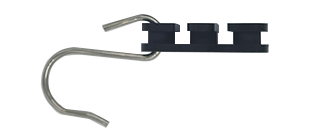

FTTH
combination
clamp 05

ZCSPC-05



140*35*60
mm

201. 304 SS
PA6

201 stainless steel
304 stainless steel
Polyamide 6

1.2 KN

38g



Φ2-5mm

Carton Size: 40*30*30cm
Weight:  14KG

350/Carton

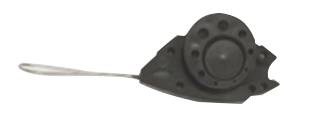

FTTH
combination
clamp 06

ZCSPC-06



125*20*35mm

PA6 +201SS

Polyamide 6
+201 stainless steel

0.5 KN

28g



Φ2-5mm

Carton Size: 38*30*30cm
Weight: 13.6KG

500/Carton

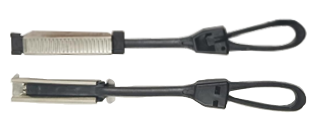

FTTH
combination
clamp 07

ZCSPC-07



230*20*17
mm

201 SS+PA6

201 stainless steel
+Polyamide 6

0.9 KN

39g



Φ2-8mm

Carton Size: 40*30*26cm
Weight: 20KG

500/Carton

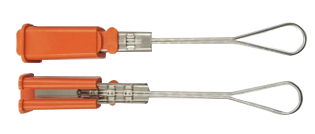

FTTH
combination
clamp 08

ZCSPC-08



200*22*27
mm

201 SS+PA6

201 stainless steel
+Polyamide 6

0.9 KN

42g



Φ2-8mm

Carton Size: 40*30*26cm
Weight: 21.8KG

500/Carton

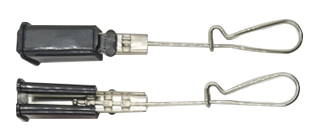

FTTH
combination
clamp 09

ZCSPC-09



200*22*27
mm

201 SS+PA6

201 stainless steel
+Polyamide 6

0.9 KN

38g



Φ2-8mm

Carton Size: 40*30*26cm
Weight: 19.6KG

500/Carton

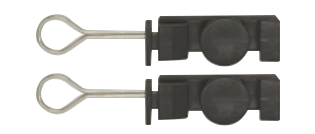

FTTH
combination
clamp 10

ZCSPC-10



130*20*15mm

PA6 or ABS
201SS

Polyamide 6 or Acrylonitrile Butadiene Styrene
201 stainless steel

0.6 KN

25g



Φ2-8mm

Carton Size: 40*30*25cm
Weight: 13.5KG

500/Carton

FTTH
combination
clamp 11

ZCSPC-11



130*20*15mm

PA6 or ABS
201SS

Polyamide 6 or Acrylonitrile +Butadiene Styrene
+201 stainless steel

0.6 KN

25g



Φ2-8mm

Carton Size: 40*30*25cm
Weight: 13.5KG

500/Carton

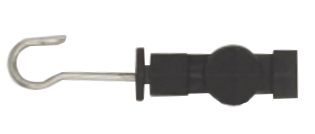

FTTH
combination
clamp 12

ZCSPC-12



130*25*15
mm

PA6 +201SS

Polyamide 6
+201 stainless steel

0.6 KN

34g



Φ2-8mm

Carton Size: 40*30*25cm
Weight: 17.8KG

500/Carton

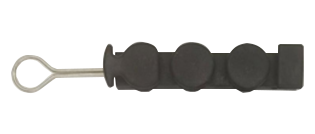

FTTH
combination
clamp 13

ZCSPC-13



180*20*25mm

PA6 +201SS

Polyamide 6
+201 stainless steel

1.0 KN

67g



Φ2-10mm

Carton Size: 38*30*30cm
Weight: 14KG

200/Carton


Tension Clamp


Product
Name

SKU

Product

SIZE

Material (simplified)

Material
(Full Name)

Bearing
tensile

Weight
/PC

Suit Cable

Applicable
Cable diameter

Packing
Details

single box
quantity

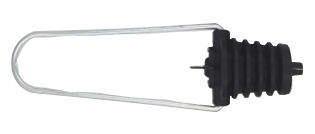

Tension
clamp 01

ZCPGC-01



180*65*35
mm

PA6 or PA66
GS

Polyamide 6 or Polyamide 66
 +Galvanized steel

1.1 KN or 2.5KN

114g



Φ2-10mm

Carton Size: 41*37*35cm
Weight: 23.5KG

200/Carton

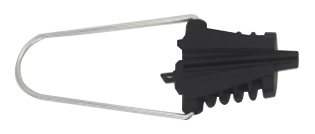

Tension
clamp 02

ZCPGC-02



220*65*35
mm

PA6 or PA66
GS

Polyamide 6 or Polyamide 66
+ Galvanized steel

1.1 KN or 1.5KN

81g



Φ2-10mm

Carton Size: 41*37*35cm
Weight: 18KG

200/Carton

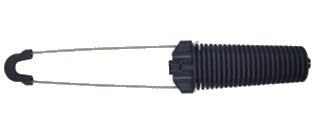

Tension
clamp 03

ZCPGC-03



390*65*40
mm

PA6 or PA66
201 SS

Polyamide 6 or Polyamide 66
+201 stainlesssteel

3.5 KN

190g



Φ4-12mm

Carton Size: 38*29*26cm
Weight: 10KG

50/Carton

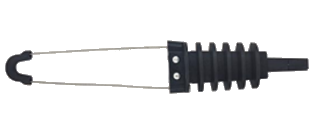

Tension
clamp 04

ZCPGC-04



360*65*40m
m

PA6 or PA66
201 SS

Polyamide 6 or Polyamide 66
+201 stainless steel

3.5 KN

132g



Φ5-8mm

Carton Size: 40*30*30cm
Weight: 14KG

100/Carton

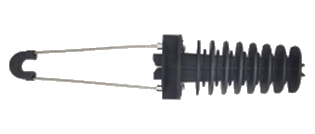

Tension
clamp 05

ZCPGC-05



420*90*4
5mm

PA6 or PA66
201 SS

Polyamide 6 or Polyamide 66
+201 stainless steel

6 KN

370g



Φ6-12mm

Carton Size: 55*41*25cm
Weight: 21KG

50/Carton

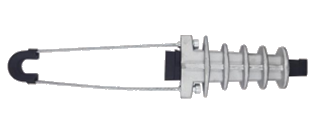

Tension
clamp 06

ZCPGC-06



385*80*40
mm

PA6 or PA66
201 SS,AL

Polyamide 6 or Polyamide 66
+stainless steel ,Aluminium

15 KN

360g



Φ8-14mm

Carton Size: 38*30*30cm
Weight: 19KG

50/Carton

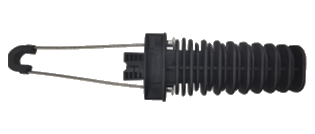

Tension
clamp 07

ZCPGC-07



440*95*45
mm

PA6 or PA66
201 SS

Polyamide 6 or Polyamide 66
+201 stainless steel

6 KN

498g



Φ8-15mm

Carton Size: 55*41*25cm
Weight: 26.5KG

50/Carton


Suspension Clamp


Product
Name

SKU

Product

Size

Material (simplified)

Material
(Full Name)

Bearing
tensile

Weight
/PC

Suit Cable

Applicable
Cable diameter

Packing
Details

single box
quantity

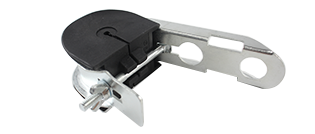

Suspension
clamp 01

ZCTGC-01



135*80*35mm

TPR+GS

Thermo-Plastic-Rubbermaterial
+Galvanized steel

3.8 KN

161g



Φ5-8mm

Carton Size: 40*30*30cm
Weight: 25KG

150/Carton

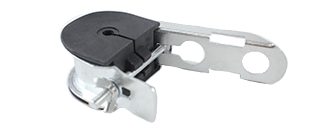

Suspension
clamp 02

ZCTGC-02



135*80*35mm

TPR+GS

Thermo-Plastic-Rubbermaterial
+Galvanized steel

3.8 KN

158g



Φ8-12mm

Carton Size: 40*30*30cm
Weight: 25KG

150/Carton

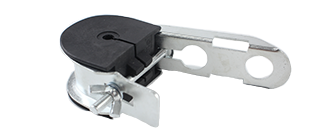

Suspension
clamp 03

ZCTGC-03



135*80*35mm

TPR+GS

Thermo-Plastic-Rubbermaterial
+Galvanized steel

3.8 KN

158g



Φ10-15mm

Carton Size: 40*30*30cm
Weight: 25KG

150/Carton

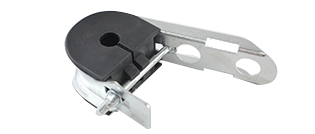

Suspension
clamp 04

ZCTGC-04



135*80*35m
m

TPR+GS

Thermo-Plastic-Rubbermaterial
+Galvanized steel

3.8 KN

156g



Φ15-20mm

Carton Size: 40*30*30cm
Weight: 24KG

150/Carton


Hoop Retractor


Product
Name

SKU

Product

Size

Material (simplified)

Material
(Full Name)

Bearing
tensile

Weight
/PC

Suit Cable

Applicable
Cable diameter

Packing
Details

single box
quantity

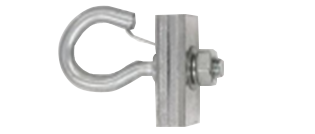

Hoop
Retractor 01

ZCGSC-01



75*31*60 mm

GS+AL

Galvanized steel+Aluminium

1.0 KN

119g



wall or pole

Carton Size: 38*29*26cm
Weight: 25KG

200/Carton

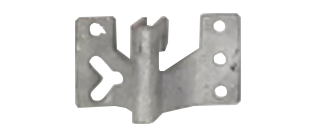

Hoop
Retractor 02

ZCGSC-02



62*30*35 mm

Galvanized steel

Galvanized steel

1.1 KN

42g



wall or pole

Carton Size: 38*30*30cm
Weight:  15.6KG

400/Carton

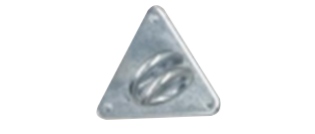

Hoop
Retractor 03

ZCGSC-03



45*40*45 mm

Galvanized steel

Galvanized steel

1.2 KN

53g



wall or pole

Carton Size: 38*30*20cm
Weight: 27.6 KG

500/Carton

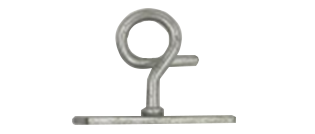

Hoop
Retractor 04

ZCGSC-04



71*27*60 mm

Galvanized steel

Galvanized steel

1.5 KN

87g



wall or pole

Carton Size: 38*30*17cm
Weight: 18KG

200/Carton

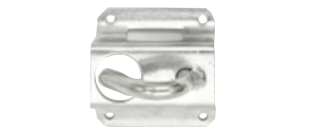

Hoop
Retractor 05

ZCGSC-05



66*66*55 mm

Galvanized steel

Galvanized steel

2.0 KN

116g



wall or pole

Carton Size: 38*29*26cm
Weight: 24KG

200/Carton

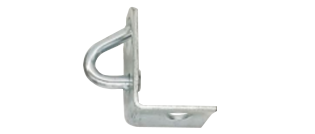

Hoop
Retractor 06

ZCGSC-06



75*40*80 mm

Galvanized steel

Galvanized steel

2.5 KN

140g



wall or pole

Carton Size: 38*30*30cm
Weight: 28KG

200/Carton

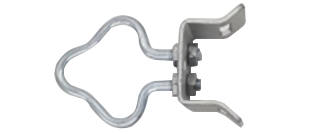

Hoop
Retractor 07

ZCGSC-07



120*70*40 mm

Galvanized steel

Galvanized steel

4.5 KN

182g



wall or pole

Carton Size: 38*30*30cm
Weight: 19KG

100/Carton


Aluminum Hoop


Product
Name

SKU

Product

Size

Material (simplified)

Material
(Full Name)

Bearing
tensile

Weight
/PC

Suit Cable

Applicable
Cable diameter

Packing
Details

single box
quantity

Aluminum
hoop 01

ZCALC-01



165*115*35 mm

Aluminium

Aluminium

8.0 KN

190g



wall or pole

Carton Size: 38*30*30cm
Weight: 14KG

70/Carton

Aluminum
hoop 02

ZCALC-02



120*113*45 mm

Aluminium

Aluminium

8.5 KN

189g



wall or pole

Carton Size: 42*28*23cm
Weight: 10.5KG

50/Carton

Aluminum
hoop 03

ZCALC-03



115*105*65 mm

Aluminium

Aluminium

9.5 KN

183g



wall or pole

Carton Size: 38*30*30cm
Weight: 10KG

50/Carton
