Multicore Circular Speaker Cable (MCSC2×1.5-PVC)

Certificates: ISO9001

More >>
Multicore Circular Speaker Cable (MCSC2×1.5-LSHF)

Certificates: ISO9001

More >>
Multicore Circular Speaker Cable (MCSC4×1.5-PVC)

Certificates: ISO9001

More >>
Multicore Circular Speaker Cable (MCSC4×1.5-LSHF)

Certificates: ISO9001

More >>

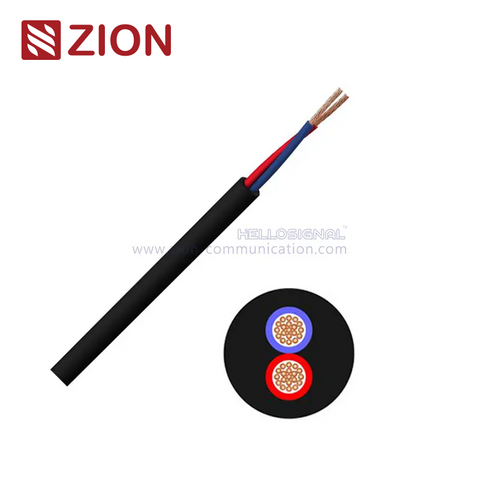

Multicore Circular Speaker Cable (MCSC2×2.5-PVC)

Certificates: ISO9001

More >>
Multicore Circular Speaker Cable (MCSC2×2.5-LSHF)

Certificates: ISO9001

More >>

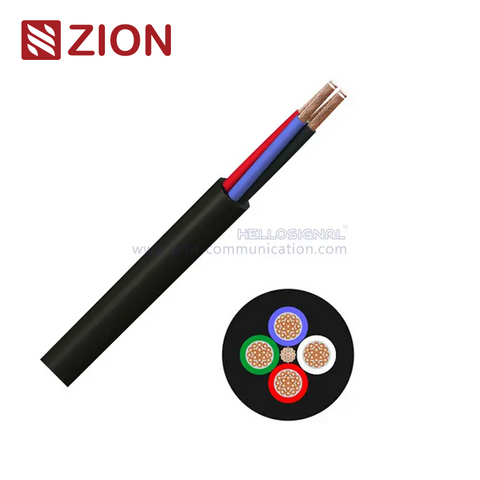

Multicore Circular Speaker Cable (MCSC4×2.5-PVC)

Certificates: ISO9001

More >>
Multicore Circular Speaker Cable (MCSC4×2.5-LSHF)

Certificates: ISO9001

More >>

1
2
»
Turn to Page Go

ZION | Voice, Audio & Video Cable

Multicore Circular Speaker Cables

Multicore circular speaker cables are designed for fixed speaker wiring in public buildings, commercial AV systems, and distributed audio installations where clean routing, durable round construction, and dependable copper transmission matter.

AV ContractorsSystem IntegratorsPublic Address ProjectsOEM BuyersBuilding Audio SystemsDistributors

Request Datasheet / Sample

Available in 2-core and 4-core constructions for speaker distribution and multi-channel runs.
PVC and low-smoke halogen-free jacket options support standard commercial or stricter indoor fire-safety requirements.
Typical listed sizes cover 1.5 mm², 2.5 mm², and extended 4.0 mm² options for different distance and power demands.

Contents

What They Are
Available Product Range
Key Features
Representative Technical Reference
Applications
How to Choose
FAQ
Conclusion

■ What They Are

Multicore circular speaker cables are round-profile audio cables built for fixed installation speaker wiring where multiple insulated copper conductors must be protected inside a durable outer sheath. Compared with simpler parallel speaker wire, multicore circular designs are often preferred when installers need cleaner conduit routing, better mechanical protection, easier pulling in building pathways, and more organized termination in public address, background music, and commercial AV systems.

For most projects, the decision comes down to three points: how many speaker lines you need in one cable run, what conductor size the power loss budget allows, and whether the project requires standard PVC or a low-smoke halogen-free jacket for indoor public spaces.

■ Available Product Range

Model Family	Core Count	Conductor Size	Jacket	Best For
MCSC2×1.5	2 Core	1.5 mm²	PVC / LSHF	General fixed speaker runs
MCSC4×1.5	4 Core	1.5 mm²	PVC / LSHF	Two circuits in one cable
MCSC2×2.5	2 Core	2.5 mm²	PVC / LSHF	Longer runs or higher load
MCSC4×2.5	4 Core	2.5 mm²	PVC / LSHF	Multi-channel commercial audio wiring
MCSC2×4.0	2 Core	4.0 mm²	PVC / Extended Options	Higher current and longer distance runs
MCSC4×4.0	4 Core	4.0 mm²	PVC / Extended Options	Heavy-duty multi-speaker distribution

Practical note: For category pages, buyers usually compare this family by core count, cross-sectional area, and jacket type first. That gives a faster buying path than listing every SKU without a decision framework.

■ Key Features

99.999% Oxygen-Free Bare Copper

Supports stable signal and power transmission for fixed speaker installations with low conductor resistance.

Round Multicore Construction

Easier to pull through conduit and building pathways than flat cable in many permanent installation scenarios.

PVC and Low-Smoke Halogen-Free Options

Lets project teams balance standard commercial use with stricter indoor fire-safety and smoke performance requirements.

2-Core and 4-Core Choices

Suitable for single speaker circuits or multiple channels combined into one round cable run.

Field reality: The biggest sizing mistake in speaker cable selection is choosing based only on “speaker cable” as a generic label. In real projects, conductor size and routing distance matter far more than the name of the cable category.

■ Representative Technical Reference

The table below is a category-level reference built from representative listed models. Final values should always follow the exact SKU datasheet before quotation or project release.

Conductor Size	Typical Strand	2-Core OD	4-Core OD	Nominal Conductor Resistance	Voltage Rating	Min. Bend Radius	Temperature
1.5 mm²	30/0.25 mm	7.0 ± 0.2 mm	8.0 ± 0.2 mm	< 12.5 Ω/km	450/750V	15 × OD	-20°C to +70°C
2.5 mm²	50/0.25 mm	8.0 ± 0.2 mm	10.0 ± 0.2 mm	< 8.0 Ω/km	450/750V	15 × OD	-20°C to +70°C
4.0 mm²	56/0.30 mm	10.5 ± 0.2 mm	11.5 ± 0.2 mm	< 5.0 Ω/km	450/750V	15 × OD	-20°C to +70°C

Item	Typical PVC Models	Typical Low-Smoke Models
Conductor Material	99.999% oxygen-free bare copper	99.999% oxygen-free bare copper
Insulation / Sheath	PVC / PVC	Low-smoke halogen-free / low-smoke halogen-free
Flame Retardant	BS EN 60332-1-2	BS EN 60332-1-2
Smoke Performance	Standard commercial indoor use	Low smoke generation, halogen gas emission referenced
Compliance	RoHS3, CE, CPR Eca (typical listed models)	RoHS3, CE, CPR Eca (typical listed models)

■ Applications

Public Address Systems

Ceiling speaker, wall speaker, and zone speaker wiring in schools, offices, airports, and stations.

Commercial AV Projects

Conference rooms, hotels, retail spaces, and integrated building audio systems that need neat fixed wiring.

Entertainment Venues

Cinemas, auditoriums, halls, and event spaces where multiple speaker lines may be routed together.

When to choose this family: Choose multicore circular speaker cable when your project is a fixed indoor installation, the routing path benefits from a protected round cable, and you want either multiple speaker circuits or a cleaner conduit-friendly profile than basic flat speaker wire.

■ How to Choose

Project Need	Recommended Direction	Why
Standard indoor commercial installation	PVC jacket	Cost-effective for general building audio projects where PVC is permitted.
Public building with stricter smoke requirements	Low-smoke halogen-free jacket	Better fit for indoor environments where smoke and halogen concerns matter.
Single speaker circuit	2-core	Simpler termination and lower cable bulk.
Two circuits or paired channel runs	4-core	Reduces the number of separate cable pulls and keeps routing cleaner.
Short to moderate run with normal load	1.5 mm²	A practical entry level for many fixed background music or standard speaker links.
Longer run or lower voltage drop target	2.5 mm²	Lower conductor resistance improves power delivery over longer distances.
Higher load or extended heavy-duty line	4.0 mm²	Suitable when the project demands extra copper cross-section and lower resistance.

■ FAQ

What is the difference between 2-core and 4-core speaker cable?

A 2-core cable carries one speaker circuit, while a 4-core cable can support two circuits or multi-channel routing in one jacket.

When should I choose PVC instead of low-smoke halogen-free?

Choose PVC for standard installations where it is acceptable by project specification. Choose low-smoke halogen-free when indoor safety requirements or smoke concerns are stricter.

How do I select 1.5 mm², 2.5 mm², or 4.0 mm²?

Selection depends mainly on run length, load, and acceptable voltage drop. As distance and load rise, larger conductor size is usually the safer engineering choice.

Are these cables suitable for fixed building installation?

Yes. This family is positioned for fixed installation speaker linking in public buildings and similar commercial indoor environments.

Can you support OEM or custom project requirements?

Yes. For project inquiries, it is best to provide conductor size, core count, jacket requirement, application environment, and quantity so the correct model can be matched faster.

■ Conclusion

Multicore circular speaker cables are a practical solution for fixed commercial and public-building audio systems that need protected round construction, multiple conductor options, and flexible jacket selection. For most buyers, the right choice starts with three checks: core count, conductor size, and whether the installation requires standard PVC or a low-smoke halogen-free construction.

If you are selecting for an actual project, compare routing method, distance, amplifier load, building code requirements, and termination preferences before choosing the final model.

Need the right speaker cable model for your project?

Share your required core count, conductor size, jacket type, installation environment, and project quantity. Zion can help match the suitable multicore circular speaker cable configuration.

Request Datasheet / Quote Back to Top

Product Categories

Professional OEM - Zion Communication

Request a Quote
