Sensor, Actuator, Control and Flex Cable Selection

■1) Category Overview

Sensor and actuator cables connect field devices to PLCs, controllers, transmitters and monitoring units. A sensor usually sends a measured signal toward the control system, while an actuator receives a command and may also require operating power. The right construction therefore depends on signal level, current demand, cores or pairs, connector interface, route and environmental stress—not simply on whether the device is called a sensor or an actuator.

ZION's confirmed category options cover PVC for fixed routing and slight movement, unshielded PUR for flexible routing and wear resistance, shielded PUR for signal integrity in electrically noisy locations, and hydrometry / air guider cable for liquid-level and underground monitoring. Related projects may instead require a dedicated continuous flex control cable, VFD cable or instrumentation cable; these functions should not be treated as interchangeable without checking the equipment and installation requirements.

■2) ZION Sensor & Actuator Cable Options

The options below retain the verified product information supplied in the original category content. Project suitability still depends on the exact model, installation and approval requirements.



Fixed Installation

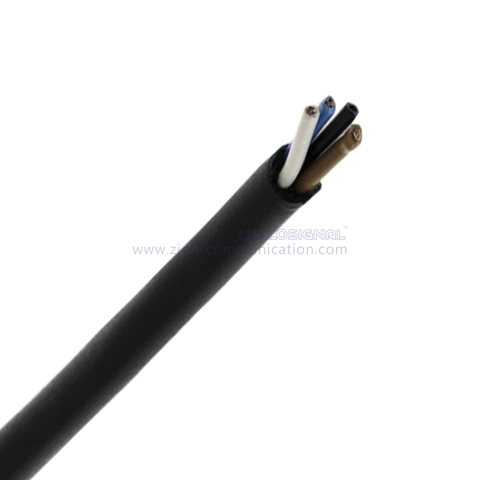

PVC Sensor & Actuator Cable

A cost-conscious option for fixed installation and slight movement, with the supplied product data listing oil resistance, IEC 60332-1 fire resistance and UV resistance.

300 V · -40℃ to 80℃ · 10 × OD bend radius

View PVC Product



Flexible Routing

PUR Sensor & Actuator Cables — Unshielded

For moving equipment where abrasion resistance and anti-hydrolysis performance matter. Confirm dynamic cycle and drag-chain approval separately for repeated flexing.

PUR jacket · -5℃ to 70℃ · 15 × OD bend radius

View Unshielded PUR Product



EMI Protection

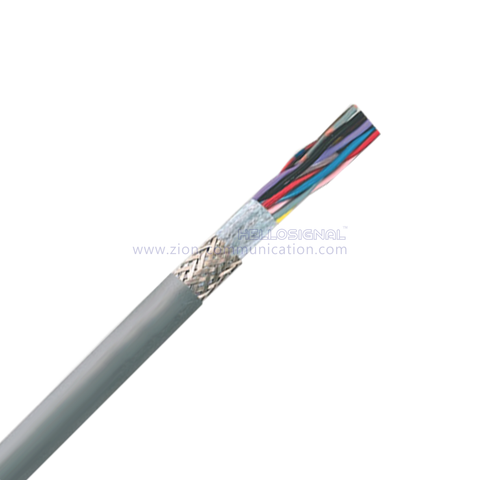

PUR Sensor & Actuator Cables — Shielded

Designed for industrial signal transmission near electromagnetic noise, using the supplied AL/Mylar screen, tinned-copper braid and drain-wire construction.

PUR jacket · AL/Mylar screen · TC braid

View Shielded PUR Product



Level Monitoring

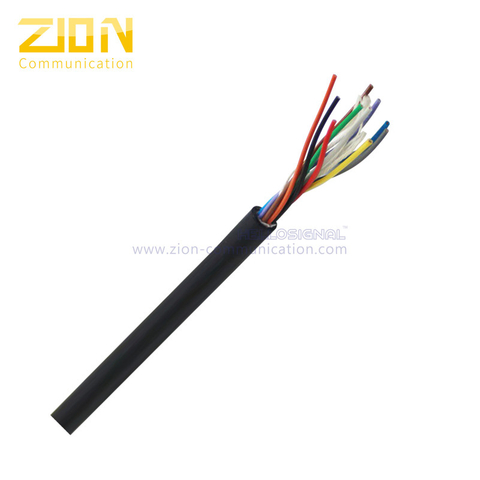

FP / Air Guider / Hydrometry Cable

Combines air pipe, power cable, signal cable and protective layers for liquid-level transmitters and underground oil, water or gas measurement.

Air guide · power + signal · waterproof structure

View Hydrometry Product

■3) How to Select the Right Industrial Cable

1. Define circuit function. Record whether the cable carries a sensor signal, actuator command or power, analogue instrumentation, general control, encoder feedback, or inverter-to-motor output.

2. Classify movement. Identify fixed installation, occasional flexing, torsion, robotic motion or continuous travel in a drag chain. State bend radius, travel distance, speed, acceleration and required cycle life.

3. Assess EMI. Note nearby motors, drives, switching devices and power conductors. If shielding is required, specify shield type, coverage, drain wire and termination method.

4. Record exposure. Name the oils, coolants or chemicals, expected contact method and duration, operating temperature, UV, moisture and abrasion conditions.

5. Verify electrical and approval data. Confirm conductor count and size, voltage, current, capacitance or impedance where relevant, applicable standard, fire or environmental rating, connector pinout and test evidence.

■4) Sensor, Control, Instrumentation and VFD Cable Comparison

A search for sensor vs actuator cable often starts with the connected device, but cable selection is better based on circuit and mechanical requirements. The table clarifies the usual design focus without claiming that one construction fits every installation.

■5) Typical Application Guidance

■6) Frequently Asked Questions

■7) RFQ Checklist

A useful RFQ converts application language into measurable values and named evidence. Include the following information so the proposed construction can be reviewed before price and delivery are compared.

• Application and routeEquipment, circuit function, route length, topology, installation method, nearby power or noise sources and environment.

• Electrical constructionVoltage, current, conductor size, core / pair / triad count, capacitance or impedance if relevant, shield and grounding.

• Motion requirementsFixed or moving duty, minimum bend radius, travel, speed, acceleration, torsion and target cycle life.

• Jacket and exposurePVC, PUR or required material; temperature; UV; moisture; abrasion; named oils, coolants or chemicals; exposure duration.

• Interfaces and dimensionsConnector type, pinout, accessories, finished diameter or dimensional limits, unit length and tolerances.

• Standards and evidenceApplicable standard, exact certificate scope, fire or environmental rating, sample approval, routine tests and report format.

• Identification and traceabilityCable printing, labels, lot identification, inspection documents and batch traceability expectations.

• Commercial deliveryQuantity, reel or spool length, packaging, destination, required documents and delivery window.
