PLENUM COAXIAL CABLE MANUFACTURER

Mission: Focus on customer needs to provide competitively
signal & low-voltage power transmission products and services,
continue to create maximum value for customers !

PLENUM COAXIAL CABLE CATEGORY

Product Name	Inquiry	Add to basket
NO.7100009 RG6 S 60% CMP	Inquire	Add to Basket

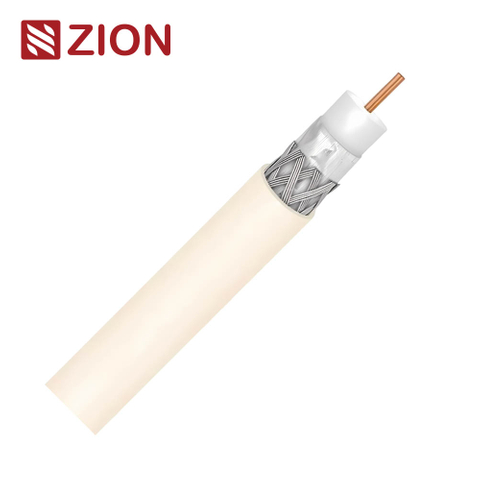

NO.7100010 RG6 S 90% CMP	Inquire	Add to Basket

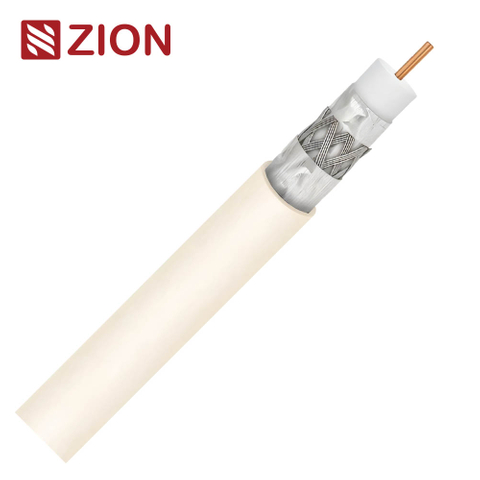

NO.7100025 RG6 Tri 77% PVC CMP	Inquire	Add to Basket
NO.7100035 RG6 Q PVC CMP	Inquire	Add to Basket
NO.7100044 RG6 S Dual 60% PVC CMP	Inquire	Add to Basket
NO.7100051 RG6 Q Dual PVC CMP	Inquire	Add to Basket
NO.7100048 RG6 Tri Dual PVC CMP	Inquire	Add to Basket

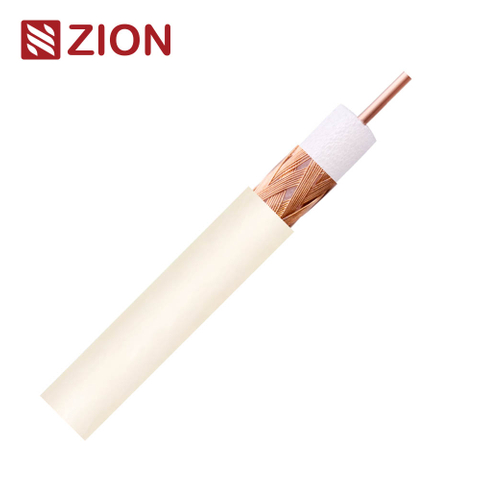

NO.7100111 RG59 BC S 95% BC PVC-CMP	Inquire	Add to Basket
NO.7100112 RG59 BC S 95% CCA PVC-CMP	Inquire	Add to Basket
NO.7100163 RG59 BC 95% BC PVC CMP	Inquire	Add to Basket
NO.7100166 RG59 BC 95% CCA PVC CMP	Inquire	Add to Basket

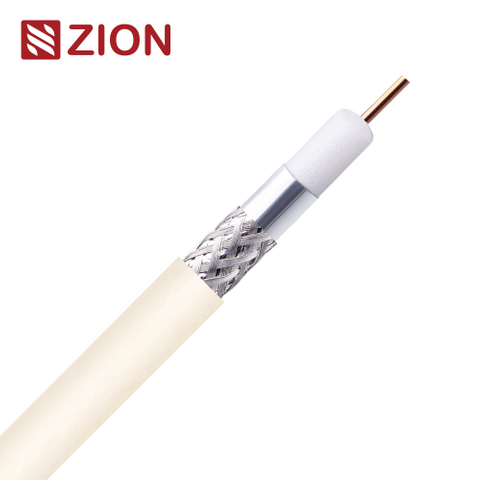

NO.7100210 RG11 S 60% PVC CMP	Inquire	Add to Basket

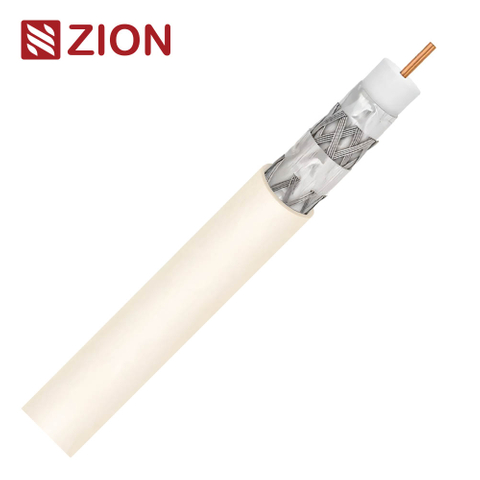

NO.7100246 RG11 Q PVC CMP	Inquire	Add to Basket

What is Plenum ?

Plenum, (pronounced PLEH-nuhm),refers to a specific area within a building, primarily used for air circulation. This space is commonly located between the building's roof and a drop-down ceiling or, in some cases, beneath the floor. Its main purpose is to accommodate HVAC (Heating, Ventilation, and Air Conditioning) systems, functioning similarly to the lungs of a building. TheHVAC equipment in the plenum space is responsible for drawing air in through vents and distributing it back into the building through ducts.

The plenum space, however, is not limited to housing only HVAC equipment. It is increasingly being utilized for other purposes, such as routing communications cables, including networking cables. This versatile use of plenum space is a response to the evolving infrastructure needs of modern buildings, where efficient space utilization
is crucial. The plenum thus plays a dual role in both maintaining a building's climate control and supporting its communication and network systems.

What is Plenum Cable?

Plenum cables are specially designed for use in a building's plenum spaces, which are crucial for air circulation. These cables are made to be fireresistant and emit less smoke in case of a fire. This is important because maintaining air quality and reducing fire hazards in plenum spaces are critical for building safety. Plenum cables must meet strict
safety standards to ensure they are suitable for these sensitive areas.

Types of Plenum Coaxial Cable?

Plenum coaxial cables are specially designed for installation in plenum spaces of buildings, which are areas used for air circulation for heating, ventilation, and air conditioning systems. These cables are made with fire-retardant materials to meet strict building code requirements. The three common types of plenum coaxial cables are RG6, RG59, and RG11, each with distinct characteristics:

RG6 Plenum Coaxial Cable:

Ideal for digital TV, cable TV, satellite installations, and high-speed internet. It features a thicker conductor and better shielding, suitable for longer distances and higher
frequencies, with a fire-retardant jacket.
RG59 Plenum Coaxial Cable:

Commonly used for CCTV and analog video over shorter distances. It's more flexible than RG6, easing installation in tight spaces, and also has a fire-retardant jacket for
plenum safety.
RG11 Plenum Coaxial Cable:

Best for long-distance signal transmission in large buildings or extensive installations. It has a larger gauge for lower signal loss over long runs and is built with fire-resistant,
low-smoke materials for plenum use.

Cable Standards Reference Guide

National Electrical Code (NEC)® Catalog Reference Information

The National Electrical Code is a set of guidelines describing procedures which minimize the hazardsof electrical shock, fires, and explosions caused by electrical installation. The text of the NEC is contained in nine chapters, each chapter broken into individual articles. NEC types are acronyms consisting of a prefix
describing cable type (e.g. coax, CATV, fiber optic) and a suffix indicating the type of flame test it has passed and where it can be installed. Articles describing wire and cable products — including required cable markings — are listed in the chartto the right.

Impact of the NEC

Almost everyone involved with wire and cable is affected by the National Electrical Code. In particular, the following groups must incorporate NEC guidelines into their work: OEM engineers, wire and cable product engineers, distributors, installers, and architects.

Although NEC covers wire and cable installed in factories, office buildings, hotels, motels, apartment buildings, residences, and all cables which pass through any floor, wall, ceiling, or which travel in ducts, plenums, and other air handling spaces, each individual municipality, city, county, or state can decide whether or not they wish to adopt the NEC as law. Local authorities having jurisdiction enforce their own codes. They have the right to accept or refuse any installation in accordance with their own local laws. One of the organizations local inspectors rely on to test wire and cable is Underwriters Laboratories (UL).

Intended Uses of Appliance Wiring Materials (AWM)

In the past, AWM cable was incorrectly used to wire buildings—this was never its intended use. AWM cable is intended for internal wiring of factory-assembled, listed appliances such as computers, business machines, ranges, washers, dryers, radios, and televisions. In some cases, AWM cable may be used for external connection. In these situations, the user should be aware that AWM cable temperatures and voltage ratings may differ from NEC ratings.

C(UL) Certifications

UL/NEC-Approved cables may also be C(UL)/ CEC-Approved as communications cables meeting the requirements of the Bi-National Standard CSA C22.2 No. 214/UL 444 and Section 60 of the Canadian Electrical Code, Part I (CEC). The C(UL) cable designation (and its meaning) would be one of the following:
1. CMP — Cable meeting CSA FT6 or NFPA 262
(UL 910);
2. CMR — Cable meeting UL 1666;
3. CMG — Cable meeting CSA FT4;
4. CM — Cable meeting UL 1685 (UL 1581, Sec. 1160)
Vertical-Tray;
5. CMX — meeting UL 1581, Sec. 1080 (VW-1);
6. CMH — Cable meeting CSA FT1.

NOTE: The CSA flame tests are defined in CSA C22.2 No. 0.3 as follows:

FT1 Vertical Flame Test —
per C.S.A. C22.2 No. 0.3-92 Para 4.11.1

A finished cable shall not propagate a flame or continue to burn for more than one (1) minute after five (5) fifteen (15) second applications of the test flame. There is an interval of fifteen (15) seconds between flame applications. The flame test shall be performed in accordance with Para 4.11.1 of Canadian Standards Association (CSA) Standard C22.2 No. 0.3. In addition, if more than 25% of the indicator flag is burned, the test cable fails.

FT4 Vertical Flame Test —

Cables in Cable Trays per C.S.A. C22.2 No. 0.3-92 Para 4.11.4

The FT4 Vertical Flame Test — Cables in Cable Trays is similar to the UL-1685 Vertical Tray Flame Test, but is more severe. The FT4 test has its burner mounted at 20° from the horizontal with the burner ports facing up. The UL-1685 Vertical Tray has its burner at 0° from the horizontal. The FT4 samples must be larger than 13mm (.512”) in diameter.

If not, then the cable samples are grouped in units of at least three (3) to obtain a grouped overall diameter of 13mm. The UL-1581 Vertical Tray does not distinguish on cable size. The FT4 has a maximum char height of 1.5 m (59”) measured from the lower edge of the burner face. The UL-1685 has a flame height allowable up to
approximately 78” measured from the burner.

FT6 Horizontal Flame & Smoke Test —

per C.S.A. C22.2 No. 0.3-92 Appendix B

This test is for cables which must pass a Horizontal Flame and Smoke Test in accordance with ANSI/NFPA Standard 262-1985 (UL-910). The maximum flame spread shall be 1.50 meters (4.92 ft.). The smoke density shall be 0.5 at peak optical density and 0.15 at maximum average optical density.

Reference Standard and Certificates

● UL/ETL/CPR/CE/RoHS/REACH/ISO9001/ANATEL/SABS
● Connectors
● F-type connectors available

Production Supplier Profile

● Zion Communication is a top manufacturer and exporter of RG coaxial cables.
● Extensive experience in manufacturing for export and problem-solving.
● Zion Communication focuses on customer needs: provides competitive signal & Low voltage power transmission products and services and continues to create maximum value for customers!
● Zion Communication has advanced production equipment and excellent engineers and skilled workers to guarantee the best products to our customers.
● Our management and international sales teams are committed to our customers' utmost satisfaction.

How do I place an OEM or customized order?

1) Send your purchase intention to our email: info@zion-communication.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.
5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
