About LV Armoured SWA & AWA 0.6/1 KV

Description

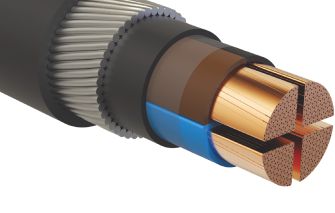

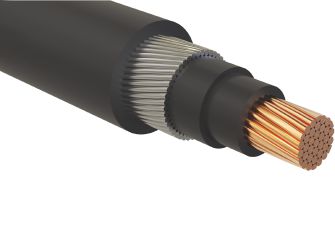

● Armoured cable is constructed either from steel wire (SWA) or aluminum wire (AWA). It protects against mechanical stress, making armored cables suitable for direct burial and uses outdoors or underground. Mains power cable, single core power cable, and multi-core booklet armored cable.



Applications

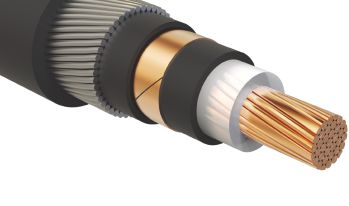

● General single core PVC cable with aluminum wire armor (AWA) control/power cable for fixed wiring arrangements and power networks. Suitable for underground, indoor, and outdoor use in cable ducting.

● Designed for use in AC circuits, the aluminum armor prevents magnetic build-up. Suitable for power networks and direct burial where fire and emissions of smoke and toxic fumes create a serious potential threat.



Constructions

​

Types Of Fire Performance Cables

● It is important for cables to have re survival properties because they are widely distributed throughout a building and can be the main cause of

re trans mission to unaecte d areas. There are 2 types of characteristics for Fire Performance: Active - which ensures the cable, continues to transmit

power and signals during a re, and Passive ñ which limits the spread of re that can cause severe damage to property and reduces the emission

of fumes and toxic gases that can lead to loss of human lives.
These safety features are necessary to allow occupants of buildings and facilities to have the time to evacuate without being hurt or overcome by
re, toxic gases and fumes.
In Europe and the United States, where most of the re performance standards originated, there is a slight dierence in concerns over re behaviour.
The European countries are concerned about all aspects of re-aected cables, including harmful halogen, smoke and gas contents, whereas the
concern over in the United States is the ame spread and smoke characteristics from cables.
Cables are therefore rated for their various Fire Resistant, Flame Retardant, Low Smoke Zero Halogen (LSZH) and Low Smoke Fume (LSF) characteristics.

Flame Retardant Cables

● Flame Retardant cables are designed to minimise the spread of ame in the event of a re. Whether it is a single wire or a bundled wire cable, it is
supposed to retard ame spread so that the re may ideally be limited to a small area and allow for emergency response to put it out. Our PVCbased
cables have this characteristic and are widely used for their low cost.

Low Smoke And Fume Cables (LSF)

● LSF cables are slow to ignite and they burn slowly. LSF cables emit much smaller amount of smoke and fumes, with characteristics similar to that
of LSZH-FRT cables. Although its emission will still have halogen but the content is much lesser than that from PVC cables. To ensure better re
performance, LSF cables are manufactured with ame retardant PVC blended with HCL and smoke absorbent material for maximum eiciency.
Low Smoke Zero Halogen Flame Retardant Cables (LSZH-FRT)

Halogens are harmful non-metal elements such as uorine (F), chlorine (Cl), bromine (Br), iodine (I), and astatine (At). FRT cables are designed with
special materials not only with self-extinguishing property, but also with low smoke and fume emissions without halogens, as well as an absence
of toxic gas emission in case of combustion. Thus, LSZH-FRT cables outperform PVC and LSF cables with additional protection from re spread and
the emission of toxic gas and corrosive elements. These cables are suitable for use in inadequately ventilated areas such as those in aircraft, ships,
and military facilities.

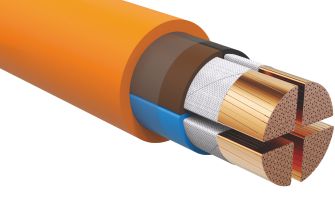

Fire Resistant Cables

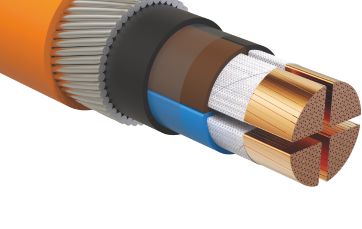

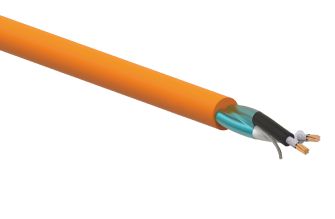

● Fire Resistant cables are designed with superior re resistant property to continue to operate in the event of a re for a specic period of time
(usually between 30 and 180 minutes). They are specied for used in vital installations and essential support facilities, such as a re alarm system,
as they are designed to withstand re and maintain circuit integrity. In such cables the stranded annealed copper conductor is sealed with a reresisting
mica tape wrap, so that even after the insulation has been burnt phase-to phase and phase-to-earth contact can be prevented. They are
also designed to withstand mechanical shock and perform under wet condition.

Reference Standard and Certificates

● BS 6724
● IEC/EN 60228
● BS 5467
● IEC 60332-1

Production Supplier Profile

● Zion Communication is one of the top manufacturers and exporters of LV Armoured SWA & AWA cables 0.6/1 kV

● Extensive experience in manufacturing for export and problem-solving.

● Zion Communication focuses on customer needs: provides competitive signal & Low voltage power transmission products and services and continues to create maximum value for customers!

● Zion Communication has advanced production equipment and excellent engineers and skilled workers to guarantee the best products to our customers.

● Our management and international sales teams are committed to our customers' utmost satisfaction.
