RF Corrugated Coax Cable Manufacturer

Good at designing, manufacturing RF Corrugated Coax Cables
and Good services based on reasonable prices.
Download RF Corrugated Coax Cable PDF
& Certificate
​​​​​​​OEM customized production according to your requirements.
Standardized products and services according to our own brand.
Contact us

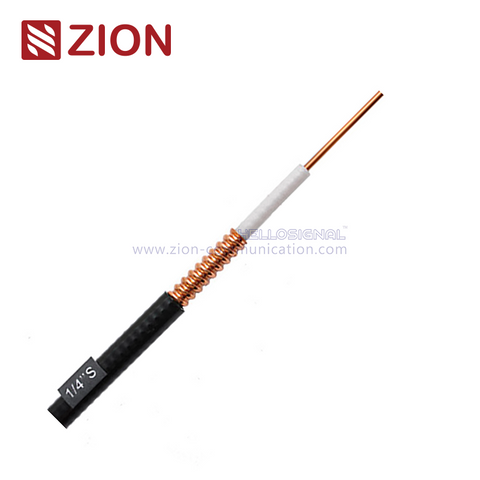

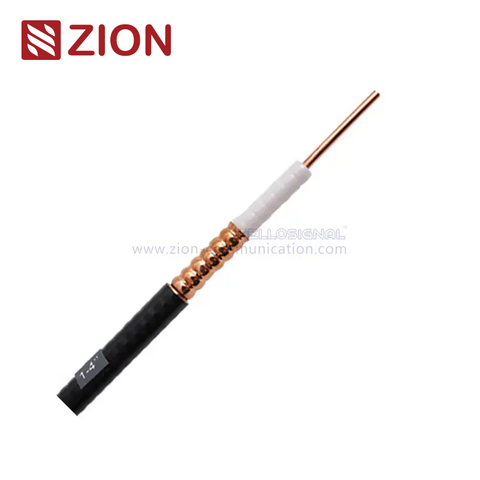

 1/4"

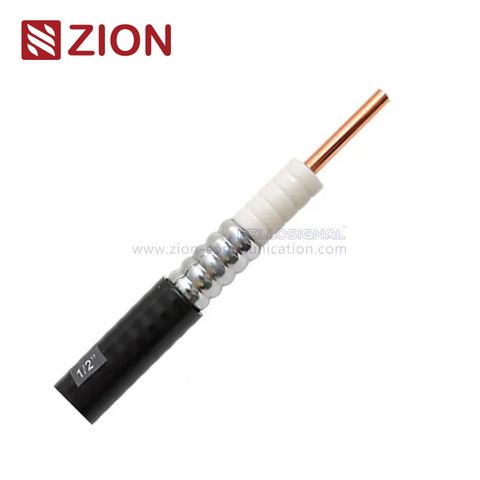

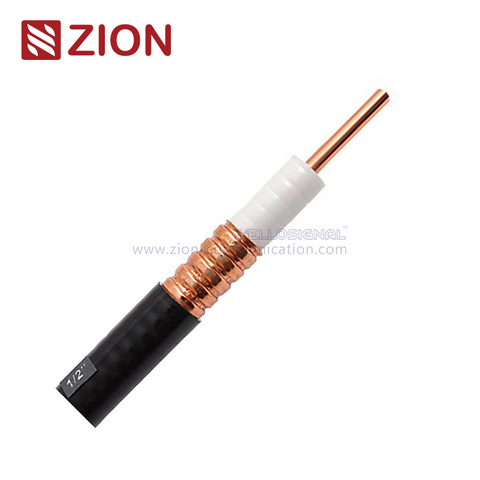

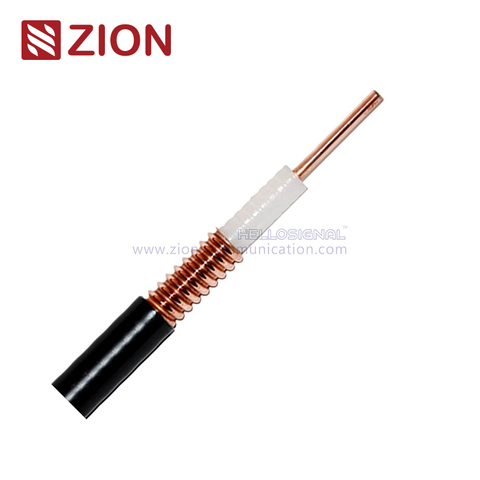

 1/2"

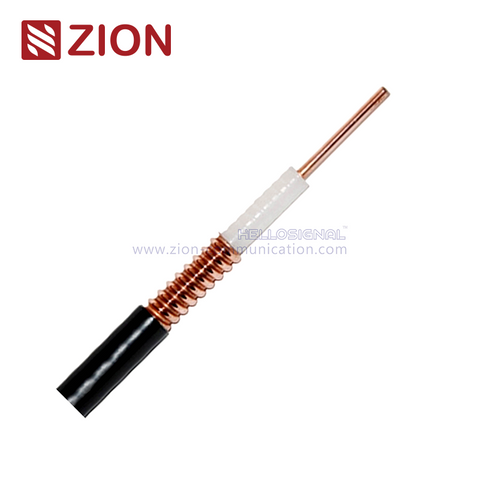

 3/8"

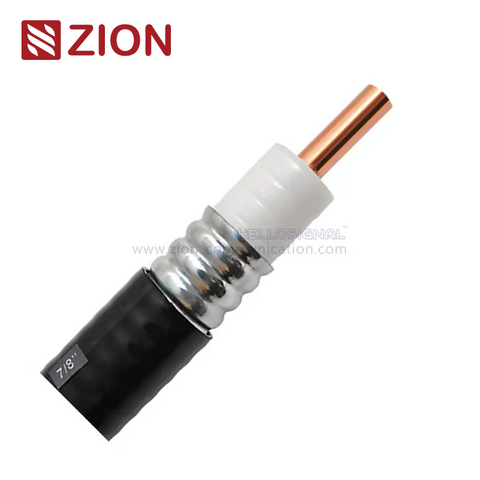

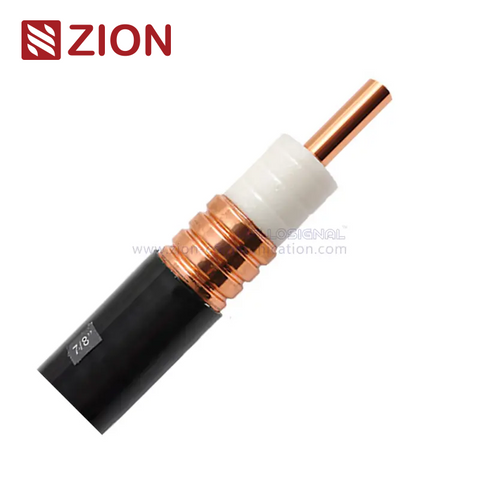

 7/8"
 1-1/4"

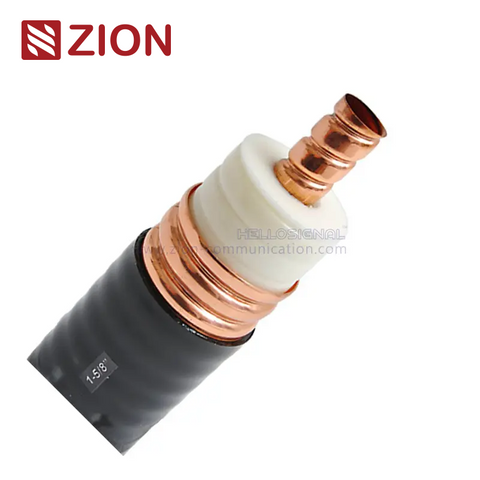

 1-5/8"

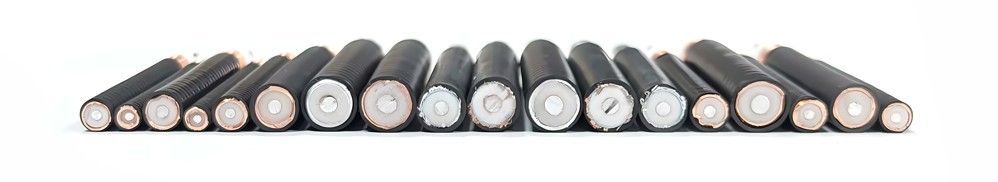

RF Corrugated Coax Cable2



■  What is RF Corrugated coaxial cable?



RF cables are used as transmission lines for RF signals. Its name comes from the abbreviation of "radio frequency." It is named RF corrugated coaxial cable because the outer conductor is corrugated. Zion Communication offers a complete range of RF Corrugated coaxial cables, from 1/4" to 1 5/8".


The cable construction is similar for all cable sizes: Inner conductor, foam dielectric, outer conductor, and outer jacket.

 The inner conductor is made of copper-clad aluminum wire and a smooth or corrugated copper tube dependent on cable size. The use of high conductivity copper guarantees excellent low-loss performance.
 The foam insulator consists of a mixture of low dielectric polyethylene – melted and extruded utilizing an inert gas injection process. Low density, close and homogenous cell dielectric contributes to further excellent low-loss performance and minimized risk of water penetration.
 The outer conductor is copper and has a longitudinal weld that provides high-quality screening and a tight bending radius.
 The cables are available as standard with either a PE jacket for outdoor installations or in a flame-retardant and halogen-free version to comply with indoor requirements for health and safety (IEC 60332 and CPR-EN 50575).





RF Corrugated Coax Cable



Key features of the cable range provide best-in-class electrical and mechanical performance:



 Low attenuation
 Low VSWR/RL
 Complete EMI shielding to minimize system interference
 Outstanding PIM performance
 High-power rating





Application of RF corrugated coaxial cable



RF (Radio Frequency) corrugated coaxial cables are widely used in the field of telecommunications and broadcasting due to their superior electrical performance and mechanical flexibility. Here are some key applications of these cables:



 Broadcast Transmission: They are frequently used in radio and television broadcasting stations to transmit signals from the transmitter to the antenna.
 Cellular Base Stations: These cables are ideal for connecting antennas to base station equipment in cellular networks due to their low loss and high power handling capabilities.
 Microwave Communications: They are used in microwave communication systems where high-frequency signal transmission is required.
 Radar Systems: In radar applications, these cables are used due to their ability to handle high power and provide reliable performance in a range of environmental conditions.
 Satellite Communications: They are also used in satellite communication systems for connecting ground equipment to antennas.
 Military Communications: Due to their robustness and reliability, these cables find applications in military communication systems.
 Industrial Applications: In industrial settings, these cables are used for various high-frequency transmission applications, including instrumentation and control systems.
 Marine and Aviation Communication Systems: Their resistance to environmental factors makes them suitable for use in harsh environments like marine and aviation applications.


RF corrugated coaxial cables are chosen for these applications due to their high flexibility, low signal attenuation, excellent power handling, and resistance to external interference, making them ideal for both indoor and outdoor installations.







■ How do we deliver high-quality RF corrugated coaxial cable for customers?



 Select the best quality raw material suppliers and establish long-term and stable cooperative relationships.
 Incoming material inspection, strict quality control from the source.
 The best production equipment in the world is selected for production, and a team of highly skilled and experienced technicians ensures efficient production



RF corrugated coaxial cable foctory



 Using the world's best testing equipment, we conduct in-production and post-production spot checks on each order to ensure that the products we send out meet the performance agreed upon with our customers.



RF corrugated coaxial cable test





Packaging and Containerizing



 We will provide customized packaging services based on customer requirements and our experience, including packaging material, packaging size, printing (cable and packaging), etc.



RF Corrugated coax CABLE Packaging and Containerizing A
RF Corrugated coax CABLE Packaging and Containerizing B





Testing Reports





RF corrugated coaxial cable Testing Reports 1
RF corrugated coaxial cable Testing Reports 2



Production Supplier Profile

 Zion Communication is a top manufacturer and exporter of Corrugated copper tube RF coaxial cable.
 Extensive experience in manufacturing for export and problem-solving.
 Zion Communication focuses on customer needs: provides competitive signal & Low voltage power transmission products and services and continues to create maximum value for customers!
 Zion Communication has advanced production equipment and excellent engineers and skilled workers to guarantee the best products to our customers.
 Our management and international sales teams are committed to our customers' utmost satisfaction.

How do I place an OEM or customized order?

1) Send your purchase intention to our email: info@zion-communication.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.
5) 2 weeks before the completion of production, we will notify you to start contacting shipping.

Are you looking for 50ohm Coaxial Cable?
ZION COMMUNICATION supplies a wide range of 50-ohm coaxial cables for today’s microwave communications,
wireless communication systems, and their equipment. Also for internal wiring harness or external interface cables
to meet the needs for more efficient space utilization, smaller external wiring systems and higher signal transfer speeds,
typical in medical systems and flexible electronic systems such as LCD panels and PC Notebook computers.
All HANGZHOU ZION COMMUNICATION CO., LTD 50 Ohm Coaxial cables comply with International standards within the industry.
If you do not find the product you need in then we offer the option of a special custom design cable.
Here you can choose between different constructions, jacket colors or other materials etc.
