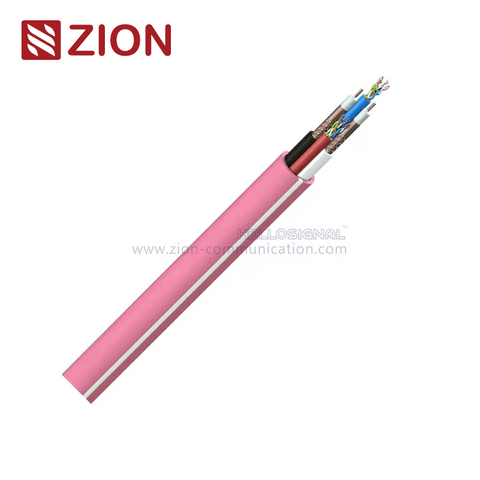

2 x CAT5E UTP + 2 x RG6(TV 100) PVC MCC1 Media Composite Cable

Certificates: ISO9001

More >>

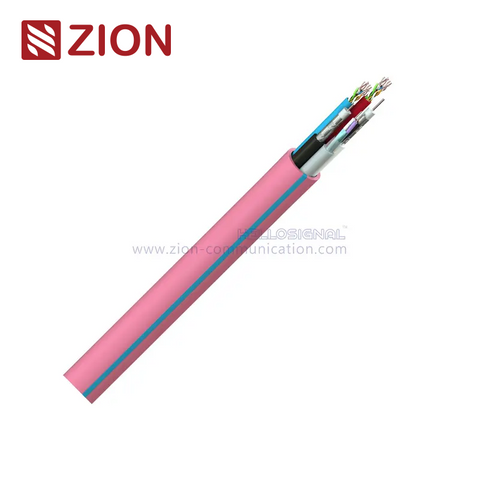

Lighting Cable + 2× CAT 5E + 2× RG6(TV100) PVC MCC2 Media Composite Cable

Certificates: ISO9001

More >>

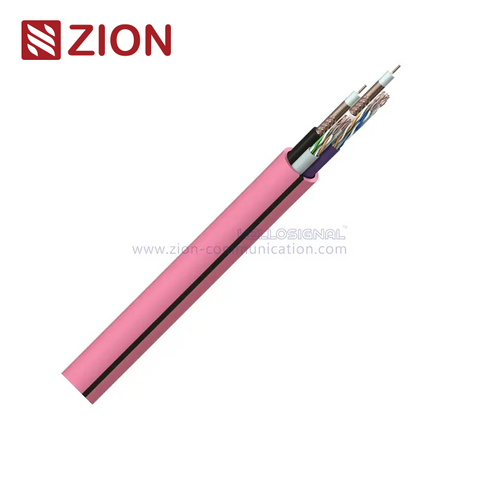

2× CAT 6 + 2× RG6(TV100) PVC MCC3 Media Composite Cable

Certificates: ISO9001

More >>

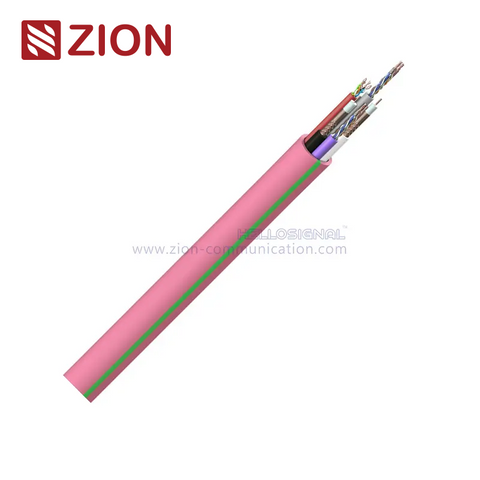

1×CAT 5E+ 2× CAT 6 + 2× RG6(TV100) PVC MCC4 Media Composite Cable

Certificates: ISO9001

More >>

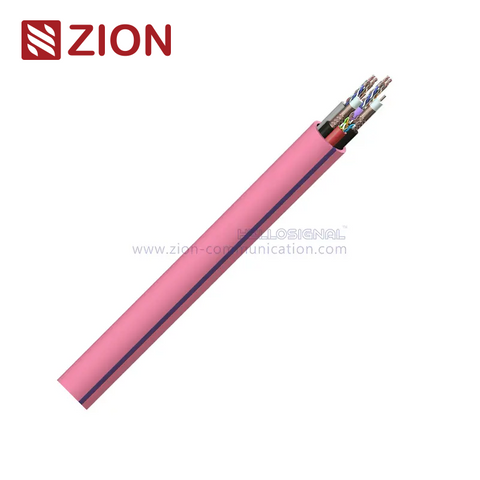

1×CAT 5E+ 2× CAT 6 + 2× RG6(TV100) Coax LSZH MCC5 Media Composite Cable

Certificates: ISO9001

More >>

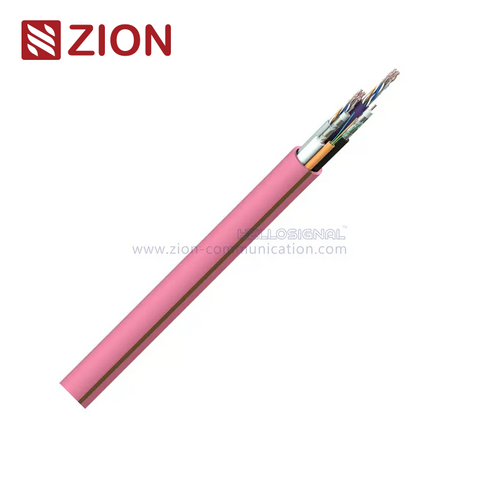

1×Fiber + 2× CAT 6 + 2× RG6(TV100) Tri Coax PVC MCC6 Media Composite Cable

Certificates: ISO9001

More >>

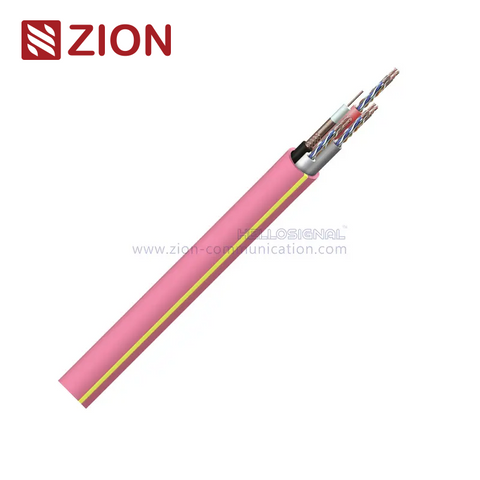

3× CAT 6 + RG6(TV100) Coax PVC MCC15 Media Composite Cable

Certificates: ISO9001

More >>

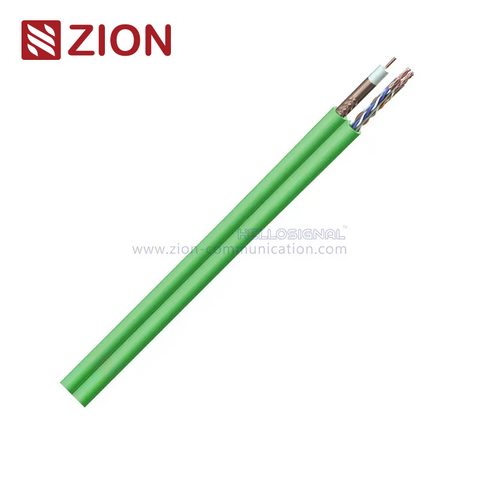

CAT 6 + RG6(TV100) Coax PVC fig 8 cable MCC21 Media Composite Cable

Certificates: ISO9001

More >>

1
2
»
Turn to Page Go

Voice, Audio & Video Cable Category

Media composite cables combine multiple transmission paths in one jacket, helping integrators reduce installation complexity while keeping video, data, control and even fiber links organized in a single pull. They are widely used where structured media distribution, home automation, HD video transport and multi-service room wiring need cleaner routing and faster deployment.

Home AutomationAV DistributionCAT5E / CAT6 + RG6Fiber CompositeHDBaseT ReadyProject Supply

Request Datasheet / Sample

Ideal for carrying data, video and control in one organized composite run.
Common structures include CAT5E/CAT6 with RG6, plus lighting-control or fiber options.
Best choice when installers want fewer pulls, cleaner routing and clearer service separation.

Contents

What Are Media Composite Cables?
Typical Product Range
Common Structure Options
How to Choose the Right Design
Applications
Why Use Composite Media Cable
FAQ

■ What Are Media Composite Cables?

Media composite cables are multi-service cables designed to combine different signal or power elements into one outer sheath. Instead of pulling separate cables for network, television, control or fiber transmission, installers can deploy one engineered cable assembly that keeps system routing cleaner and more efficient.

In practical building and entertainment projects, this means one cable may integrate CAT5E or CAT6 for data, RG6 or TV100 coax for video, screened pairs for control, lighting-control conductors, or even fiber units for higher-bandwidth backbones. This makes media composite cable especially useful for structured home automation, AV distribution zones, smart rooms and multi-service low-voltage installations.

When to choose it

Choose a media composite cable when your project needs two or more media paths in the same route, such as network + video, data + control, or network + coax + fiber. It is a stronger fit when installation space is tight, pull count needs to be reduced, or the client wants an organized structured media layout.

■ Typical Product Range

ZION’s Media Composite Cable category can be positioned as a solution range rather than a single fixed construction. The current visible lineup covers standard CAT5E/RG6 combinations, CAT6-based multimedia bundles, lighting-control composite designs, LSZH versions, fiber-integrated solutions and figure-8 structures for routing convenience.

Typical Model	Integrated Elements	Sheath / Format	Best Fit
MCC1	2 × CAT5E UTP + 2 × RG6(TV100)	PVC	Basic structured media runs
MCC2	Lighting cable + 2 × CAT5E + 2 × RG6(TV100)	PVC	Lighting + AV + data integration
MCC3	2 × CAT6 + 2 × RG6(TV100)	PVC	Higher-performance media rooms
MCC4 / MCC5	1 × CAT5E + 2 × CAT6 + 2 × RG6(TV100)	PVC / LSZH	Mixed-service structured wiring
MCC6	1 × Fiber + 2 × CAT6 + 2 × RG6(TV100) Tri Coax	PVC	Home automation / HD video + future-ready backbone
MCC15	3 × CAT6 + RG6(TV100)	PVC	More data channels with video feed
MCC21	CAT6 + RG6(TV100)	PVC Fig-8	Simple dual-service routing

Data + Coax Combinations

Suitable for structured media panels, TV points, network zones and integrated residential AV wiring.

Control + Media Bundles

Adds lighting-control or screened control elements where one route must support more than entertainment signals.

Fiber-Integrated Designs

A strong option when future bandwidth, long-term upgradeability or mixed copper/fiber topology matters.

■ Common Structure Options

The value of this category comes from how different media elements are combined. Selection should focus on conductor type, shielding level, sheath material and whether the cable needs to support only today’s services or also future migration.

Structure Element	Common Choice	Why It Matters	Selection Note
Data Core	CAT5E or CAT6	Defines Ethernet / control transport capability	CAT6 is preferred when bandwidth margin is more important
Video Core	RG6 / TV100 / Tri or Quad Shield Coax	Supports broadcast / TV / video distribution paths	Higher shielding is better where signal integrity is critical
Control Element	Screened pair or lighting-control cores	Adds automation or low-voltage control support	Useful for integrated smart-room wiring
Fiber Element	Single fiber or custom fiber combinations	Adds upgrade path for high-capacity links	Recommended when future-proofing matters
Outer Sheath	PVC or LSZH	Affects routing environment and smoke behavior	Confirm installation code before selecting sheath type
Format	Round composite or Fig-8 style	Impacts pull behavior and separation preference	Fig-8 can simplify some route-management needs

Practical rule

If the project only needs standard network + video, a CAT5E/CAT6 + RG6 composite is usually enough. If it also needs smart control or system growth, move toward a design that adds screened control pairs, LSZH sheath or fiber units.

■ How to Choose the Right Design

The best media composite cable is not the one with the most elements. It is the one that matches the exact media paths the room, rack or zone actually needs. Overbuilding increases diameter and handling complexity, while underbuilding creates rework later.

Project Need	Recommended Structure Direction	Why	Watch Point
Basic TV + Network point	CAT5E/CAT6 + RG6	Balanced solution for everyday structured media wiring	Confirm whether one or two coax paths are needed
Smart room with lighting or control	Lighting cable + data + coax composite	Reduces separate control cable pulls	Check conductor count and control voltage requirement
Higher-performance multimedia room	Dual CAT6 + dual coax	Provides more media channels and better performance headroom	Plan bend space for larger cable diameter
HD video transport + future upgrade	Fiber + CAT6 + high-shield coax	Adds long-term flexibility for bandwidth evolution	Define fiber count and termination method early
Low-smoke indoor environment	LSZH version	Aligns better with stricter indoor sheath preference	Check local code and installation standard before purchase

■ Applications

Media composite cables are most valuable in projects where several low-voltage services converge at the same endpoint. They help reduce labor, simplify tray routing and keep the handover cleaner for installers, integrators and maintenance teams.

Home Automation

Integrated transport for control, data and video in smart home or smart-room projects.

Structured Media Panels

Useful where coax and Ethernet both terminate in the same cabinet or distribution point.

AV & Entertainment Zones

Supports cleaner cabling for display, source, control and network routing in one pathway.

Future-Ready Upgrades

Fiber-added constructions help protect projects that may later require more bandwidth.

Application Area	Typical Media Mix	Main Benefit
Residential media room	CAT6 + RG6	One pull for network and television/video service
Smart control room	Lighting control + data + coax	Cleaner automation-oriented wiring layout
Integrated villa / apartment system	CAT5E/CAT6 + RG6 + optional fiber	Scalable backbone for multiple service types
AV distribution backbone	High-shield coax + CAT6 + fiber	Supports better upgrade planning and structured signal separation

■ Why Use Composite Media Cable

Fewer Cable Pulls

Reduces separate routing work for data, video and control links.

Cleaner Installation

Helps keep cabinets, panels and field pathways more organized.

Better Project Coordination

Makes it easier to define one cable for one endpoint or zone requirement.

Upgrade-Friendly Options

Fiber-added structures can support future service expansion more smoothly.

Engineer’s shortcut

Start by listing the endpoint services: network, TV/video, control, fiber and environment code. Once that list is clear, the correct media composite structure becomes much easier to define than choosing by model name alone.

■ FAQ

1. What is the main advantage of a media composite cable?

The main advantage is that multiple service paths can be installed in one cable, which simplifies routing and reduces separate cable pulls.

2. Can media composite cables include both coax and Ethernet?

Yes. This is one of the most common structures, especially for media rooms, structured home wiring and AV distribution points.

3. Are fiber-integrated versions available?

Yes. Fiber-added media composite designs are useful when projects want a future-ready path alongside copper-based media services.

4. How do I choose between PVC and LSZH?

Choose based on the installation environment and local code requirement. LSZH is generally selected where low-smoke behavior is preferred for indoor applications.

5. Is CAT6 always better than CAT5E in media composite cable?

Not always. CAT6 is better when more performance margin is needed, but CAT5E may still be the right commercial choice for simpler structured media requirements.

■ Conclusion

Media Composite Cables are a practical category for projects that need network, video, control and optional fiber services delivered together in one organized pathway. Instead of treating them as generic combination cables, it is better to position them as project-specific multi-service transmission solutions. For buyers and integrators, the right decision usually comes down to media mix, sheath requirement, shielding level and whether future bandwidth expansion is part of the design target.

Need the right media composite cable structure for your project?

Send your required signal mix, installation environment and sheath preference. ZION can help you identify the most suitable composite cable direction for structured media, automation and AV distribution projects.

Request Datasheet / Quote Back to Top

Product Categories

Professional OEM - Zion Communication

Request a Quote
