AUTOMOTIVE WIRE PRODUCTS
Mission: Focus on customer needs to provide competitively
signal & low-voltage power transmission products and services,
continue to create maximum value for customers !​​​​​​​
 Inquiry Now

Get the price, packing, free sample, and more now!

 Download PDF
 American Standard Primary Wire

 American Standard Battery Wire

 American Standard-More Type Wire

 Germany Standard
 Japan Standard
 About Automotive Wire



Description
● An automotive electrical wire is applicable in a wide variety of applications, including general circuit wiring (primary wire and battery cable)



Applications
● Use in fixed installations, used in trunking or conduit, may be surface mounted.
● Used as an electrical supply to many household appliances such as refrigerators, washing machines, and spin dryers.





Constructions


American Standard Primary Wire

Name

Operating
 Temperature

Conductor

Insulation

Standard

Construction

1

GPT

–40 °C to +80 °C

STR Copper

PVC

SAE J1128



2

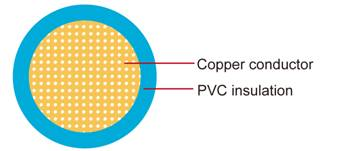

TWP

–40 °C to +80 °C

STR Copper

PVC

SAE J1128



3

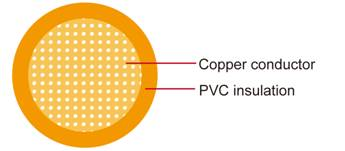

HDT

–40 °C to +85 °C

STR Copper

PVC

SAE J1128



4

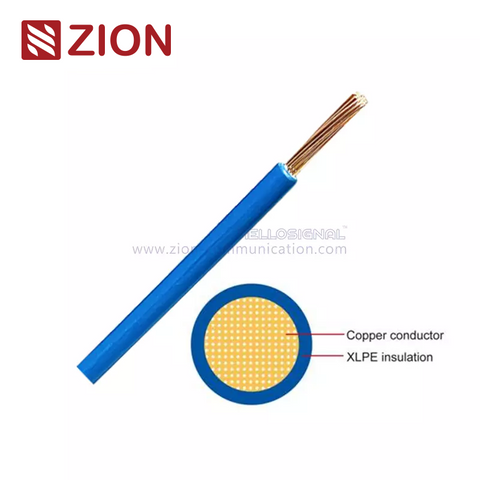

TXL

–40 °C to +105 °C

STR Copper

XLPE

SAE J1128



5

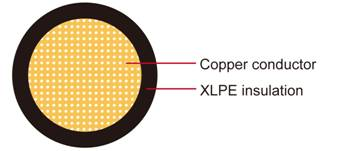

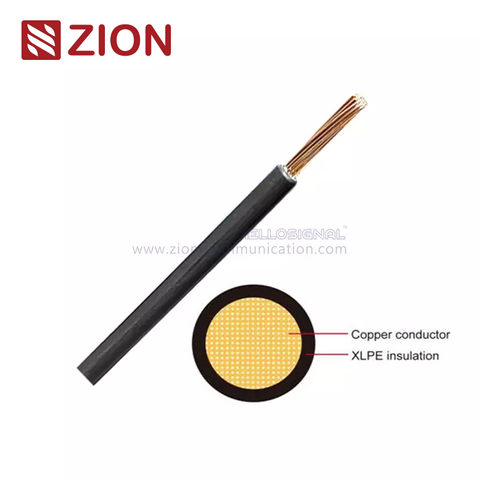

GXL

–40 °C to +125 °C

STR Copper

XLPE

SAE J1128

















American Standard Battery Cable

Name

Operating
 Temperature

Conductor

Insulation

Standard

Construction

1

SGT

–40 °C to +80 °C

STR Copper

PVC

SAE J1127



2

SGX

–40 °C to +125 °C

STR Copper

XLPO

SAE J1127



3

STX

–40 °C to +125 °C

STR Copper

XLPE

SAE J1127

















American Standard More Type Wire

Name

Operating
 Temperature

Conductor

Insulation

Standard

Construction

1

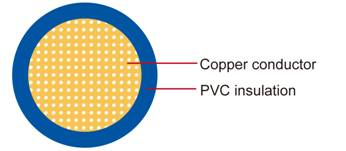

WTA

–40 °C to +85 °C

STR Copper

PVC

SAE J1678



2

WXC

–40 °C to +125 °C

STR Copper

XLPE

SAE J1678

Germany Standard Power Wire

Name

Conductor

Insulation

Standard

Operating
Temperature



Construction

1

FLALRY

Aluminum

PVC

ISO 6722 Class B

–40 °C to +105 °C





2

FLALRYW

Aluminum

PVC

ISO 6722 Class C

–40 °C to +105 °C





3

FLY

STR Copper

PVC

ISO 6722 Class B

–40 °C to +105 °C





4

FLYW

STR Copper

PVC

ISO 6722 Class C

–40 °C to +105 °C





5

FLRYWD

STR Copper

PVC

ISO 6722 Class B

–40 °C to +105 °C





6

FLRY-A

STR Copper

PVC

ISO 6722 Class B

–40 °C to +105 °C





7

FLRY-B

STR Copper

PVC

ISO 6722 Class B

–40 °C to +105 °C





8

FLR4Y-A/B

STR Copper

Polyamide(PA)

ISO 6722 Class B

–40 °C to +105 °C





9

FLYK

STR Copper

PVC

ISO 6722 Class B

–50 °C to +105 °C





10

FLYWK/FLRYWK

STR Copper

PVC

ISO 6722 Class B

–50 °C to +105 °C





11

FL2X

STR Copper

XLPE

ISO 6722 Class C

–40 °C to +125 °C





12

FLR2X-A

STR Copper

XLPE

ISO 6722 Class C

–40 °C to +125 °C





13

FLR2X-B

STR Copper

XLPE

ISO 6722 Class C

–40 °C to +125 °C





14

FL91Y

STR Copper

TPE-O

ISO 6722 Class C

–40 °C to +125 °C





15

FLRYW

STR Copper

PVC

ISO 6722 Class C

–50 °C to +125 °C





16

FLRYW-B

STR Copper

PVC

ISO 6722 Class C

–50 °C to +125 °C





17

FL4G

STR Copper

EVA

ISO 6722 Class D

–40 °C to +140 °C





18

FLR12Y-A/B

STR Copper

TPE-E

ISO 6722 Class D

–40 °C to +150 °C





19

FLR13Y-A/B

STR Copper

TPE-E

ISO 6722 Class D

–40 °C to +150 °C





20

FLR7Y-A/B

STR Copper

ETFE

ISO 6722 Class E

–40 °C to +180 °C





21

FLR9Y-A/B

STR Copper

PP

ISO 6722 Class C

–40 °C to +180 °C





22

FL2G

STR Copper

Silicon rubber

ISO 6722 Class F

–40 °C to +200 °C





23

FLU6Y

STR Copper

FEP

ISO 6722 Class F

–40 °C to +200 °C





24

IATF

STR Copper

FEP

ISO 6722 Class F

–65 °C to +210 °C





25

FLR51Y-A/B

STR Copper

PFA

ISO 6722 Class H

–40 °C to +250 °C





26

FLR5Y-A/B

STR Copper

PTFE

ISO 6722 Class H

–40 °C to +260 °C





27

FLR14Y

STR Copper

PFA

ISO 6722 Class H

–80 °C to +260 °C




Name

Conductor

Insulation

Sheath

Standard

Operating
Temperature

Construction

28

FLYY

STR Copper

PVC

PVC

ISO 6722 Class B

–40 °C to +105 °C



29

FLYY-Single Core

STR Copper

PVC

PVC

ISO 6722 Class B

–40 °C to +105 °C



30

FLYZ

STR Copper

PVC

PVC

ISO 6722 Class B

–40 °C to +105 °C



31

FLRYY

STR Copper

PVC

PVC

ISO 6722 Class B

–40 °C to +105 °C



32

FLR11Y

STR Copper

PVC

TPE-U

ISO 6722 Class B

–40 °C to +105 °C



33

FLRYCY

STR Copper

PVC

PVC

ISO 6722 Class B

–40 °C to +105 °C



34

FLRYDY

STR Copper

PVC

PVC

ISO 6722 Class B

–40 °C to +105 °C



35

FLRYOY

STR Copper

PVC

PVC

ISO 6722 Class B

–40 °C to +105 °C



36

FLRYB11Y

STR Copper

PVC

PUR

ISO 6722 Class B

–40 °C to +105 °C



37

FL4G11Y

STR Copper

EVA

PUR

ISO 6722 Class C

–40 °C to +125 °C



38

FLR2X11Y

STR Copper

XLPE

PUR

ISO 6722 Class C

–40 °C to +125 °C



39

FLR13Y11Y

STR Copper

TPE-E

TPE-U

ISO 6722 Class C

–40 °C to +125 °C



40

FLR31Y11Y

STR Copper

TPE-S

TPE-U

ISO 6722 Class C

–40 °C to +125 °C



41

FL6Y2G

STR Copper

FEP

Silicone Rubber

ISO 6722 Class F

–40 °C to +210 °C


Japan Standard Power Wire

Name

Operating Temperature

Conductor

Insulation

Shield

Sheath

Voltage

Standard

Construction

1

AV-V

–40 °C to +80 °C

STR Copper

Lead Free PVC







HMC ES 91110-05



2

CAVS

–40 °C to +80 °C

STR Copper

PVC







JASO D 611-94



3

AV

–40 °C to +85 °C

STR Copper

PVC







JIS C 3406



4

CAVUS

–40 °C to +80 °C

STR Copper

PVC







JASO D 611-94



5

CIVUS

–40 °C to +85 °C

STR Copper

PVC







JASO D611



6

AVS

–40 °C to +85 °C

STR Copper

PVC







JASO D 611-94



7

AVSS

–40 °C to +85 °C

STR Copper

PVC







JASO D 611-94



8

AVSSH

–40 °C to +100 °C

STR Copper

PVC





25V AC
60v DC

JASO D 611-09 JASO D608



9

EB/HDEB

–40 °C to +100 °C

STR Copper

PVC







JIS C 3406



10

AVSSX/AESSX

–40 °C to +105 °C (AVSSX)
–40 °C to +120 °C (AESSX)

STR Copper

XLPVC (AVSSX)
XLPE (AESSX)







JASO D 608-92



11

APEX-BS

–40 °C to +120 °C

STR Copper

XLPE

TC Braiding

PVC



JASO D611 ;ES SPEC



12

AESSXF

–45 °C to +120 °C

STR Copper

XLPE





60V

JASO D611 ;ES SPEC



13

AESSXF/ALS

–45 °C to +120 °C

STR Copper

XLPE

AL_Mylar Tape

PVC



JASO D608; HMC ES SPEC



14

AEX/AVX

–40 °C to +120 °C (AEX)
–40 °C to +100 °C (AVX)

STR Copper

XLPE







JASO D 608-92



15

AEX-BS

–40 °C to +120 °C

STR Copper

XLPE

TC Braiding

PVC



JASO D608; HMC ES SPEC



16

AEXF

–40 °C to +120 °C

STR Copper

XLPE







JASO D611



17

AEXSF

–40 °C to +135 °C

STR TC

XLPE







ES SPEC



18

AVUHSF

–45 °C to +135 °C

STR Copper

Vinyl

TC Braiding

Vinyl



HKMC ES 91110-05



19

HFSSF-T3

–40 °C to +135 °C

STR Copper

Halogen free compound







ES SPEC



20

HAEXF

–40 °C to +150 °C

STR TC

XLPE







JASO D608



21

AEXHF

–40 °C to +150 °C

STR TC

XLPE





60V

ES SPEC



22

AEXHSF

–45 °C to +150 °C

STR TC

XLPE







HKMC ES 91110-05



23

AHFX

–40 °C to +200 °C

STR TC

Fluoroelastomer







KIS-ES-8093



24

AHFX-BS

–40 °C to +200 °C

STR TC

Fluororubber

TC Braiding

Halogen free
Polyolefine

600V

KIS-ES-1121



25

AVXSF

–45 °C to +200 °C

STR TC

XLPVC







HKMC ES 91110-05




Reference Standard and Certificates



● International: ISO6722
● Japan: JASO D 608, JASO D 611
● USA: SAE J 1127, SAE J 1128, SAE J 1560, SAE J 1673
● Germany: DIN72550, DIN72551, DIN76772



Production Supplier Profile


● Zion Communication is one of the top manufacturers and exporters of LV Armoured SWA & AWA cables 0.6/1 kV

● Extensive experience in manufacturing for export and problem-solving.

● Zion Communication focuses on customer needs: provides competitive signal & Low voltage power transmission products and services and continues to create maximum value for customers!

● Zion Communication has advanced production equipment and excellent engineers and skilled workers to guarantee the best products to our customers.

● Our management and international sales teams are committed to our customers' utmost satisfaction.
