HELLOSIGNAL Industrial CAT5e Cable

  • Industrial CAT5e Cable
  • hellosignal
  • 7130000

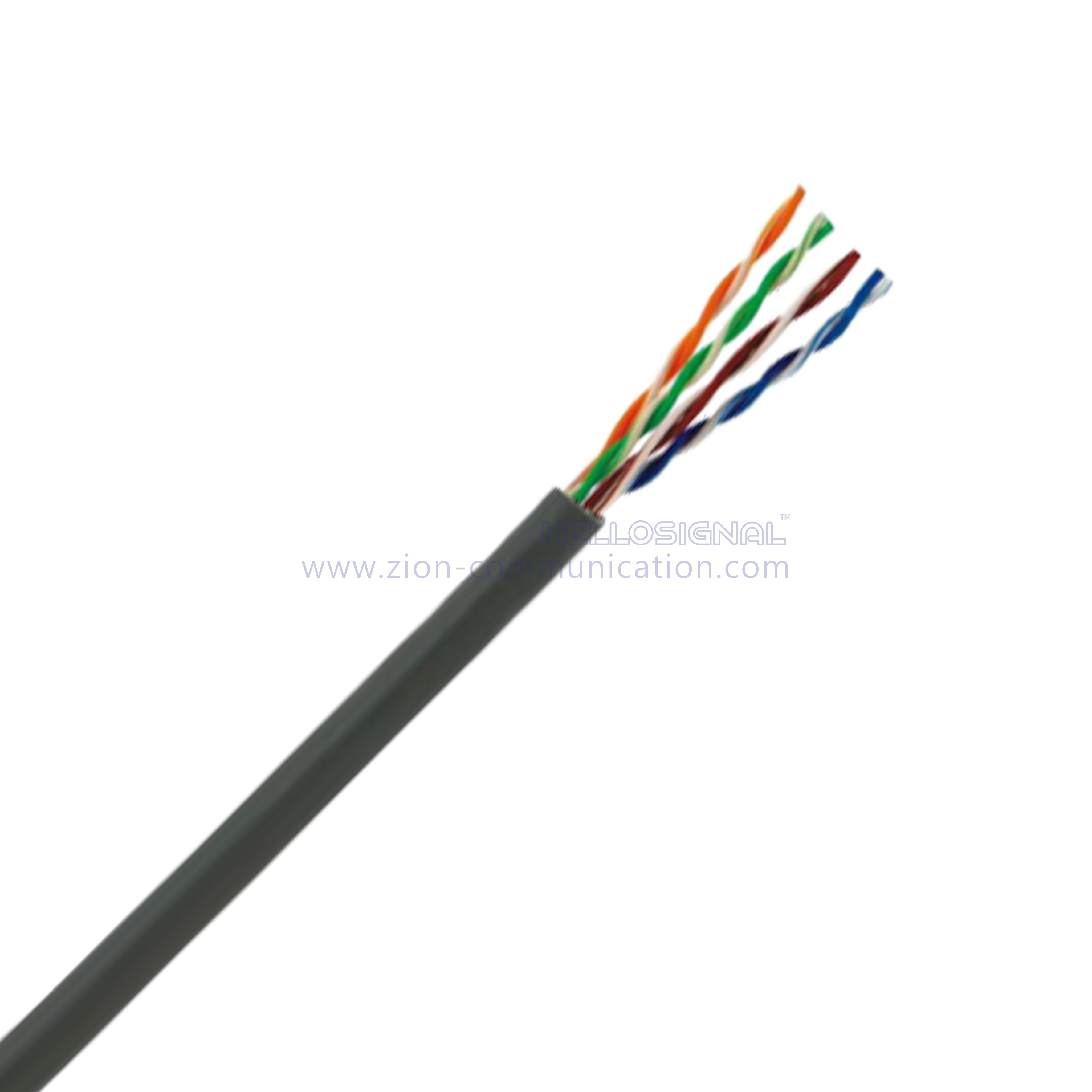

Industrial CAT5e Cable

Industrial CAT5e Cable..png

Application

Apply to complex industrial environment and moved installation.
Can be used in the system of EtherCAT and EtherNET/IP.
Application in electric power transportation metallurgy,water treatment and other industries.










Cable Construction

Conductor: Solid or stranded copper wire

Insulation: PO

Shield: AL/Mylar screen and copper wire braid

Jacket: see attached list

Color: grey(similar to RAL 7035)










Cable Construction

Professional design,reduce the using cost.

Double shielded cable,excellent Anti-EMI performance and Reliable transmission

PUR jacket is resistant to oil,abrasion and hydrolysis

Fire resistance meets IEC60332-1 UV resistance

LSZH jacket have good performance of low smoke,halogen-free and high security


Cross Section

 Industrial CAT5e Cable...png

Technical data

Temperature range

 .-40℃ to 80℃

Test voltage

1000V

Peak voltage

(Data transmission application)125V

Characteristic impedance 100±15 Ohm

100±15 Ohm

Min bending radius

Fixed installation8x cable diameter

Occasional movement10x cable diameter

Power Chain12x cable diameter

Other characteristics

According to ANSI/TIA-568 and IEC11801


Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

Application

7130000

4*2*AWG24/1

LSZH

6.8

32

54

Fixed installation

7130001

4*2*AWG24/1

PUR

6.8

32

52

7130002

4*2*AWG24/1

PVC

6.8

32

54

7130003

4*2*AWG26/7

LSZH

6.1

26

56

Occasional movement

7130004

4*2*AWG26/7

PUR

6.1

26

54

7130005

4*2*AWG26/7

PVC

6.1

26

56

7130006

4*2*AWG26/19

PVC

6.3

27

54

Power Chain

7130007

4*2*AWG26/19

PUR

6.3

27

54


Order Informations

Marking

HELLOSIGNAL Industrial CAT5e Cable XXXFT/M

Package

500FT/PULL BOX, 1000FT/Wooden Spool,Pallet …

Delivery time

Normally 25 days after received the deposit.
