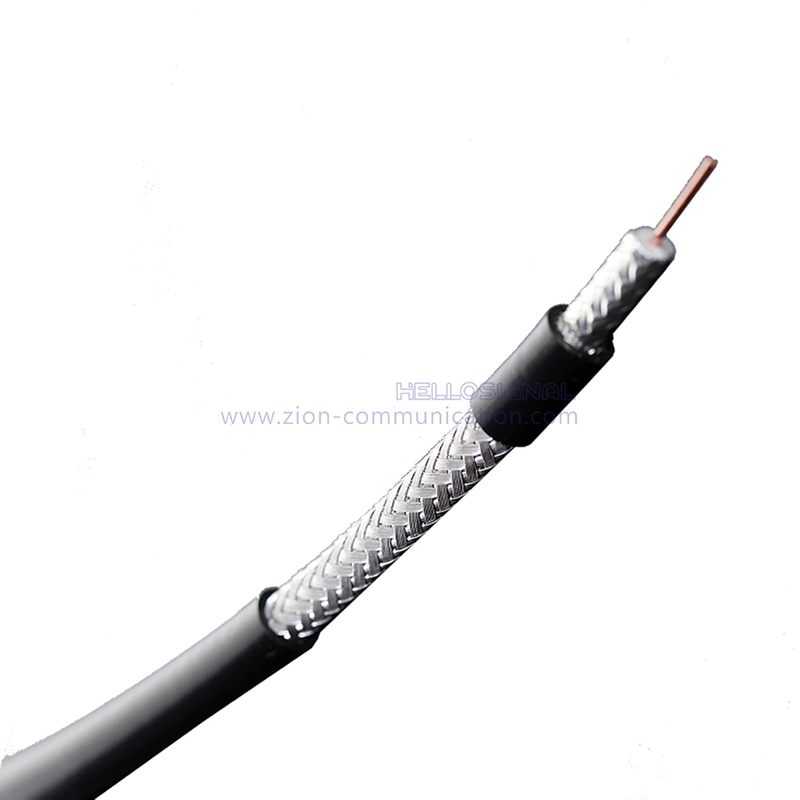

RG59 Quad CM PVC Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 0.032"/0.81mm/20AWG Copper-Clad Steel | |
| Dielectric | 0.144"/3.66mm Foamed PE | |
| Shield 1 | 0.151"/3.84mm Bonded Aluminum-Polyproylene | |
| Shield 2 | Aluminum braid wire 53% coverage | |
| Shield 3 | Laminated Aluminum Tape(Non-Bonded) | |
| Shield 4 | Aluminum braid wire 40% coverage | |
| Jacket | 0.265"±0.006"/6.73±0.15mm PVC | |
| Jacket Thickness | 0.034"/0.86mm | |
| Application | For Use in Longer CATV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Cond. Resistance | The Max. at 20℃ shall be < 87 Ω/km 26.5 Ω/1000ft | |
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.86 | 2.82 |
| 55 | 2.05 | 6.73 |
| 83 | 2.45 | 8.04 |
| 187 | 3.60 | 11.81 |
| 211 | 3.80 | 12.47 |
| 250 | 4.10 | 13.45 |
| 300 | 4.45 | 14.60 |
| 350 | 4.80 | 15.75 |
| 400 | 5.10 | 16.73 |
| 450 | 5.40 | 17.72 |
| 500 | 5.70 | 18.70 |
| 550 | 5.95 | 19.52 |
| 600 | 6.20 | 20.34 |
| 750 | 6.97 | 22.87 |
| 865 | 7.52 | 24.67 |
| 1000 | 8.12 | 26.64 |
| Mechanical and Environmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ | |
| Cable diamensions | 0.266''±0.006''/6.78±0.15 mm PVC | |
| Order Informations: | ||
| Marking | HELLOSIGNAL KT2028 RG59 Bonded 53% Non-Bonded 40% PVC CM CATV COAXIAL CABLE ×××M/FT | |
| Package | 500FT/Pull Box, 1000FT/Wooden Spool/Pallet | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
