ADSS All Dielectric Self-Supporting Cable ANTI-RODENT

DATA SHEET SPECIFICATION

Complies with Standard ISO9001

ADSS All Dielectric Self-Supporting Cable ANTI-RODENT

■ Main Specifications:

12F*2.0Tube+2.3CSM+WST+Ripcord+MoistureAbsorbingTapes+7*3300AramidYarn+Fiberglass+10.2HDPE
24F*2.0Tube+2.3CSM+WST+Ripcord+MoistureAbsorbingTapes+7*3300AramidYarn+Fiberglass+10.2HDPE
72F*2.0Tube+2.3CSM+WST+Ripcord+MoistureAbsorbingTapes+7*3300AramidYarn+Fiberglass+10.2HDPE

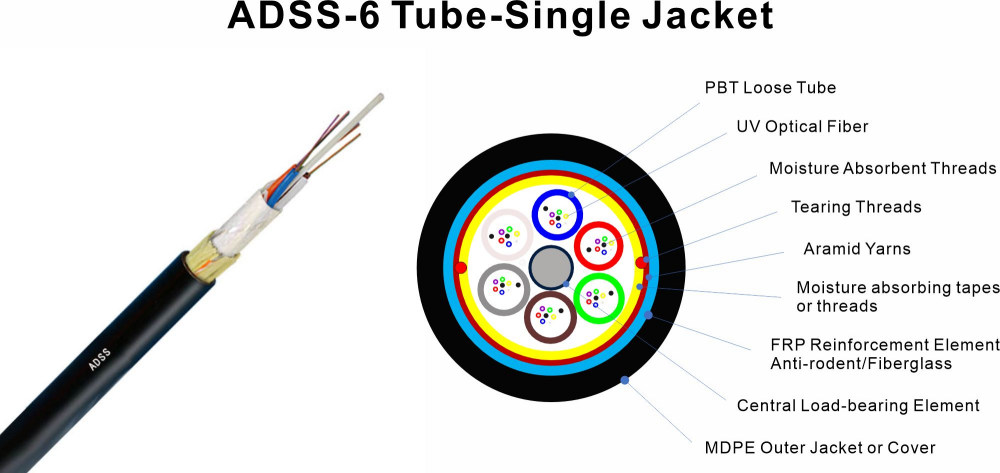

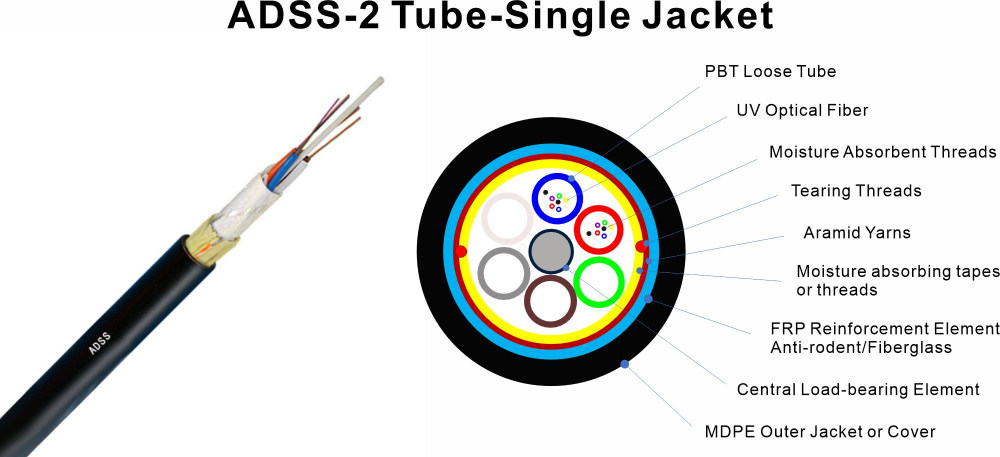

■ Structure Design Drawing:

■ High-Quality Raw Materials:

All materials use High-Quality raw materials:
1.Optical Fibers:All Performance Meets ITU-T Technical Standards
2.Moisture Absorbent Threads
3.Loose Tube: Polybutyleneterephthalate(PBT)
4.Central Dielectric Strength Member:Fiberglass Reinforced Plastic(FRP)
5.Filler: FRP with the same Diameter as Tubes
6.Waterblocking Yarn:Polyester filament, polymer expandable water absorbent resin
7.Water Swellable Tape:Polyester non-woven fabric, super absorbent resin, adhesive
8.Binder: Polyethylene Terephthalate(Polyester Yarn)
9.Ripcord: High strength tear rope
10.Dielectric Strength Member: Aramid Yarn1414,Para-Aramid Fiber Yarn (PPTA)Tensile modulus ≥120Gpa
11.Outer Jacket: Medium Density Polyethylene

■ Main Optical Fiber Characteristics:

1.Fibers: ITU-T G.657.A2 ;Dimensions: 9/125/250±5μm
2.Recommended Band:@1310nm @1550nm
O:1260-1360(Zero Dispersion Wavelength)
C: 1530-1565 (Minimum attenuation)
3.Core / Cladding Concentricity Error≤0.4μm  (0.7%)
4.Attenuation Coefficient:@1310;1550nm≤0.34;0.2dB/km
5.Mode Field Diameter:@1310;1550nm≤8.6±0.4;9.6±0.5μm
6.Point Discontinuity: @1310;1550nm≤0.05dB
7.Cable Cut-off wavelength(λ cc): ≤1260nm
8.Fiber Strain: ≥1% ; Fiber Load≥9N
9.Temperature Cycling(-60℃~+85℃): ≤0.05dB/km
10.Macro Bending Loss: 10turns of 15mm Radius≤0.1 @1625 nm dB
11.Tensile Strenth:3500N, Span:120m
12. The fiber optic complies with ITU-T standard G.657.A2 which is compatible with ITU-T standard G.652.D and ITU-T standard G.657.B3
13.The 144 cable reel has a length of 2,175 meters, reel material wood

■ Main Optical Fiber Characteristics:

1.Wind speed=25m/s,Ice=0mm

2.Max Applied Voltage: ≤110kv ; Installation

3.Temperature: -25~+65℃

4.Bending Radius: ≥10×Out Diameter (Static10D/Dynamic20D)

5.RTS: Rated tensile Strength (Break Strength)(KN/  N/mm²)

6.UTS: Ultimate Tensile Strength(60%RTS)(KN/  N/mm²)

7.MAT: Max allowable working tension (40%RTS)

8.EDS: Every Day Strength (16-25%RTS)(KN/  N/mm²)

9.Sag=0.5%(80-120mSpan); 1.0%(150-300mSpan);

10.Wind Load Formula: W=C1*(D+2t)*V^2*α /16000 (α value=0.85)

11.Aramind Yanrs Tensile modulus ≥120Gpa

12.Under MAT: Fiber strain:≤0.05% (Stranded Loose Tube)   ≤0.1% (Uni-tube)

■ Product complies with the following Standards:

• ITU-T G.657.A2

• EIA/TIA 598D

• IEC 60794-1-2-F5B

• IEEE1222-2004

■ Fibers Color Standard Sequence:
