1. Descriptions

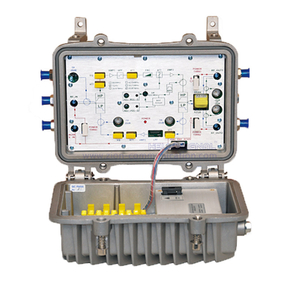

WA-1200-CEAM series are high gain high output modular bidirectional AGC amplifiers. It is suitable to the 1GHz CATV bidirectional cable transmission network.
2. Features
Ø Add RF AGC control for forward path.
Ø Plug-in equalizer and attenuator, GaAs power double output.
Ø Two-way splitter or tap output, modular cast aluminum waterproof housing.
3. Specifications
Ø Operating Frequency: 5 ~ 65/87 ~ 1003 MHz; 5 ~ 65/87 ~ 862 MHz
Ø Forward Path Maximum Full Gain: ≥ 38 dB
Ø Forward Path C/CTB: ≥ 65 dB
Ø Forward Path C/CSO: ≥ 63 dB
Ø Return Path Maximum Full Gain: ≥ 22 dB
Ø Return Path Carrier Second Order Intermodulation Ratio: ≥52dB.
Ø Forward Path AGC characteristic: ±4dB（input）/±0.5dB（output）
4. General features
Ø Consumption: ≤ 22W
Ø Operating Temperature: -20 ~ +55℃
Ø Operating Voltage: AC 150 ~ 265V or AC 35 ~ 90V（50Hz）
Ø Dimension: 295mm（L）X 210mm（W）X 150mm（H）
Note 1: The technical index test conditions are in accordance with < GY/T 185-2003 Specifications and methods of measurement on two-way amplifiers used in CATV systems >.
Note 2: More detailed product introduction and index parameters see the product manual.
