CFOAC-BLI/AB-CM-01-AR-LSZH

Product Director : James Xu

Email:  james@zion-communication.com

■ Certificado De ANATEL:

GJYXFCH-1F (G657A1)         CFOAC-BLI A-CD-01-AR-LSZH

GJYXCH-1F (G657A1)           CFOAC-BLI A-CM-01-AR-LSZH

GJYXFCH-1F (G657A2)         CFOAC-BLI B-CD-01-AR-LSZH

GJYXCH-1F (G657A2)           CFOAC-BLI B-CM-01-AR-LSZH

GJYXCH-2F (G657A1)           CFOAC-BLI A-CM-02-AR-LSZH

GJYXFCH-2F (G657A1)         CFOAC-BLI A-CD-02-AR-LSZH

GJYXCH-2F (G657A2)           CFOAC-BLI B-CM-02-AR-LSZH

GJYXFCH-2F (G657A2 )        CFOAC-BLI B-CD-02-AR-LSZH

Fibras opticas: UV fiber G.657;@1310nm ＜0.35dB/km;@1550nm ＜0.2dB/km;

CM: Compacto metalico

CD: Compacto Dielétrica

AR: Atrito reduzido

BLI: Monomodo com baixa sensibilidade a curvatura

CFOAC: Cabo fibras opticas acesso

Temperatura de opera: -20~+60℃

Dimensional nominal do cabo: 2.0*5.2mm

Massa nominal: 20kg

■ Description:

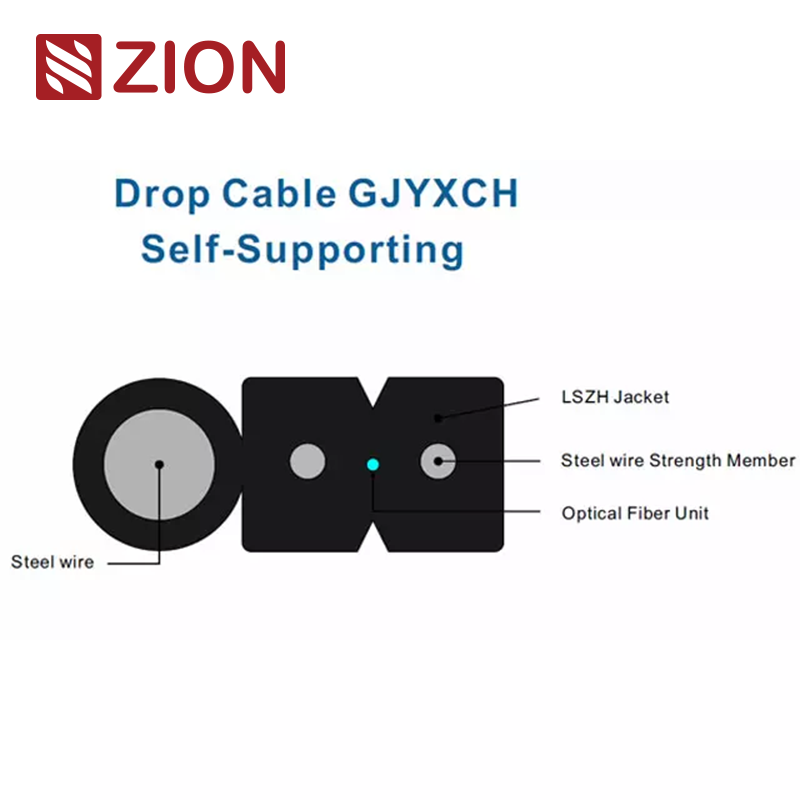

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.

■ Characteristics:

• Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

• Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

• Single steel wire as the additional strength member ensure good performance of tensile strength.

• Simple structure, light weight and high practicability.

• Novel flute design. easily strip and splice, simplify the installation and maintenance.

• Low smoke, zero halogen and flame retardant sheath.

Single mode optical fiber (ITU-T Rec. G.657.A1)

• Fiber Type

· Type: Single mode

· Material: Doped silica

• Attenuation Coefficient

· @ 1310 nm: ≤ 0.35 dB/km

· @ 1383 nm: ≤ 0.32 dB/km

· @ 1550 nm: ≤ 0.21 dB/km

· @ 1625 nm: ≤ 0.24 dB/km

• Point Discontinuity

· Value: ≤ 0.05 dB

• Cable Cut-off Wavelength

· Value: ≤ 1260 nm

• Zero-Dispersion Wavelength

· Range: 1300 ~ 1324 nm

• Zero-Dispersion Slope

· Value: ≤ 0.092 ps/(nm²·km)

• Chromatic Dispersion

· @ 1288 ~ 1339 nm: ≤ 3.5 ps/(nm·km)

· @ 1271 ~ 1360 nm: ≤ 5.3 ps/(nm·km)

· @ 1550 nm: ≤ 18 ps/(nm·km)

· @ 1625 nm: ≤ 22 ps/(nm·km)

• PMDQ (Polarization Mode Dispersion Quadrature Average)

· Value: ≤ 0.2 ps/km¹/²

• Mode Field Diameter

· @ 1310 nm: 9.2 ± 0.4 µm

• Core / Clad Concentricity Error

· Value: ≤ 0.5 µm

• Cladding Diameter

· Value: 125.0 ± 0.7 µm

• Cladding Non-Circularity

· Value: ≤ 1.0%

• Primary Coating Diameter

· Value: 245 ± 10 µm

• Proof Test Level

· Value: 100 kpsi (0.69 GPa), 1%

• Temperature Dependence

· Temperature Range: 0°C ~ +70°C @ 1310 & 1550 nm

· Attenuation: ≤ 0.1 dB/km
