КПС нг(А)-FRLS Unshielded 4 Cores Fire Alarm Cable

■ Application:

These cables are designed for installation in fire systems to connect fire alarms and other related equipment.Suitable for both dry and moist areas, as well as for fixed open-air installations.The cable type with electrostatic screening (St) protects the transmission circuits against external electrical interferences.

■ Standards:

IEC60331-23-2003

IEC60332-3-22-2005

IEC61034-2-2005

IEC60754-1-99

IEC60754-2-99

IEC60331-21:1999

BS EN 61034-2:2005

BS 7629-1:2008
BS EN 50267-2-1:1999

■ Fire Testing:

180 minutes under fire of 750 degrees without short-circuit.

■ Electrical Data (at 20°C):

Minimum Bend Radius: 8 × Diameter

Minimum Insulation Resistance: 200 MΩ/km

Maximum Working Temperature: -15°C to +90°C

Test Voltage (rms value): 1000 V

Maximum Operating Voltage (peak value): 300 V / 500 V

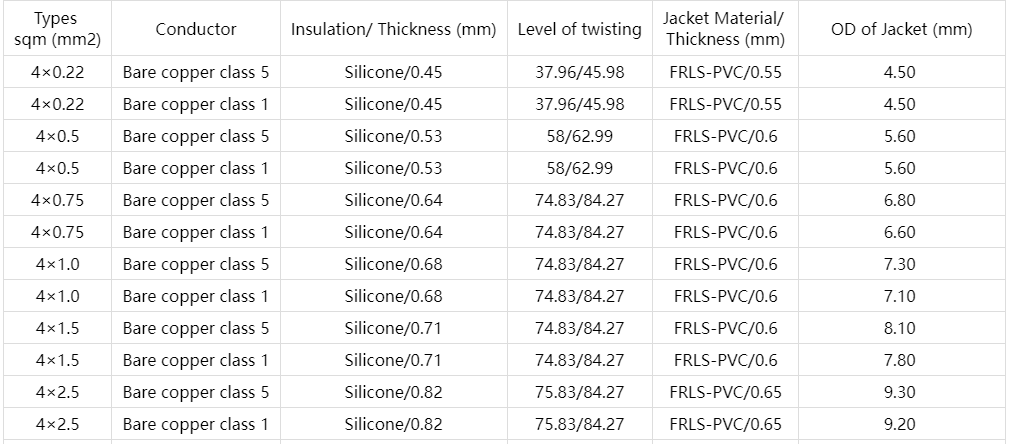

■ Types and Mechanical Data:

■ Order Information:

Marking: HELLOSIGNAL KT1401 КПС нг(А)-FRLS Unshielded 4×***MM2 CABLE MMDDYYYY

Packaging: 100m/Roll,200m/Roll, 300m/Spool,Pallet

Brand: HELLOSIGNAL®OEM
