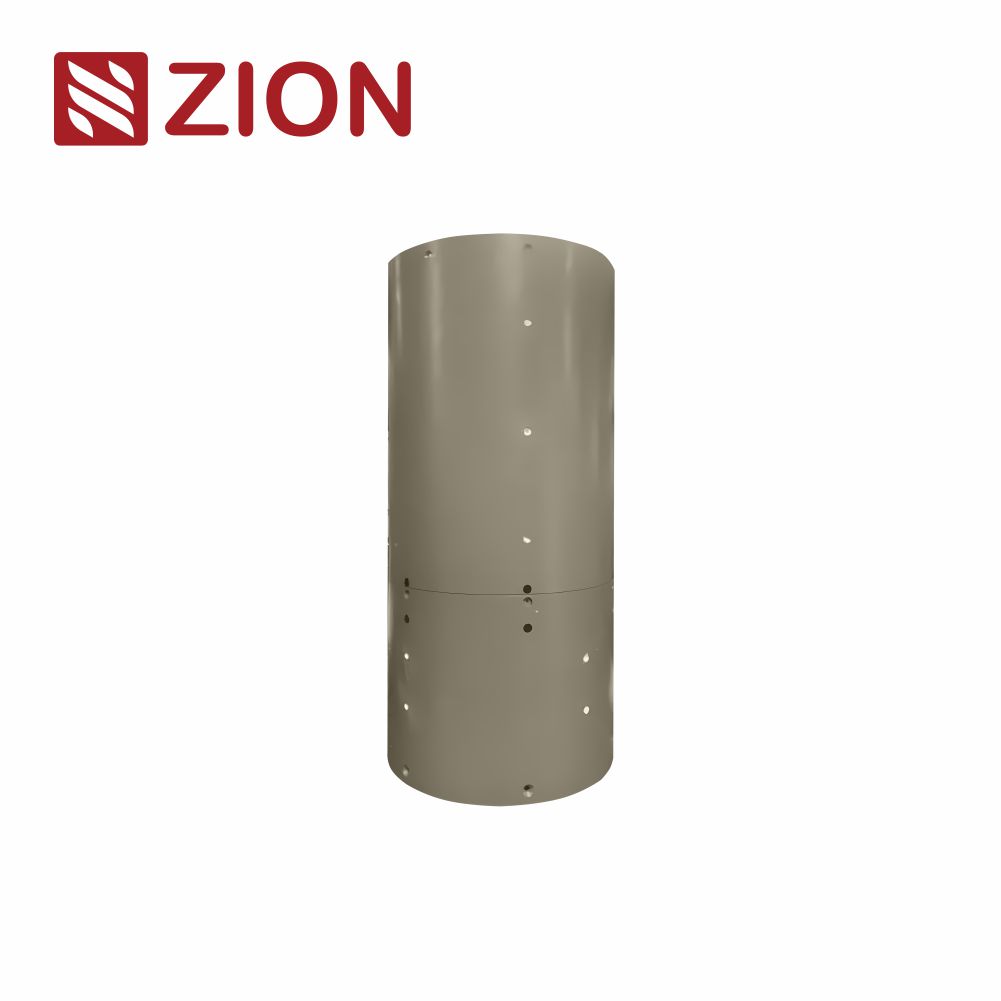

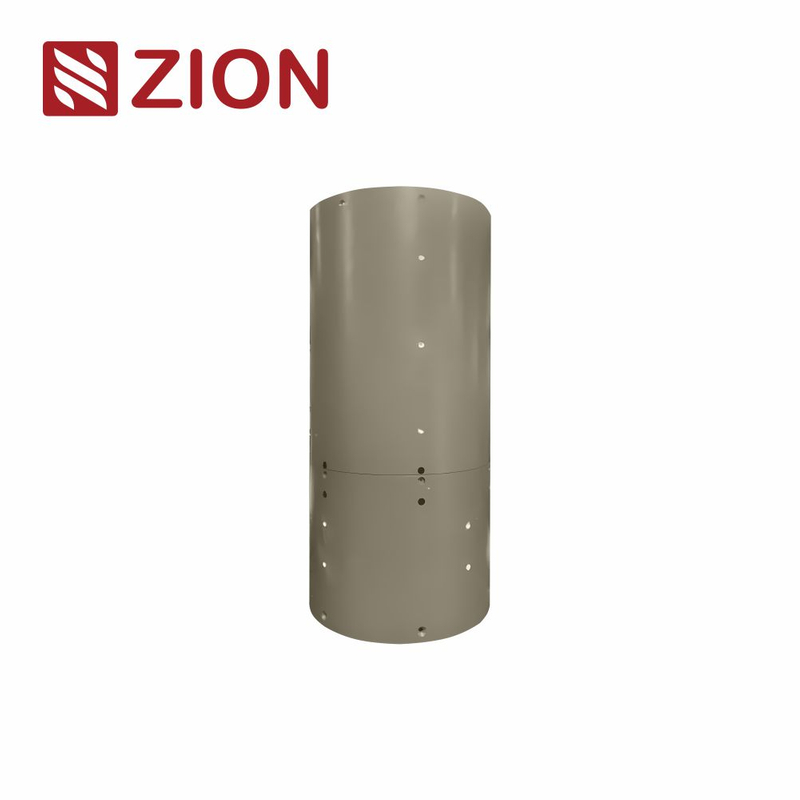

Fiber Optic Guidance Wire
hellosignal
Optical Fiber cable
5 km / 10 km / 15 km / 20 km / 30 km
roll, carton, pallet
Normally 15 working days
NINGBO, SHANGHAI

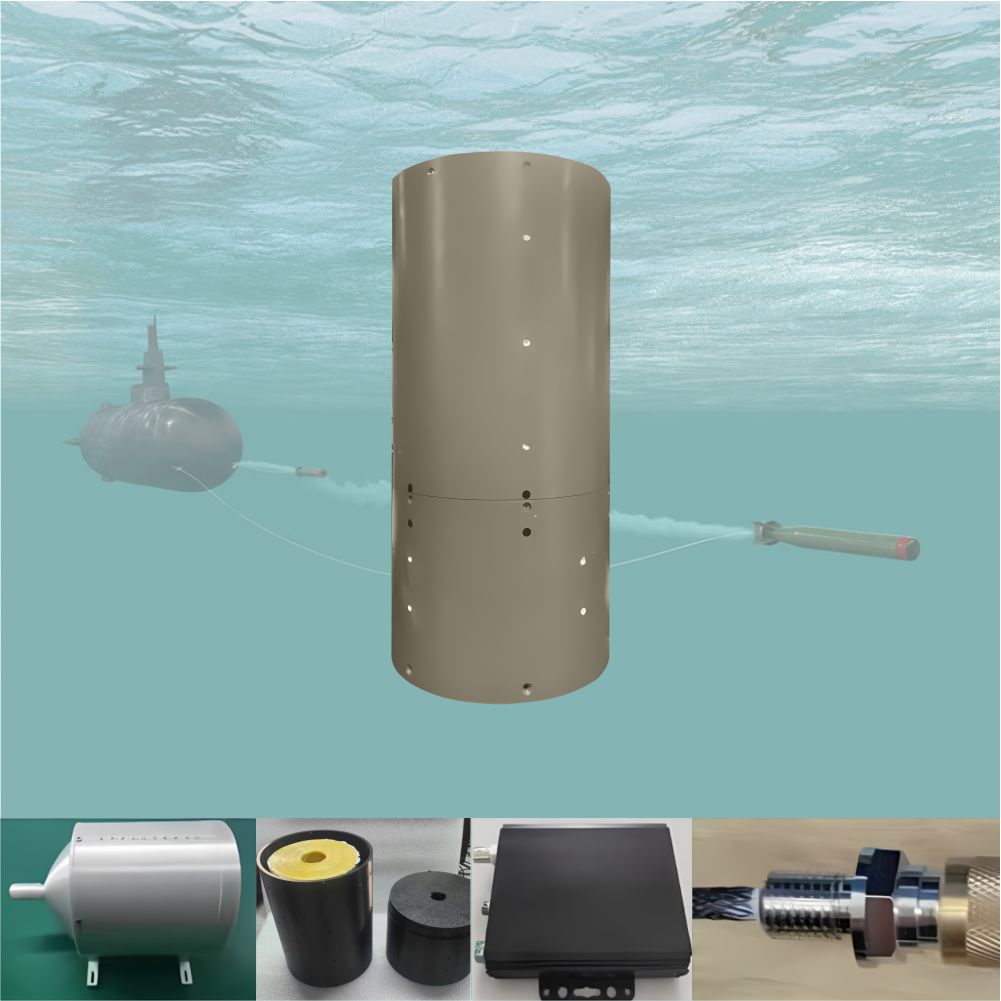

Fiber Optic Spools, Fiber Optic Guidance Wire is a mission-critical tethered communications solution for torpedoes, ROVs, AUVs, undersea vehicles, and deep-sea military observation systems. Ultra-stable and low-latency communications enable high-precision guidance and control for underwater platforms.
Available with aramid-reinforced G657A2 bend-insensitive single-mode fiber cable, this fiber optic tether enables 1–30 km highly reliable data communications, high-tensile performance, and immunity to electromagnetic interference. Combined with IP68 water-sealed connectors and optical transceivers, it provides a highly reliable solution for military-grade underwater control and guidance systems.
This fiber optic wire provides an unbreakable ‘wired’ stability solution for aerial, surface, and underwater mission-critical applications, where traditional copper cable and RF systems cannot operate. This solution provides high stability, reliability, and instant-response communications – perfect for next-generation underwater execution and weapon-guidance systems.
Fiber Guidance for Undersea Platforms
Stable bi-directional signaling communication for torpedoes, AUV/ROV platforms, and tactical military applications.
Ultra-Stable Long-Distance 1–30 km Link
Limited loss, suitable for long-distance high-fidelity signaling and data transmission.
G657A2 Bend-Insensitive Fiber
Ultra-low attenuation:
200 N for plasma-cut launch trajectories and high-stress operations.
Internal Pay-Off for Easy Deployment
Prevents fiber entangling for mission-critical setups and preparations.
Wide Temperature & Environment Resistance
Operation of –40°C to +60°C for military and deep-sea applications.
Water-Sealed Hybrid Connectors
FC, RJ45, RS232/RS485 solution, or waterproof connection.
Torpedo & AUV integration via custom watertight surface.
Optical Characteristics
Item | Specification |
Fiber Type | G657A2 Singlemode |
Wavelengths | 1310 nm / 1550 nm |
Attenuation | <0.35 dB/km @ 1310 nm<0.25 dB/km @ 1550 nm |
Return Loss | ≥50 dB (UPC) |
Optical Connectors | FC/UPC (default), LC/UPC optional |
Optical Band Support | 1310/1550 nm dual-band |
Cable Structure
Item | Specification |
Cable Diameter | 0.50 mm or 0.65 mm |
Jacket Material | Aramid Reinforcement + PVC |
Tight Buffer Color | Light Yellow |
Cable Density | 1.25 g/cm³ or 1.3 g/cm³ |
Unit Weight | 248 g/km or 430 g/km |
Fiber Count | 1 core (default), 2 cores optional |
Mechanical Performance
Item | Specification |
Tensile Strength | >150 N (0.50 mm) >200 N (0.65 mm) |
Crush Resistance | Customizable |
Minimum Bend Radius | ≤10 mm (depending on fiber length) |
Release Method | Internal Pay-Off, Anti-Tangle |
Waterproof Rating | Custom watertight connector system |
Electrical & Data Interfaces
Item | Specification |
Optical Port | FC/UPC (default) |
Electrical Ports | RJ45 Ethernet / RS232 / RS485 (optional) |
Transmitter Unit | Supported (customizable) |
Receiver Unit | Supported (customizable) |
Hybrid Interfaces | Fiber + copper optional for telemetry |
Environmental Performance
Item | Specification |
Operating Temperature | –40°C to +60°C |
Storage Temperature | –40°C to +70°C |
Salt Spray Resistance | Optional |
Deep-Sea Waterproofing | Optional (100–500 m depth rating) |

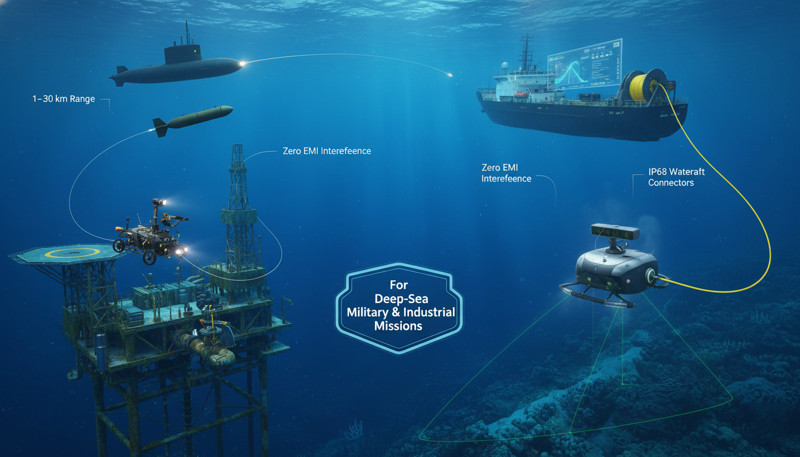

Underwater Torpedo Fiber Guidance Solution
Tethered ROV / AUV Applications
Undersea Unmanned Vehicles (UUVs) & Platforms
Deep-Sea Military Operations & Discoveries
Mission-Critical Tactical Surveillance Systems
Long-Range 1–30km Real-Time Navigation and Command
Military RF Contested or EMI Adaptations

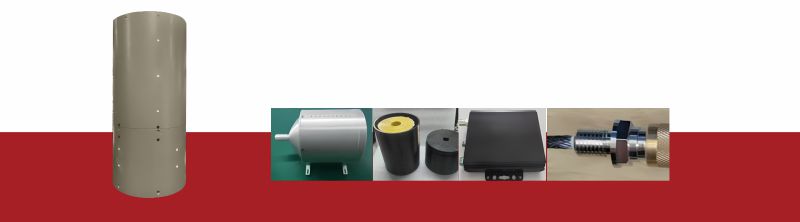

ZION manufactures complete Fiber Optic Solutions including:
Micro-Diameter Fiber

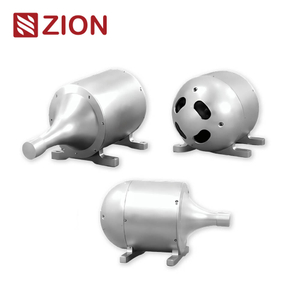

High-Tensile Resistant Reels
Waterproof Connectors
Seamless Optical Transceiver solutions
We provide full OEM and ODM. Suitable for high-velocity underwater platforms, torpedo/defense systems, ROV/AUVs, and application-segment-specific AUVs.
James is a technical manager and associate at Zion Communication.
Specializes in Optical Fiber communications, FTTH Solutions,
Fiber optic cables, ADSS cable, and ODN networks.
