Selecting the right type of fiber patch cord connector is critical to fulfill signal performance parameters, convenience of installation work, and meeting overall network growth. As a network uses various connector types: LC, SC, ST, FC (to explain in short) – you can choose the best alternative according to your technical situation. Each offers unique advantages, and learning their differences helps you with that.
This guide comprises the most popular fiber optic connectors, making it easy for you to determine the best fit for your network environment, compatibility, and density requirements.
Fiber patch cord connectors are terminations at either end of fiber optic cables, allowing compatibility with transceivers, patch panels, and various fiber equipment. The type of connector has a big impact on the quality of signal, whether it's easy to install and widely accepted. It should be considered in your networking system.

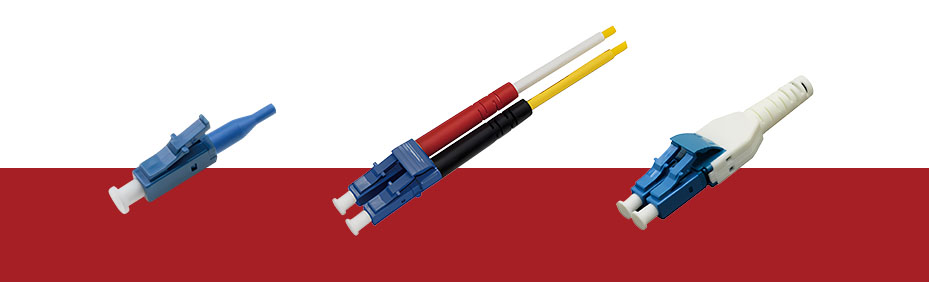

Size: Compact; smallest of the four (SC has a surface area size of around half).
Design: Easy to operate push-pull latch mechanism.
Typical Use: High-density areas including server rooms, telco swaps, and FTTH nodes.
Pros:
Space-saving, best for high-density racks.
Simple to use.
Remarkably low perturbation losses and superior light-preserving properties.
Cons:
Risk of small errors which necessitate careful work.
Best For:
10G/40G/100G networks, dense patch panels, but not only those; scalable systems.
Size: Medium; approximately twice the length of LC.
Design: Push-pull snap-in design.
Typical Use: Telecom and FTTH deployments, as well as enterprise LAN.
Pros:
Switching, adding, and removing devices is a breeze.
Super sturdy and very convenient.
Cons:
Formed differently than LC, limiting amount of connections.
Best For:
Traditional fiber networks and residential fiber deployments.

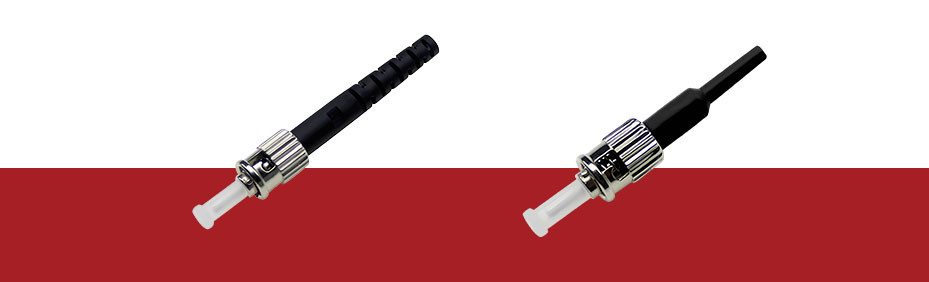

Size: Similar in size to SC.
Design: Curved: Bayonetaken.
Typical Use: Mostly in old installations and industrial networks.
Pros:
Mechanical locking is definitely secured.
Super intuitive for multimode fiber-related connections.
Cons:
Obsolete, may not be appropriate any longer to serve modern, high-density setups.
Not spare for current network with single mode fiber lines.
Best For:
Labs, field installations, and multimode networks over the years.

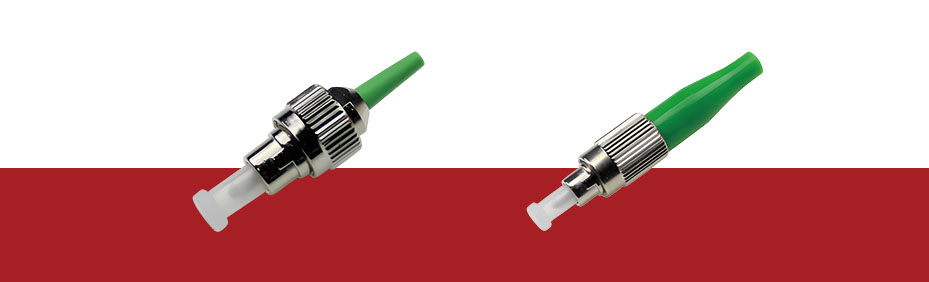

Size: The dimensions match those of SC.
Design: Threaded screw-on design is what you might call it.
Typical Use: Is prevalent on single-mode fiber networks, machines working in high vibrational or outdoor conditions.
Pros:
Very reliable and well-insulated from electrical interference.
Designed for areas like roadside and towers where highly dynamic movement exists.
Cons:
The slope will connect/disconnect slower.
Has large size and not much physiologic advantage.
Best For:
Long-haul telecommunication networks, major scale and industrial setups, and time-critical optical measurements.
Connector | Size | Coupling Type | Best For | Advantages | Disadvantages |
LC | Small | Push-pull latch | High-density, data centers | Compact, easy to use, low loss | Fragile, needs careful handling |
SC | Medium | Push-pull snap-in | Telecom, FTTH | Robust, widely used, good performance | Bulkier, less suitable for dense setups |
ST | Medium | Bayonet twist-lock | Legacy, industrial | Secure, easy to connect | Outdated, low port density |
FC | Medium | Threaded screw-on | Precision/industrial use | Very stable, low loss in vibration areas | Slow connection, bulky design |
Here are some quick tips to guide your selection:
✅ Be sure to check for device compatibility: Check and match the connector style to the ports of transceivers, SFP modules, or any of the patch panels.
✅ Consider density requirements: Opt for LC with higher density, like data centers that are too compact.
✅ Think about environmental factors: FC connectors can sustain extreme vibrations and shock, which are typical in outdoor settings.
✅ Fiber mode matters:
Fiber-single mode: they mainly use LC or FC.
Fiber-multimode: SC or ST type is usual; especially old machines.
✅ Future-proofing: LC is becoming more and more common – the courses taught today all almost use it – since it meets the future needs of networks.
Identifying the appropriate fiber patch cord connector means that you'll have a flawless integration, reliable signal delivery, and an upgrade possibility if needed. LC is the de facto connector for all modern, space-constrained setups, yet SC, ST, and FC still find their applications in FTTH, legacy systems, and the industrial sector.
Making the right connector choice today can not only avoid signal issues and time loss but network scalability as well.
