GYTA53 4 Cores OM3 50/125

Technical Parameters

Cable Code

GYTA53

Fiber Count

4

Cable Diameter

13.3 (mm)

Cable Weight

180(kg/km)

Tensile Strength Long/Short term

1000/3000(N)

Crush Resistance Long/Short term

1000/3000(N/100mm)

Bending Radius Static/Dynamic

12.5D/25D(mm)

Storage/Operating Temperature:-40℃to+70℃

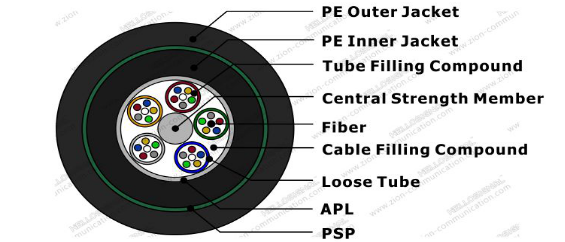

Cross Section

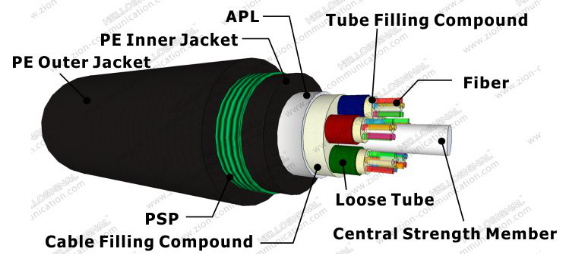

Description

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high
fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around
the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is
applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the
cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath,
the cable is completed with a PE outer sheath.

Characteristics

Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Crush resistance and flexibility;
The following measures are taken to ensure the cable watertight:
(1)Steel wire used as the central strength member;
(2)Loose tube filling compound;
(3)100% cable core filling;
(4)APL moisture barrie;
(5)PSP enhancing moisture-proof;
(6)Water-blocking material

Standards

GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Order Informations

Marking

HELLOSIGNAL GYTA53 4 Cores OM1 62.5/125  xxxxM
(or Per customer's request)

Inner Package

2000m/Spool (or Per customer's request)

Outer Package

Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®  OR OEM
