Tensile Strength Long/Short term
Crush Resistance Long/Short term
Bending Radius Static/Dynamic

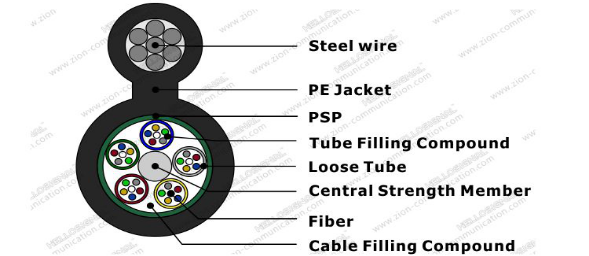

The ﬁbers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are ﬁlled with a water-resistant ﬁlling compound. A steel wire locates in the center of core as a metallic strength member. The tube(and ﬁllers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL) moisture battier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be ﬁgure 8 structure.
▶ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cast.
GYTC8S cable complies with standard YD/T 901-2001 as well as IEC60794-1
HELLOSIGNAL GYTC8S 4 Cores OM1 62.5/125 xxxxM
2000m/Spool (or Per customer's request)
Pallet (or Per customer's request)
Normally 25 days after received the deposit.
HELLOSIGNAL® OR OEM
