GYXTC8S 4 Cores OM3 50/125

Technical Parameters

Cable Code

GYXTC8S

Fiber Count

4

Cable Diameter

8.5x13.5(mm)

Cable Weight

165(kg/km)

Tensile Strength Long/Short term

600/1500(N)

Crush Resistance Long/Short term

1000/3000(N/100mm)

Bending Radius Static/Dynamic

10D/20D(mm)

Storage/Operating Temperature:-40℃to+70℃

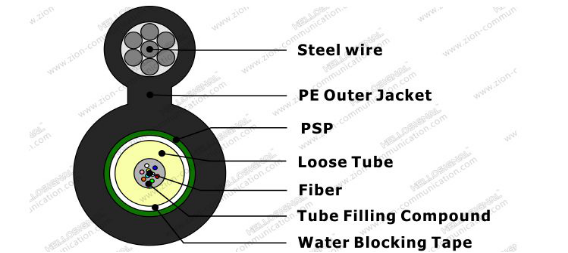

Cross Section

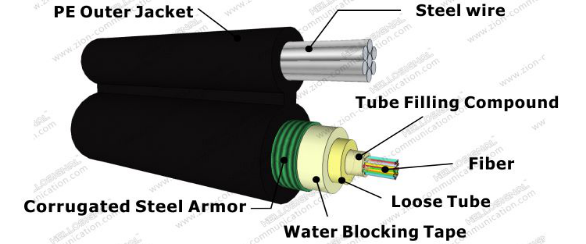

Description

The fibers,250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The
tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an
Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable
accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be
figure 8 structure.

Characteristics

High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection fiber;
The following measures are taken to ensure the cable watertight:
(1)Steel wire used as the central strength member;
(2)Loose tube filling compound;
(3)100% cable core filling;
(4)APL moisture barrier.

Standards

GYXTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

Order Informations

Marking

HELLOSIGNAL GYXTC8S 4 Cores OM1 62.5/125 xxxxM
(or Per customer's request)

Inner Package

2000m/Spool (or Per customer's request)

Outer Package

Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®  OR OEM
