Author: Site Editor Publish Time: 27-03-2026 Origin: Site
A practical engineering reference for selecting MPO fiber cabling based on application, fiber count, polarity, connector gender, loss grade, jacket type, and installed length.
Choose MPO by link role first: trunk, patch, harness, or breakout.
Confirm fiber count, polarity, and connector gender before price comparison.
Use low-loss, correct jacket, and real routing length to reduce risk in deployment.
Choosing the right MPO fiber cable is not only a connector decision. In real projects, it affects channel compatibility, migration path, insertion loss budget, rack routing, spares strategy, and field troubleshooting effort.
A reliable MPO selection workflow should move in a fixed order: application, fiber count, polarity, connector gender, loss grade, jacket, and finished length. Skipping this sequence is one of the main reasons buyers end up with assemblies that look correct on paper but fail in deployment.
| Selection Factor | What It Controls | Typical Risk If Wrong | Who Should Confirm |
|---|---|---|---|
| Application | Cable type and link role | Wrong assembly format | Engineer / Integrator |
| Fiber count | Transceiver architecture and density | Unused fibers or no upgrade path | Designer / Buyer |
| Polarity | Tx/Rx mapping logic | Channel not working at turn-up | Engineer / Installer |
| Connector gender | Physical mating | Cannot connect in field | Installer / Buyer |
| Loss grade | Channel loss budget | Marginal performance | Engineer / QA |
| Jacket & length | Routing, compliance, maintainability | Slack, tension, poor cable management | Installer / Facility team |
The first and most important question is where the cable sits in the link. MPO trunk, patch, harness, and breakout assemblies are not interchangeable once the routing and termination logic are fixed.

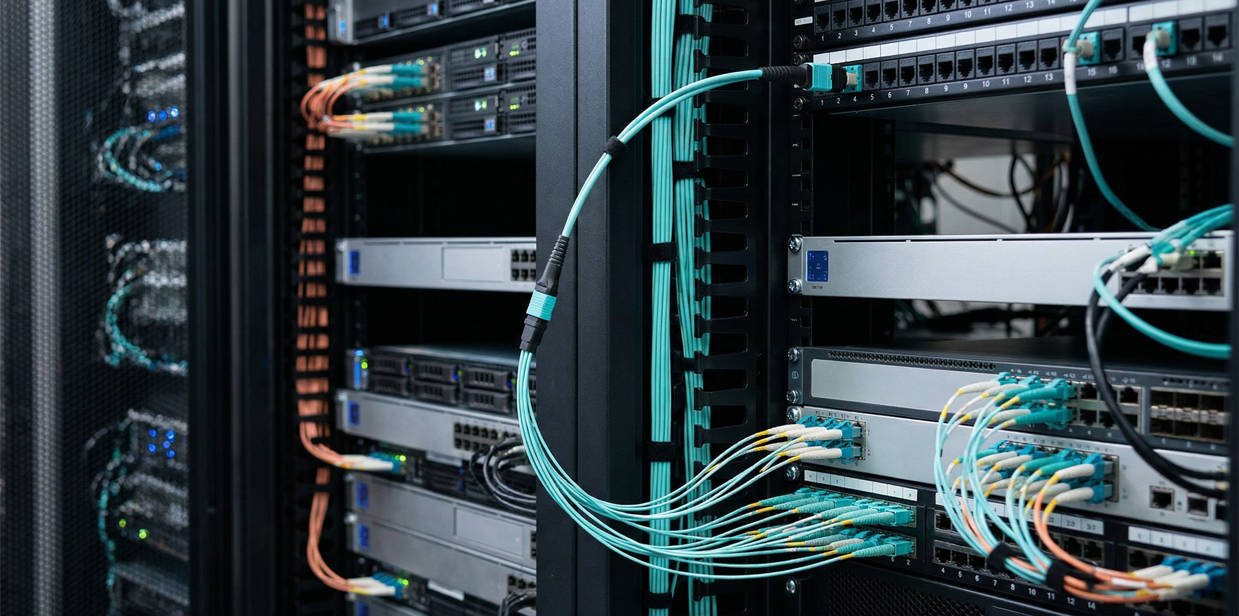

If the cable is used between patching zones or distribution points, trunk-style assemblies usually make the most sense. If the cable needs to connect a high-density backbone to active equipment ports, harness or breakout assemblies are often more suitable.
| Cable Type | Typical Use | Best Fit | Selection Note |
|---|---|---|---|
| MPO Trunk Cable | Backbone links between distribution points | Structured cabling and patch fields | Check polarity and end configuration carefully |
| MPO Patch Cord | Short equipment or panel interconnects | Inside cabinets and racks | Length discipline matters for cable management |
| MPO Harness Cable | One MPO to multiple LC or SC legs | Connecting to active equipment ports | Confirm breakout count and branch labeling |
| MPO Fan-Out / Breakout | Protected branch transition from ribbon to legs | High-density transition points | Useful where branch protection is important |

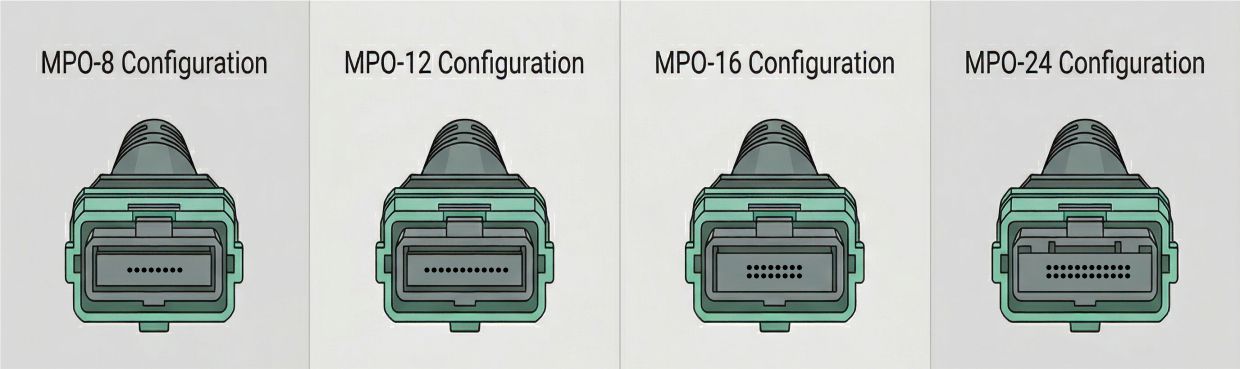

Fiber count should match the optical architecture, not only what is common in stock. MPO-8, MPO-12, MPO-16, and MPO-24 each make sense in different network designs, especially when parallel optics and future migration are considered.
The practical question is not “Which count is popular?” but “Which count aligns with the transceiver, cassette logic, and future scaling plan?”
| Fiber Count | Typical Positioning | Strength | Watch-Out |
|---|---|---|---|
| MPO-8 | Parallel optics applications | Efficient for 8-fiber active links | May not fit all structured cabling conventions |
| MPO-12 | General structured cabling | Widely available and broadly compatible | Unused fibers may appear in some active links |
| MPO-16 | Newer high-speed migration paths | Good for denser future-oriented design | Compatibility planning is essential |
| MPO-24 | Higher-density backbone routing | Space efficient at panel level | Breakout planning becomes more important |

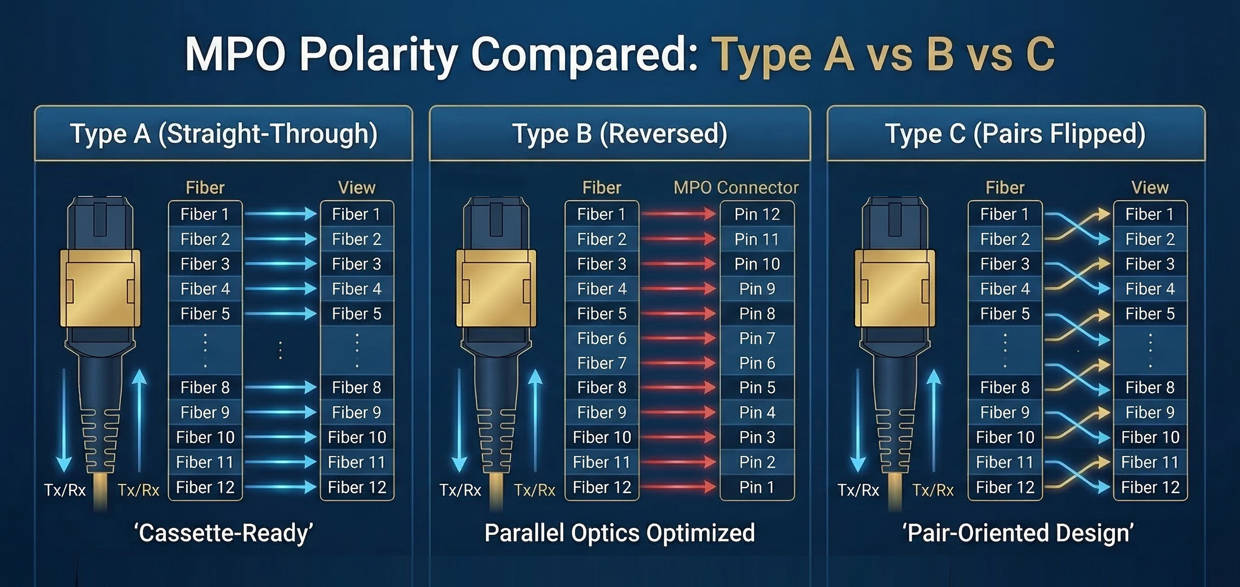

Polarity is where many MPO projects fail. Type A, Type B, and Type C are not just labels. They define how fibers map from one end of the channel to the other, and whether transmit and receive paths land correctly.
If your link includes cassettes, adapters, and multiple trunk segments, polarity must be checked at channel level. Choosing a single cable without looking at the entire path is a common cause of commissioning delays.
| Polarity Type | Use Context | Why It Matters | Practical Check |
|---|---|---|---|
| Type A | Common structured paths depending on cassette logic | Maintains defined fiber order | Verify full channel mapping |
| Type B | Used in some direct MPO system designs | Changes end relationship for Tx/Rx logic | Confirm equipment-side expectations |
| Type C | Specific mapped pair arrangements | Can simplify certain duplex conversions | Avoid mixing methods inside one channel |
MPO male connectors include guide pins. MPO female connectors do not. The correct choice depends entirely on the mating interface at each end of the channel.
This is a small detail with large consequences. A correct fiber count and correct polarity still do not help if the connector gender cannot mate with the cassette, adapter, or equipment interface in the field.
| Gender | Physical Feature | Check Against | Risk If Assumed |
|---|---|---|---|
| Male | Guide pins present | Adapter, cassette, transceiver side | Cannot mate or damages planning flow |
| Female | No guide pins | Partner interface definition | Site rework and replacement cost |
Loss grade is not only a performance specification. It is also a risk-management choice. Standard-loss assemblies may be acceptable for simple channels, but low-loss assemblies become more valuable as the channel grows longer or includes more mating points.
In tighter budgets or future high-speed migration plans, low-loss components provide more design margin and reduce the chance that field measurements sit too close to the acceptable limit.
| Loss Grade | Best Used When | Cost Position | Engineering View |
|---|---|---|---|
| Standard Loss | Shorter and simpler channels | Lower upfront cost | May be enough where margin is comfortable |
| Low Loss | More complex or performance-sensitive links | Higher upfront cost | Better margin for multi-connector channels and upgrades |
Once optical logic is fixed, physical routing becomes the next decision point. Jacket type should match the installation environment, handling conditions, and any applicable indoor building requirements.
Length should be measured against the actual route, not straight-line distance. Too short creates tension at ports or cassette faces. Too long creates slack, difficult dressing, and a less maintainable rack layout.
| Physical Factor | What to Check | Common Error | Resulting Issue |
|---|---|---|---|
| Jacket Type | Indoor use, flexibility, compliance, rack handling | Selecting by stock habit only | Installation mismatch or handling issues |
| Installed Length | Real routing path and service loop needs | Using cabinet width as estimate | Slack or tension at the termination point |
| Labeling / Leg ID | Maintenance readability and installation speed | No branch identification | Longer troubleshooting time |
For fast evaluation, use the table below as a structured decision filter. It is not a substitute for the channel drawing, but it helps engineers and buyers eliminate wrong options quickly before RFQ or sampling.
| If Your Situation Is... | Choose This First | Then Confirm | Main Risk to Avoid |
|---|---|---|---|
| Backbone link between patching zones | MPO trunk cable | Fiber count, polarity, end gender | Wrong mapping across the full channel |
| MPO backbone to LC equipment ports | Harness or breakout cable | Branch count, connector type, labeling | Incorrect fan-out structure for port layout |
| Simple short interconnect inside a cabinet | MPO patch cable | Exact length and gender | Excess slack and poor maintainability |
| High-density channel with multiple mating points | Low-loss MPO components | Total budget and test method | Loss margin too close to design limit |
| Project has future migration in view | Review fiber count with upgrade path | Transceiver roadmap and cassette logic | Choosing a count that limits later changes |
| RFQ is being prepared by procurement | Lock the technical fields in the PO | Application, count, polarity, gender, loss, jacket, length | Ambiguous quotation and wrong shipped configuration |
Most buying mistakes happen when teams try to simplify MPO selection into a single line item. In practice, the cost of the wrong choice is usually not the cable itself. It is delay, on-site labor, extra shipping, retesting, and inconsistent documentation.
| Mistake | Immediate Effect | Cost Impact | Prevention |
|---|---|---|---|
| Choosing by habit instead of application | Wrong cable structure | Reorder and installation delay | Map the real link role first |
| Ignoring polarity until site work | Channel will not turn up correctly | Troubleshooting labor and downtime | Review full mapping before PO |
| Overlooking connector gender | Physical mismatch | Replacement and schedule loss | State gender on both ends explicitly |
| Buying on lowest price only | Loss margin may be too tight | Higher lifecycle support cost | Compare total channel requirement, not unit price only |
| Estimating length too loosely | Slack or tension in rack routing | Poor maintainability and repatching work | Measure the installed route carefully |

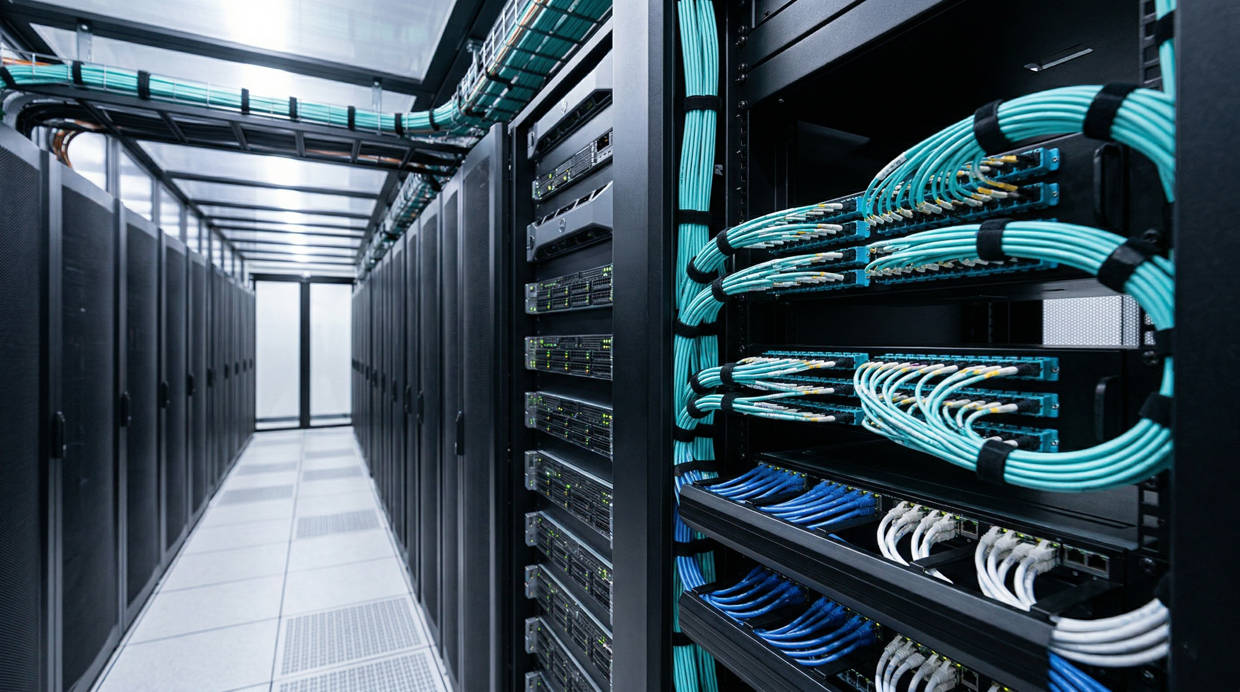

The “right” MPO cable changes with the operating environment. A data center spine-leaf backbone, a cabinet interconnect, and a cassette-based cross-connect do not prioritize exactly the same variables.
| Scenario | Likely Priority | Recommended Focus | Why |
|---|---|---|---|
| Data center backbone | Density and channel consistency | Trunk type, polarity, low loss | Multiple interconnect points and future scaling matter |
| Inside cabinet patching | Routing cleanliness | Short patch assemblies and exact length | Maintainability depends on cable dressing quality |
| MPO to equipment breakout | Port matching and branch protection | Harness or fan-out design | Directly affects installation speed and port logic |
| Migration-oriented build | Future adaptability | Fiber count roadmap and low-loss margin | Reduces redesign pressure during later upgrades |
Start from the transceiver architecture and channel design. MPO-12 is a common baseline for structured cabling, but MPO-8, MPO-16, or MPO-24 may be a better fit depending on active optics and upgrade strategy.
Polarity should be chosen at the channel level, not cable-by-cable. Review the full path including cassettes, adapters, and equipment interfaces before ordering.
No. Male connectors have guide pins, and female connectors do not. The correct gender depends on the mating interface on each end of the channel.
Low-loss MPO is usually worth considering when the channel includes multiple mating points, limited loss budget, or future high-speed migration requirements. It offers more margin and lowers system risk.
Yes. In practical projects, custom length, connector configuration, branch format, and identification labels are often necessary to match the rack layout and maintenance requirements.
Provide the application, fiber count, polarity type, connector gender at both ends, loss requirement, jacket preference, and installed length. This allows faster matching and reduces quoting ambiguity.
The right MPO fiber cable is the one that fits the link architecture, not the one with the shortest datasheet line. Application comes first, then fiber count, polarity, connector gender, loss grade, jacket, and length.
For engineers and procurement teams, the most practical approach is to turn these factors into a fixed RFQ checklist. That improves compatibility, reduces site corrections, and makes the system easier to maintain during future upgrades.
Send your application details, fiber count, polarity, connector gender, loss requirement, jacket preference, and installed length. Our team can help narrow down a practical MPO trunk, patch, harness, or breakout configuration.
