A practical engineering reference for cleaning MPO connectors correctly, reducing multi-fiber contamination risk, and maintaining stable optical performance in high-density networks.
One contaminated MPO end face can affect multiple fibers at the same time, so cleaning has a larger system impact than with LC or SC connectors.
The safest field workflow is inspect, clean, inspect again, then connect.
Dedicated MPO cleaning tools reduce the risk of residue, lint, ferrule scratches, and repeated troubleshooting.
MPO connectors are multi-fiber interfaces used in high-density optical cabling, typically in data centers, backbone links, and structured fiber systems. Unlike LC or SC connectors, a single MPO connector carries multiple fibers in one ferrule, so contamination on one interface can affect several channels simultaneously.
This changes the maintenance threshold. Cleaning is no longer a minor housekeeping task. It becomes part of link stability, insertion loss control, test accuracy, and long-term serviceability.
| Item | LC / SC Single-Fiber Connector | MPO Multi-Fiber Connector |
|---|---|---|
| Fibers per interface | 1 | Multiple fibers in one ferrule |
| Contamination impact | Usually one channel | Can affect several channels at once |
| Cleaning tolerance | Simpler field handling | Requires connector-specific tools and better discipline |
| Troubleshooting consequence | Localized issue | System-level performance uncertainty |
MPO ferrules have a denser optical interface, tighter alignment dependency, and a larger area where dust, skin oil, or residue can affect performance. The result is a higher probability of loss variation if connectors are handled without a repeatable cleaning workflow.
The performance margin also becomes tighter as systems move from legacy speeds to 40G, 100G, 400G, and beyond. In these environments, contamination can reduce optical stability even when the connector looks visually acceptable to the naked eye.
| Why cleaning matters | Engineering effect | What happens if ignored |
|---|---|---|
| Multiple fibers share one interface | One dirty end face influences several channels | Wider service impact than single-fiber connectors |
| High-density links are less tolerant | Tighter loss budget and less room for inconsistency | Unstable test results and marginal links |
| Adapters can also carry contamination | A clean connector can be re-contaminated during insertion | Repeated cleaning cycle and wasted installation time |
| Poor cleaning method can scratch ferrules | Temporary issue becomes permanent damage risk | Connector replacement and avoidable downtime |
The most reliable workflow is simple: inspect, clean, inspect again, then connect. Even when inspection tools are limited in the field, cleaning should still be controlled, connector-specific, and repeatable.
Keep dust caps on until the connector is actually being handled. Avoid placing ferrules on packaging, panels, clothing, or any uncontrolled surface. In active project environments, contamination often comes from handling habits rather than from the connector itself.
Check whether the interface is MPO male, MPO female, or an MPO adapter port. Cleaning tools must match the connector geometry. A correct match reduces the risk of incomplete contact or accidental damage around guide-pin areas.

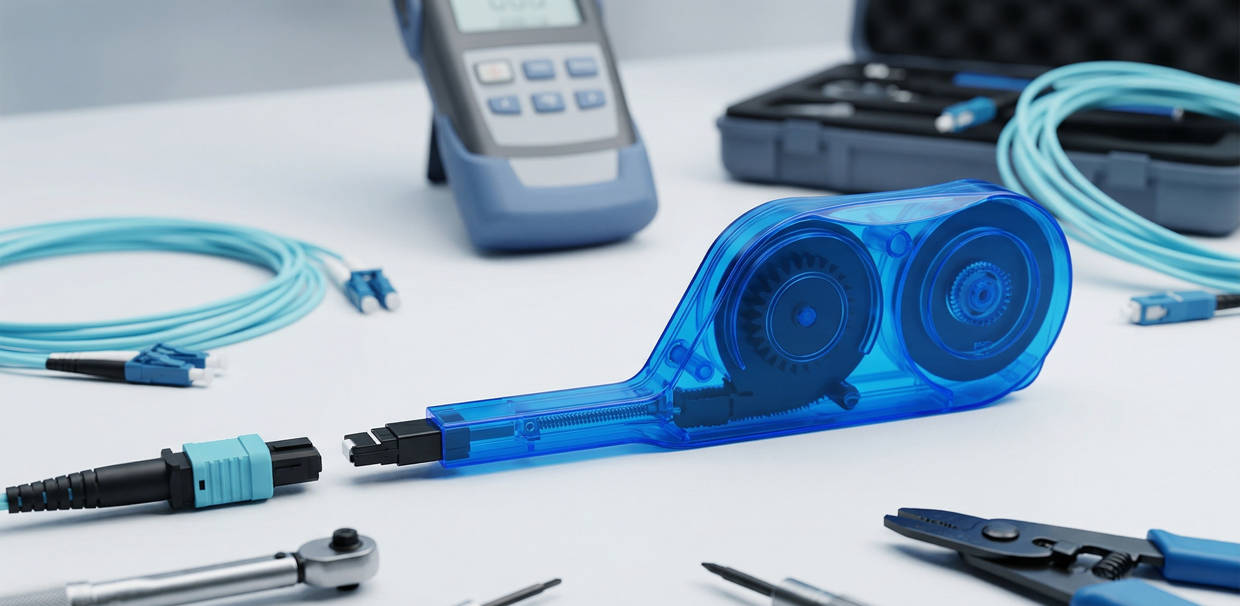

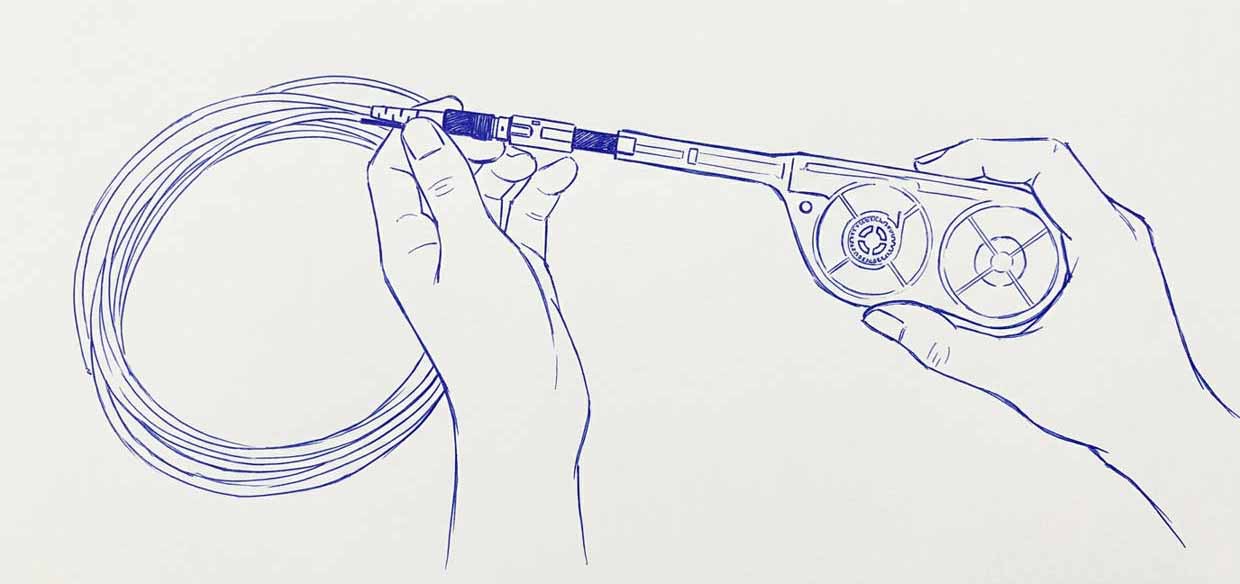

Use an MPO one-click cleaner or lint-free MPO cleaning cassette. For normal dust contamination, dry cleaning is usually the first choice. If residue is heavier, a controlled wet-to-dry method can be used with an approved fiber-optic solvent applied to the cleaning medium, not directly to the ferrule.
A cleaned connector inserted into a contaminated port can immediately pick up particles again. This is why adapter cleaning is part of the same maintenance task, not a separate optional step.
After cleaning, inspect if equipment is available. Then connect immediately or protect the interface with a dust cap. Leaving a cleaned connector exposed for too long defeats the maintenance cycle.
A stable maintenance process requires more than one tool. The practical goal is not to build a complex kit, but to cover the full field workflow: dry cleaning, wet-to-dry cleaning when required, adapter cleaning, inspection, and storage protection.
| Tool | Primary use | When to use it | Decision note |
|---|---|---|---|
| MPO one-click cleaner | Fast dry cleaning for connector and adapter access | Routine field work and reconnection | Best default tool for repeatable site maintenance |
| MPO cleaning cassette | Controlled lint-free contact surface | Bench work, assembly, or wet-to-dry cleaning | Useful where technicians need more controlled strokes |
| Inspection probe / microscope | Verify cleanliness and detect damage | Commissioning, troubleshooting, critical links | Reduces false troubleshooting paths |
| Approved fiber-optic solvent | Wet-to-dry removal of residue or oil | Use only when dry cleaning is insufficient | Too much solvent can leave residue |
| Dust caps and sealed packaging | Protection during storage and handling | Before and after every maintenance action | Prevention is cheaper than repeated cleaning |
| Maintenance trigger | Recommended action | Why it matters |
|---|---|---|
| Before first connection | Inspect and clean if needed | New does not always mean contamination-free |
| Before reconnection | Clean connector and adapter | Prevents immediate re-contamination |
| High insertion loss or unstable test results | Inspect, clean, retest before changing hardware | Lowest-cost troubleshooting step |
| Dusty, construction-stage, or high-touch environment | Increase inspection frequency | Environmental exposure raises contamination rate |
Most connector cleaning failures are procedural rather than technical. The wrong material, too much solvent, poor handling, or skipping adapter cleaning often creates the same symptoms as a physical link defect.
| Common mistake | Immediate consequence | Longer-term risk | Safer practice |
|---|---|---|---|
| Touching the end face | Oil and particle transfer | Repeated cleaning and unstable loss | Handle only by connector housing |
| Using non-fiber cleaning materials | Lint or micro-residue | Reduced optical consistency | Use dedicated MPO cleaning products |
| Overusing solvent | Residue spread | Misdiagnosis during testing | Use controlled wet-to-dry cleaning only when needed |
| Skipping adapter cleaning | Immediate re-contamination | Repeated field rework | Treat connector and port as one cleaning task |
| Assuming new connectors are clean | Hidden contamination enters the link | Early commissioning delay | Inspect before first mating |
For engineering teams, the key question is not whether cleaning matters, but when to stop, when to escalate, and when contamination is the most likely root cause. The table below is designed for rapid field judgment.
| Observed condition | Recommended decision | Risk if skipped | Escalation threshold |
|---|---|---|---|
| New MPO patch cord before first use | Inspect and clean if needed before mating | Unknown contamination enters production link | Escalate only if repeated contamination is found across packaged stock |
| Connector unplugged and reinserted during moves, adds, changes | Clean connector and adapter before reconnection | Immediate loss fluctuation or re-contamination | Escalate if the link remains unstable after clean-retest cycle |
| Unexpected insertion loss or unstable test result | Clean and retest before changing transceivers or replacing assemblies | Unnecessary hardware swap and false troubleshooting path | Escalate after verified clean interfaces still fail |
| Visible residue or oil contamination | Use controlled wet-to-dry cleaning | Dry cleaning alone may smear contamination | Escalate if residue persists after proper tool use |
| Repeated contamination in harsh environment | Increase inspection frequency and strengthen storage discipline | Recurring maintenance cost and link instability | Escalate to workflow or environment control review |
MPO cleaning discipline becomes more important as deployment density, service criticality, and handling frequency increase. The practical maintenance threshold is not the same across all environments.
| Scenario | Why cleaning matters here | Recommended discipline | Operational priority |
|---|---|---|---|
| Data center backbone links | High-density channels and tight loss budgets | Inspect before first mating and before any reconnection | High |
| Patching during moves, adds, changes | Frequent handling increases contamination risk | Routine clean-reconnect workflow | High |
| Commissioning and acceptance testing | Dirty interfaces can distort measurement results | Clean before loss testing or troubleshooting | Very high |
| Construction-stage facilities | Dust exposure is usually higher than steady-state operation | Increase inspection frequency and cap protection | Very high |
| Long-term production racks | Lower handling frequency but high uptime value | Preventive inspection during scheduled maintenance | Medium to high |
Yes. New assemblies should still be inspected and cleaned if necessary before the first mating. Packaging and transport reduce contamination risk, but they do not eliminate it completely.
In many field cases, yes. Dry cleaning with a dedicated MPO cleaner is the preferred first step for dust contamination. Wet-to-dry cleaning is more appropriate when residue or oil is present.
That is not recommended. Only approved fiber-optic solvents and connector-specific cleaning materials should be used. General-purpose materials can leave lint, residue, or create ferrule damage risk.
Yes. If only the connector is cleaned, the interface can be contaminated again during insertion. Connector cleaning and adapter cleaning should be treated as one workflow.
After a verified clean-retest cycle, the issue may involve physical damage, polarity mapping, cable stress, or transceiver-side variables. At that point, troubleshooting should move beyond contamination as the primary assumption.
Proper MPO cleaning is a basic but high-value maintenance action. Because one connector can affect multiple fibers, a single contaminated interface can create broader service impact than a conventional single-fiber connection. For engineering teams, the right process is clear: protect the connector, inspect before mating, use dedicated MPO cleaning tools, clean the adapter as well, and retest before escalating to more expensive troubleshooting.
In practical terms, the most effective recommendation is to standardize a clean-reconnect workflow for commissioning, MAC work, and fault isolation. This keeps loss performance more stable, reduces misdiagnosis, and improves long-term maintainability in high-density optical systems.
Share your connector type, fiber count, application environment, cleaning workflow, and maintenance concerns. ZION can help align the cleaning method with your patching architecture, testing plan, and deployment conditions.
