A practical engineering reference for buyers, integrators, and project teams who need to verify polarity, connector gender, fiber count, insertion loss, jacket selection, and project execution details before placing an MPO trunk cable order.
Most ordering mistakes come from polarity mismatch, connector gender confusion, and incomplete project labeling.
Insertion loss grade, fiber type, and jacket selection should be matched to the actual channel design, not copied from a previous PO.
A complete MPO trunk order should define optical, mechanical, packaging, and documentation requirements together.
An MPO trunk cable is a factory-terminated multi-fiber backbone assembly used to connect patch panels, MPO cassettes, and active equipment in high-density fiber systems. It is designed to reduce on-site termination work, improve deployment speed, and keep channel performance more consistent across large installations.
For procurement teams, the critical point is that an MPO trunk cable is not defined by length alone. It is a configured assembly that combines optical mapping, connector format, cable construction, labeling logic, and factory test expectations in one product.
| Item | What It Means | Why It Matters |
|---|---|---|
| Fiber count | Number of fibers in the trunk | Affects breakout architecture, cassette compatibility, and future capacity |
| Polarity | Fiber mapping from one end to the other | A wrong polarity can make a physically installed link unusable |
| Connector gender | Male or female MPO interface | Incorrect mating prevents proper connection |
| Jacket / labeling / testing | Mechanical and delivery configuration | Directly affects installation speed, site compliance, and traceability |
Common options include 8F, 12F, 24F, and higher-count trunks for aggregation or backbone use. The right count depends on transceiver strategy, cassette format, and expansion planning.
Method A, Method B, and Method C are not interchangeable. The correct polarity must be selected according to the full channel design, including cassettes, patch cords, and equipment port logic.
Male MPO connectors have guide pins. Female MPO connectors do not. This choice must match the mating hardware on each end of the link.
Standard loss may be sufficient for short and simple channels. Low-loss or elite-grade assemblies are often preferred when the total channel includes multiple mated pairs or tighter link budgets.
Singlemode OS2 and multimode OM3 / OM4 / OM5 are not interchangeable. Fiber type should follow the optics and distance requirement, not just the existing inventory on hand.
Jacket rating and construction should match the pathway environment. Length must include route planning, slack allowance, bend radius constraints, and cabinet management.
For project deliveries, field identification is often as important as optical performance. End A / End B marking, rack references, and carton grouping reduce site errors.
A production-ready order should define test expectations such as insertion loss results, polarity verification, endface inspection, and whether traceable reports are required.
| Parameter | Buyer Question | Risk If Undefined | Recommended Action |
|---|---|---|---|
| Fiber count | What architecture does the link use? | Wrong cassette or breakout compatibility | Match to actual port and migration plan |
| Polarity | Which method is used end-to-end? | Link does not transmit correctly | Confirm full channel logic before PO |
| Male / female | What hardware is on each end? | Physical mismatch at installation | State gender on both ends explicitly |
| Insertion loss | How tight is the channel budget? | Reduced design margin | Use low-loss when multiple mated pairs exist |
| Jacket and length | Where and how is it routed? | Code issues or cable management problems | Review environment and route path |
| Labeling / testing | How will field teams identify and verify it? | Installation delay and traceability loss | Standardize labels, reports, and packaging |
A large share of MPO ordering problems comes from copying an old part number without checking whether the new project uses the same polarity logic, cable routing, or panel structure. What worked in one rack design may fail in another.
Another common issue is splitting responsibility across teams. Engineering may specify fiber type, purchasing may shorten the description for the PO, and site installers may expect a different label format. The result is a technically built but operationally inconvenient assembly.
| Common Mistake | Operational Impact | Control Method |
|---|---|---|
| Polarity not confirmed with full channel | Installed link fails logical TX/RX mapping | Verify end-to-end channel drawing before release |
| Male / female assumed from memory | Physical mating issue during deployment | List connector gender per end on PO |
| Length selected without routing review | Too short to install or too long to manage cleanly | Add pathway allowance and rack management margin |
| Project labeling omitted | Field confusion and slower commissioning | Define end marking, rack code, and carton grouping |
The fastest way to avoid ordering errors is to use a simple decision table before RFQ release. The goal is not to capture every project nuance. It is to filter out incomplete specifications that would otherwise create avoidable risk.
| If Your Situation Is… | Quick Judgment | Recommended Choice | Why |
|---|---|---|---|
| Channel includes multiple cassettes and mated pairs | Loss budget is tighter | Specify low-loss MPO trunk | Keeps more margin for commissioning and future maintenance |
| Project uses defined cassette platform | Architecture is already constrained | Match fiber count and polarity to cassette system | Prevents cross-platform compatibility issues |
| Site team needs rack-by-rack deployment | Installation speed matters more than carton simplicity | Add custom end labels and grouped packaging | Reduces field sorting time and plugging errors |
| Length varies by route zone | Standard stock length is not enough | Use custom lengths per pathway segment | Improves cable management and airflow control |
| You cannot clearly define polarity or gender today | Specification is incomplete | Do not release PO yet | These are non-negotiable compatibility parameters |
Different environments drive different priorities. A data hall backbone may prioritize density and labeling discipline, while a telecom room upgrade may care more about migration compatibility and route constraints.
| Application | Typical Priority | Selection Focus | Practical Advice |
|---|---|---|---|
| Data center backbone | Density, fast deployment, migration readiness | Fiber count, polarity, low loss, labeling | Standardize by rack and zone before production |
| Enterprise structured cabling | Maintainability and phased rollout | Length planning, cassette compatibility, documentation | Use clear zone-based labels and spare capacity logic |
| Telecom room upgrade | Compatibility with existing platform | Connector format, gender, polarity, jacket rating | Audit existing hardware before repeating prior spec |
| OEM / project integration | Repeatability and traceability | Labeling logic, drawings, test format, batch consistency | Freeze document control before mass production |
Unit price is only one part of procurement cost. In MPO projects, rework cost, deployment delay, and troubleshooting time often exceed the price difference between a standard and a properly specified custom assembly.
That is why selection logic should consider both direct material cost and failure exposure. A lower-priced trunk may create a higher project cost if labeling is inadequate or channel loss margin becomes too narrow.
| Selection Factor | Lower Initial Cost Option | Higher Control Option | When Higher Control Is Worth It |
|---|---|---|---|
| Insertion loss grade | Standard loss | Low-loss / elite | Multi-connection channels or tighter performance margin |
| Length strategy | Fixed stock lengths | Custom per route | High-density racks and strict cable management |
| Packaging | Basic carton packing | Project-grouped packing | Large rollout with multiple rooms or racks |
| Documentation | Generic delivery note | Traceable reports and drawing confirmation | OEM, contractor, or audited deployment projects |

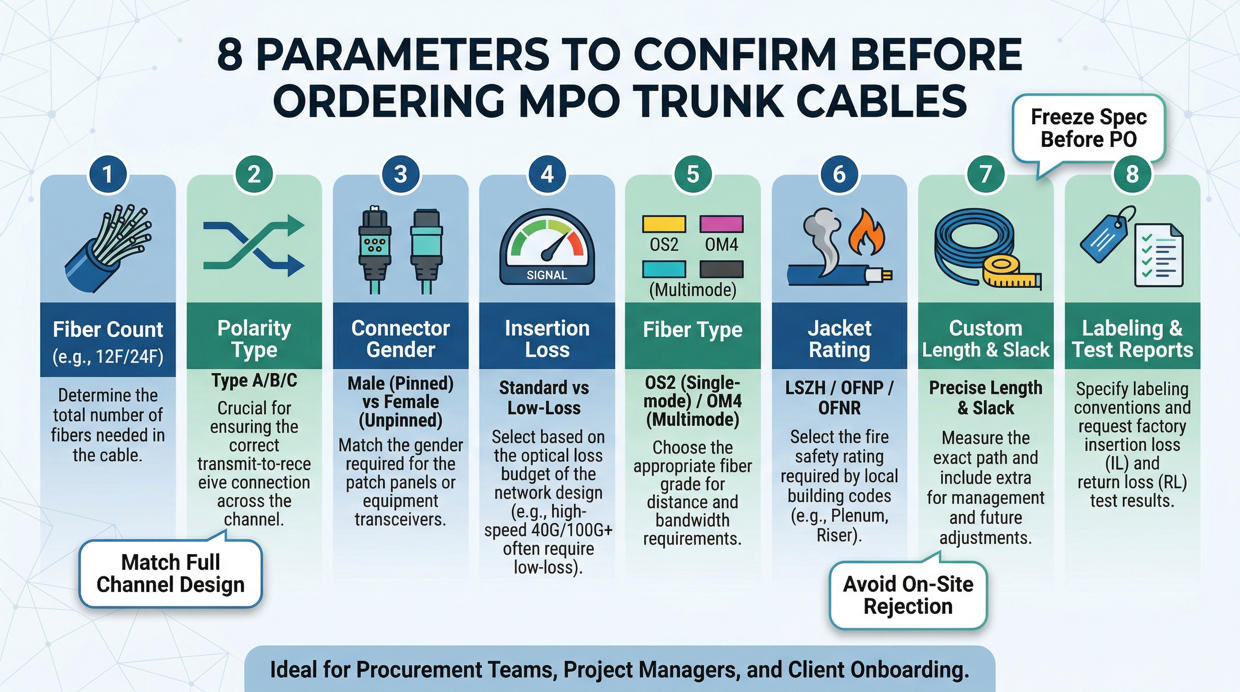

An MPO trunk cable order is reliable only when its optical logic, mechanical format, and field execution details are defined together. The key checks are fiber count, polarity, connector gender, insertion loss, fiber type, jacket and length, packaging, labeling, and testing requirements.
For engineers and buyers, the most effective practice is to freeze these parameters before comparing quotations. That reduces rework risk, improves installation efficiency, and makes channel performance easier to predict and maintain.
To speed up quotation and reduce specification errors, send your project fiber type, fiber count, polarity method, connector gender, required length, jacket type, quantity, and labeling format.
