RF
hellosignal
7101111
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

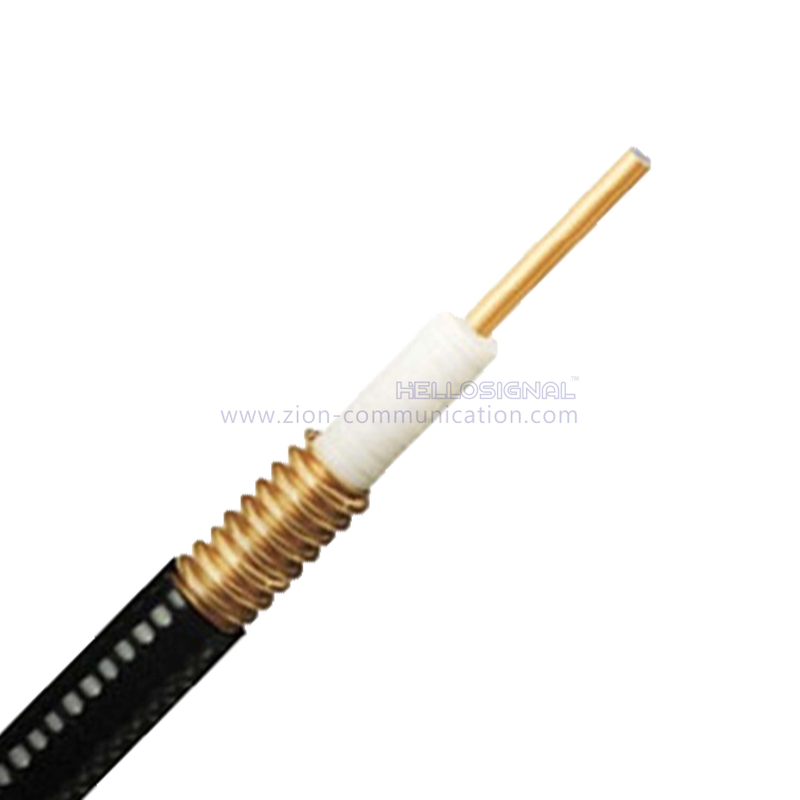

50 Ohm coaxial Cable NO.7101111 | ||||
Construction Parameters: | ||||
Inner Conductor | 3.55mm Copper Clad Aluminum Wire | |||
Dielectric | 8.7mm Foamed PE | |||
Shield | Nom.12.00mm Helical Copper Tube | |||
Jacket | 13.4mm Black PE | |||
Jacket Thickness | ||||
Application | ||||
Electrical Characteristics: | ||||
Capacitance | 80 pF/m | |||
Impedance | 50 Ω | |||
Velocity of Propagation | 0.83 | |||
Perk Power Rating | 19 KW | |||
Insulation Resistantce | >5000 M Ω.km | |||
Insulation Voltage | 2.5 K V | |||
Inner DC ConductorResistance | 2.85 Ω/km | |||
Outer DC ConductorResistance | 3.50 Ω/km | |||
VSWR ≤ (Return loss≥dB) | ||||
0.005-3.0GHz | 1.15(23) | |||
0.800-1.0GHz | 1.10(26) | |||
1.700-2.0GHz | 1.10(26) | |||
2.000-2.4GHz | 1.10(26) | |||
Mechanical and Envrionmental Properties | ||||
Cable bend radius(mm) | 50 | |||
Operating Temp Range | -55 to +85 ℃ | |||
Cable diamensions | 13.4mm | |||
Cross Section | ||||
| ||||
Attenuation(20℃): | ||||
Frequency (MHZ) | Attenuation (dB/100m) | Average Power (KW) | ||
100 | 3.22 | 3.03 | ||
200 | 4.63 | 2.11 | ||
450 | 7.2 | 1.37 | ||
800 | 9.86 | 1 | ||
900 | 10.56 | 0.94 | ||
1000 | 11.15 | 0.88 | ||
1500 | 13.8 | 0.7 | ||
1800 | 15.55 | 0.63 | ||
2000 | 16.4 | 0.59 | ||
2200 | 17.35 | 0.56 | ||
2400 | 18.1 | 0.53 | ||
2500 | 18.5 | 0.52 | ||
3000 | 20.9 | 0.48 | ||
Order Informations: | ||||
Marking | HELLOSIGNAL 1-2" super flexible RF CCA | |||
Package | Inquired Length on wooden Spool | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNAL® OR OEM | |||
50 Ohm coaxial Cable NO.7101111 | ||||
Construction Parameters: | ||||
Inner Conductor | 3.55mm Copper Clad Aluminum Wire | |||
Dielectric | 8.7mm Foamed PE | |||
Shield | Nom.12.00mm Helical Copper Tube | |||
Jacket | 13.4mm Black PE | |||
Jacket Thickness | ||||
Application | ||||
Electrical Characteristics: | ||||
Capacitance | 80 pF/m | |||
Impedance | 50 Ω | |||
Velocity of Propagation | 0.83 | |||
Perk Power Rating | 19 KW | |||
Insulation Resistantce | >5000 M Ω.km | |||
Insulation Voltage | 2.5 K V | |||
Inner DC ConductorResistance | 2.85 Ω/km | |||
Outer DC ConductorResistance | 3.50 Ω/km | |||
VSWR ≤ (Return loss≥dB) | ||||
0.005-3.0GHz | 1.15(23) | |||
0.800-1.0GHz | 1.10(26) | |||
1.700-2.0GHz | 1.10(26) | |||
2.000-2.4GHz | 1.10(26) | |||
Mechanical and Envrionmental Properties | ||||
Cable bend radius(mm) | 50 | |||
Operating Temp Range | -55 to +85 ℃ | |||
Cable diamensions | 13.4mm | |||
Cross Section | ||||
| ||||
Attenuation(20℃): | ||||
Frequency (MHZ) | Attenuation (dB/100m) | Average Power (KW) | ||
100 | 3.22 | 3.03 | ||
200 | 4.63 | 2.11 | ||
450 | 7.2 | 1.37 | ||
800 | 9.86 | 1 | ||
900 | 10.56 | 0.94 | ||
1000 | 11.15 | 0.88 | ||
1500 | 13.8 | 0.7 | ||
1800 | 15.55 | 0.63 | ||
2000 | 16.4 | 0.59 | ||
2200 | 17.35 | 0.56 | ||
2400 | 18.1 | 0.53 | ||
2500 | 18.5 | 0.52 | ||
3000 | 20.9 | 0.48 | ||
Order Informations: | ||||
Marking | HELLOSIGNAL 1-2" super flexible RF CCA | |||
Package | Inquired Length on wooden Spool | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNAL® OR OEM | |||
1-2" super flexible RF CCA
