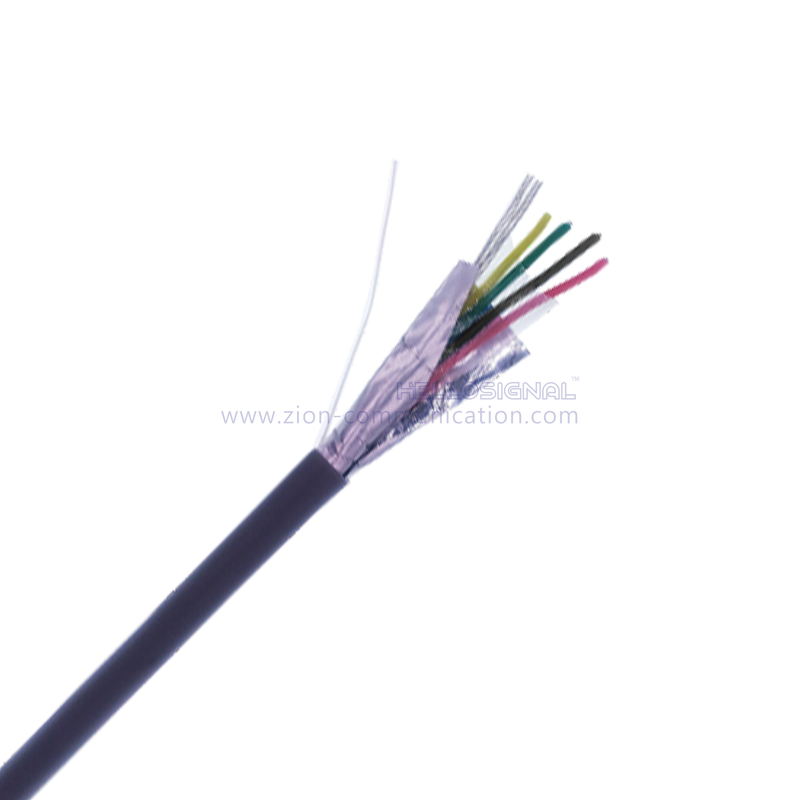

Mylar Cable
hellosignal
7111402
UL, ETL, CE,CPR, RoHS
100m,305m,500m,500ft,1000ft
pull box, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
4×0.22mm² Mylar Cable | ||||||||
Cable construction : | ||||||||
Conductor: |
| |||||||
4 x (7/0.20mm TC/BC/CCA/TCCA) | ||||||||
Dielectric: | ||||||||
Type: PVC/PP | ||||||||
Diameter: 1.00mm | ||||||||
Color Code: | ||||||||
1.Blk | 2.Red | 3.Ylw | 4.Grn | |||||
Shield1: | ||||||||
PET | ||||||||
Drain Wire | ||||||||
7 x 0.20mm TC/BC/CCA/TCCA | ||||||||
Shield2: | ||||||||
Aluminum / Mylar tape | ||||||||
Rip Cord | ||||||||
Cotton Wire | ||||||||
Jacket: | ||||||||
Type: PVC | ||||||||
Diameter: 4.0mm | ||||||||
Electrical Properties : | ||||||||
Temperature Rating | （-20℃ ~ +60℃） | |||||||
Operating Voltage | 300 Volts max | |||||||
Capacitance | 45pf/ft nom. | |||||||
Impedance | 40 Ohms nom. | |||||||
DC Resistance | 16.5 Ohms/M' at 20℃ | |||||||
Print Legend: | ||||||||
HELLOSIGNAL NO.7111401 2×0.22mm² Mylar Cable (ROHS) ×××× M | ||||||||
Cross Section : | ||||||||
| ||||||||
Order Informations : | ||||||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNALTM OR OEM | |||||||

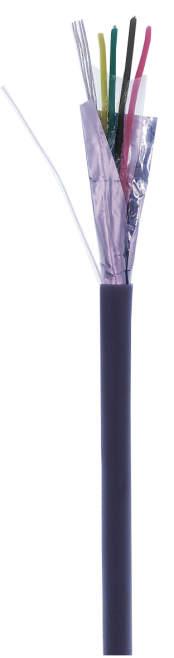

4×0.22mm² Mylar Cable | ||||||||
Cable construction : | ||||||||
Conductor: |
| |||||||
4 x (7/0.20mm TC/BC/CCA/TCCA) | ||||||||
Dielectric: | ||||||||
Type: PVC/PP | ||||||||
Diameter: 1.00mm | ||||||||
Color Code: | ||||||||
1.Blk | 2.Red | 3.Ylw | 4.Grn | |||||
Shield1: | ||||||||
PET | ||||||||
Drain Wire | ||||||||
7 x 0.20mm TC/BC/CCA/TCCA | ||||||||
Shield2: | ||||||||
Aluminum / Mylar tape | ||||||||
Rip Cord | ||||||||
Cotton Wire | ||||||||
Jacket: | ||||||||
Type: PVC | ||||||||
Diameter: 4.0mm | ||||||||
Electrical Properties : | ||||||||
Temperature Rating | （-20℃ ~ +60℃） | |||||||
Operating Voltage | 300 Volts max | |||||||
Capacitance | 45pf/ft nom. | |||||||
Impedance | 40 Ohms nom. | |||||||
DC Resistance | 16.5 Ohms/M' at 20℃ | |||||||
Print Legend: | ||||||||
HELLOSIGNAL NO.7111401 2×0.22mm² Mylar Cable (ROHS) ×××× M | ||||||||
Cross Section : | ||||||||
| ||||||||
Order Informations : | ||||||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNALTM OR OEM | |||||||
