PH120 SR 114H Standard Cable

■ Application:

These cables are designed for installation in fire systems to connect fire alarms and other related equipment.Suitable for both dry and moist areas, as well as for fixed open-air installations.The cable type with electrostatic screening (St) protects the transmission circuits against external electrical interferences.

■ Standards:

BS 5839-1:2002: Code of practice for fire system design, installation, commissioning, and maintenance.

BS 7629-1:2008: Low emission of smoke and corrosive gases.

BS EN 50200 PH120: Temperature: 830 °C Flame and shock for 120 minutes.

■ Electrical Data (at 20°C):

Minimum Bend Radius: 8 × Diameter

Minimum Insulation Resistance: 300 MΩ/km

Maximum Working Temperature: -40°C to +90°C

Test Voltage (rms value): 1000 V

Maximum Operating Voltage (peak value): 300 V / 500 V

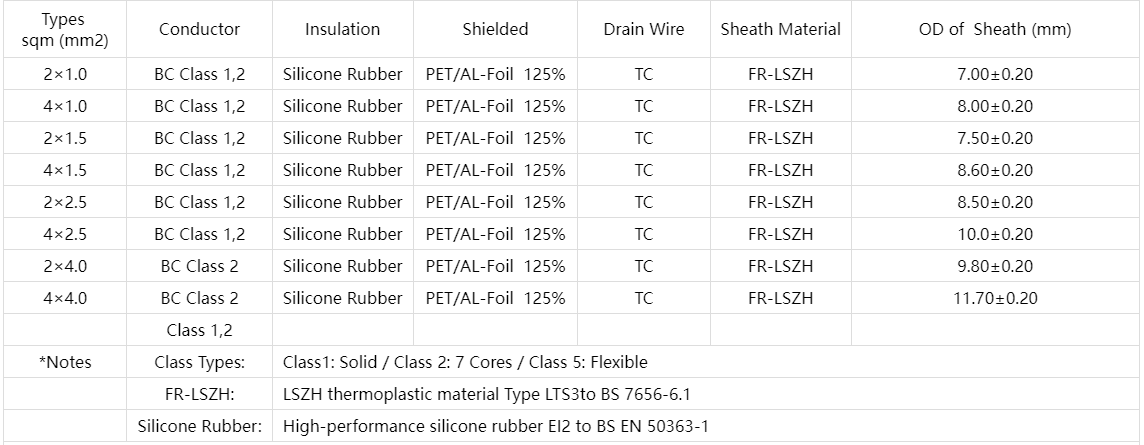

■ Types and Mechanical Data:

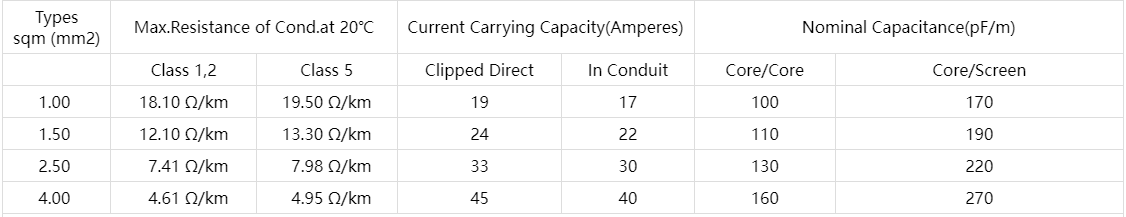

■ Technical Data:

■ Order Information:

Marking: HELLOSIGNAL KT1416 SR 114E Enhanced Cable Cable N*NNmm² XXX M MMDDYYYY

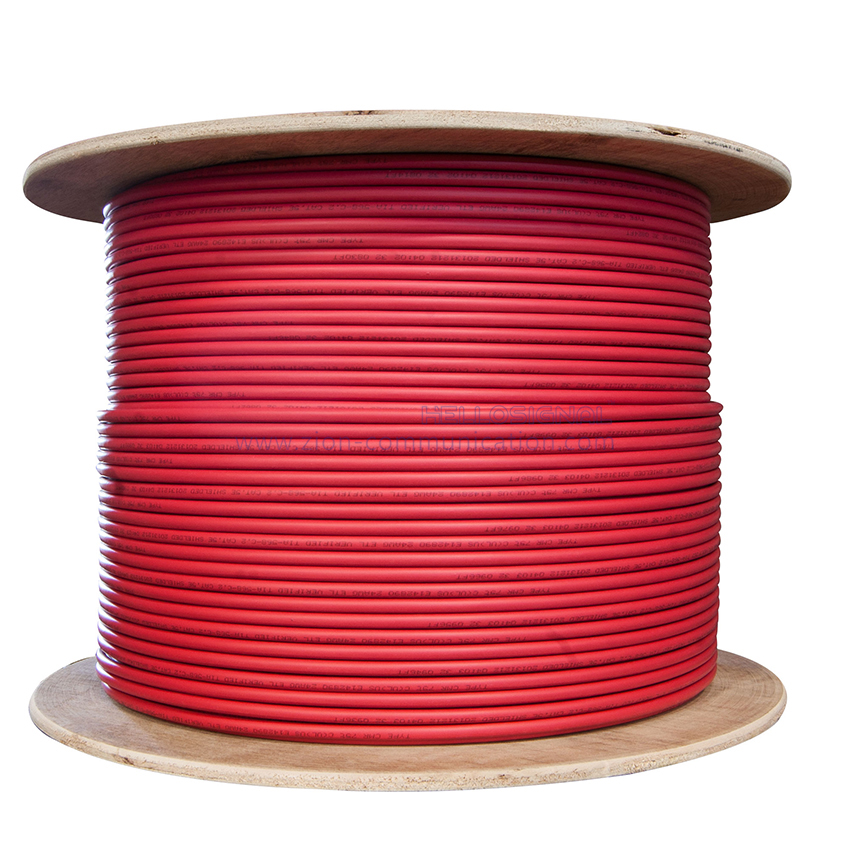

Packaging: 500m/Wooden Spool,1 Spool/Carton

Brand: HELLOSIGNAL®OEM (Original Equipment Manufacturer)
