PH30 PH60 SR 114H Standard Cable

  • PH30 PH60

  • hellosignal

  • XT1412

Availability:

Specification

PH30 PH60 SR 114H Standard Cable

Application:
These cables are used for installation in fire systems for connecting fire alarms etc. The cable can be installed in dry and moist areasas
well for fixed open air installation. This cable type with electrostatic screening (St) protects the transmission circuits against
externelectrical interferences.
Standards:
All these cables comply to:
BS 5839-1:2002  Code of practice for fire system design, installation, commissioning and maintenance.
BS 7629-1:2008  Low emission of smoke and corrosive gases
BS EN 50200 PH30 PH 60  Temperature: 830 °C Flame and shock for 30/60 minutes.
Electrical Data (AT20°C)
Minimum  Bend Radius Min.Insulation resistance Max.Working
Temperature
Test voltage
(rms value)
Max. Operating
voltage peak value

MΩ/km   V V
8×Diameter 300 -40℃~+90 1000 300/500
Types and Mechanical Data
Types
sqmm (mm2)

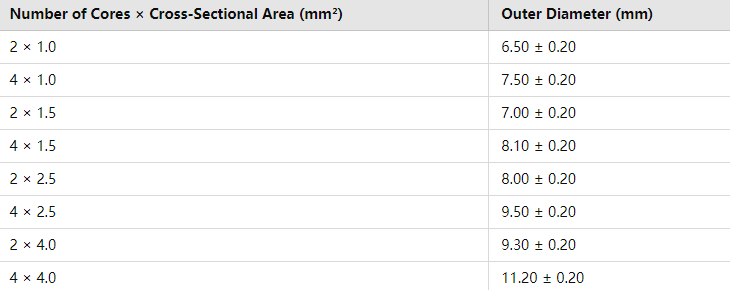

Conductor Insulation Shielded Drain Wire Sheath Matterial OD of  Sheath (mm)
2×1.0 BC Class 1,2 Silicone Rubber PET/AL-Foil  125% TC FR-LSZH 6.50±0.20
4×1.0 BC Class 1,2 Silicone Rubber PET/AL-Foil  125% TC FR-LSZH 7.50±0.20
2×1.5 BC Class 1,2 Silicone Rubber PET/AL-Foil  125% TC FR-LSZH 7.00±0.20
4×1.5 BC Class 1,2 Silicone Rubber PET/AL-Foil  125% TC FR-LSZH 8.10±0.20
2×2.5 BC Class 1,2 Silicone Rubber PET/AL-Foil  125% TC FR-LSZH 8.00±0.20
4×2.5 BC Class 1,2 Silicone Rubber PET/AL-Foil  125% TC FR-LSZH 9.50±0.20
2×4.0 BC Class 2 Silicone Rubber PET/AL-Foil  125% TC FR-LSZH 9.30±0.20
4×4.0 BC Class 2 Silicone Rubber PET/AL-Foil  125% TC FR-LSZH 11.20±0.20

Class 1,2




  *Notes Class Types: Class1: Solid / Class 2: 7 Cores / Class 5: Flexible

FR-LSZH: LSZH thermoplastic material Type LTS3to BS 7656-6.1

Silicone Rubber: High performance silicone rubber EI2 to BS EN 50363-1
Technical Data
Types
sqmm (mm2)
Max.Resistance of Cond.at 20 Current Carrying Capacity(Amperes) Nominal Capacitance(pF/m)

Class 1,2 Class 5 Clipped Direct In Conduit Core/Core Core/Screen
1.00  18.10 Ω/km 19.50 Ω/km 19 17 100 170
1.50  12.10 Ω/km 13.30 Ω/km 24 22 110 190
2.50    7.41 Ω/km   7.98 Ω/km 33 30 130 220
4.00    4.61 Ω/km   4.95 Ω/km 45 40 160 270
Order Informations:
  Marking HELLOSIGNAL KT1415 SR 114H Standard Cable N*NNmm2  XXX M  MMDDYYYY
  Package 500m/Wooden Spool, 1Spool/Carton
  Brand HELLOSIGNAL® OR OEM


Packing

100_9060 fire alarm cable plastic spool gx32cab-140-850-1 10x6-571nh fire alarm cable -3-www.king-tone.com
