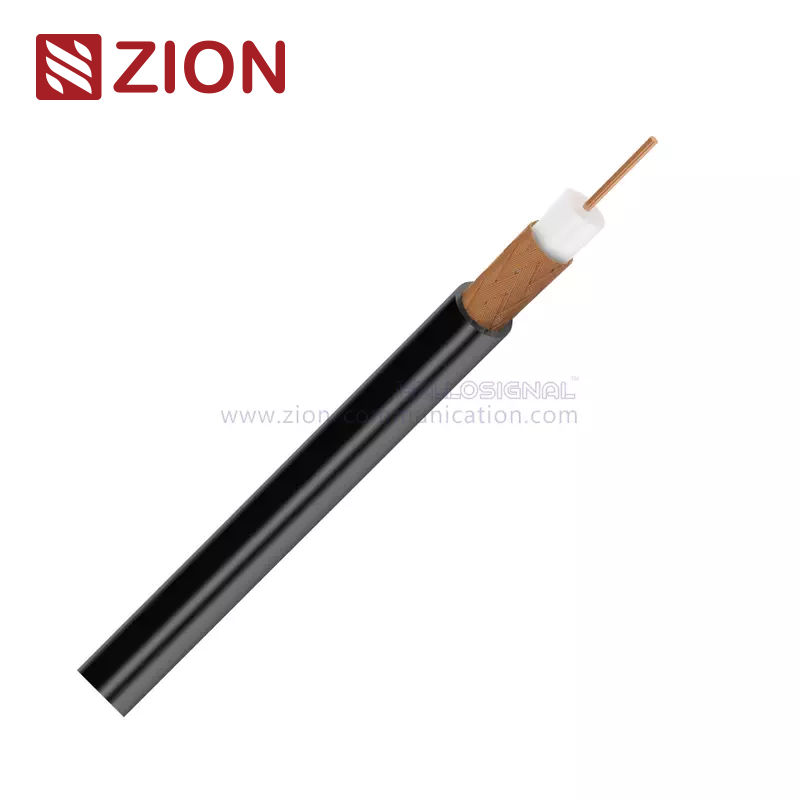

RG6/U 95% BC Braiding CCTV Coaxial Cable

  • RG6/U

  • hellosignal

  • KT0710

Availability:

Specification

RG6/U 95% BC Braiding CCTV COAXIAL CABLE

Construction Parameters:
  Inner Conductor 1.02mm/0.04"/18AWG Copper
  Dielectric 4.45mm/0.175"  Foamed PE
  Shield 1 Bonded Aluminum Foil Shield
  Shield 2 Bare Copper braid wire 95% coverage
Diameter Over Shielding: 5.1mm/0.20"
  Jacket 6.65±0.15mm /0.262±0.006" PVC
Flame Retardation: IEC 60332-1
  Application For Use in Longer CCTV Run Lengths
  Limited Length Typical run length up to 1500 feet

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20 shall be < 21.2 Ω/km (6.96 Ω/kft)
  Capacitance 52 ±3 pF/m                       17±0.3 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz: > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

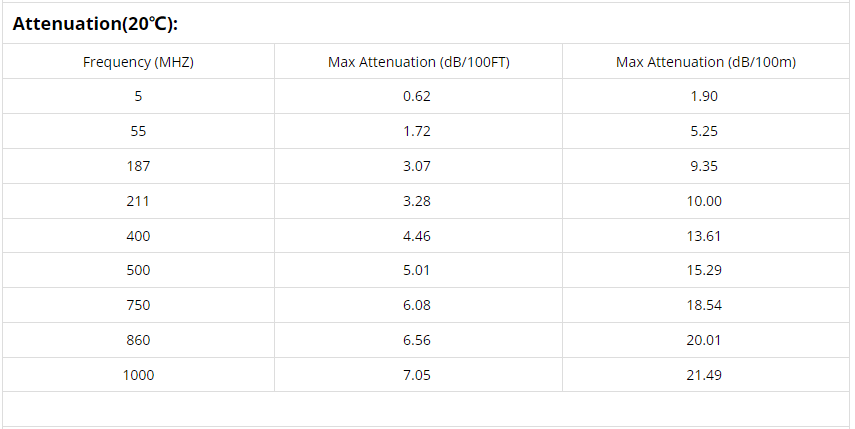

Attenuation(20℃):
Frequency (MHZ)         Max Attenuation (dB/100FT)                 Max Attenuation (dB/100m)
5 0.62  1.90
55 1.72  5.25
187 3.07  9.35
211 3.28  10.00
400 4.46  13.61
500 5.01  15.29
750 6.08  18.54
860 6.56  20.01
1000 7.05  21.49

Mechanical and Envrionmental Properties
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20  to 60
  Cable diamensions 6.96±0.15 mm PVC

Order Informations:
  MarkingHELLOSIGNAL RG6/U BC Bonded 95% BC  ×××FT
  Package 500FT/Pull Box, 1000FT/Wooden Spool, Pallet
  Delivery time Normally 25 days after received the deposit.
  Brand HELLOSIGNAL® OR OEM
