S/FTP CAT 6A BC LSZH Twisted Pair Installation Cable

  • S/FTP CAT 6A

  • hellosignal

  • 7112346

  • CAT6A

  • 100 ohm

  • UL, ETL, CE,CPR, RoHS

  • 100m,305m,500m,500ft,1000ft

  • pull box, wooden spool, carton, pallet

  • 30KM

  • Normally 25 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

zion LOGO

S/FTP CAT 6A Twisted Pair Installation Cable

LAN CABLE

NO. 7112346


Construction

Conductor:

23 AWG Solid Bare Copper

Pairs:

4 Pairs

Insulation:

1.35 mm Skin-Foam-Skin

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Individual Pair shield

Al/PET Foil,Foil face out

Drain Wire

0.40±0.005mm TC

Overall Shield

Tinned copper braid

Rip Cord:

Cotton

Out Jacket:

8.0±0.2 mm  LSZH


Electrical Characteristics

Impedance

4 - 100MHz 100±15 Ohms

100 - 200MHz 100±22 Ohms

200 - 500MHz 100±32 Ohms

Max.Conductor DC
Resistance 20

8.7 Ohms/100m

Res. unbalance (%)

Max. 2.5

Pair to Ground
Capacitance Unbalance

330 pF/100m

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Installation temp.

 -30 - 50

Operation temp.

 -20 - 75


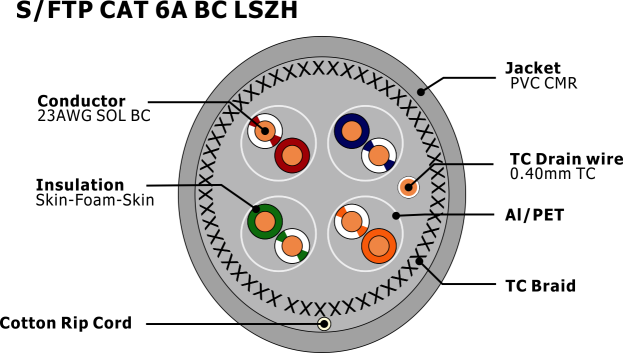

Cross Section


Application

•  Suitable for structured premises cabling.

•  For transmission of digital and analogue voice and data signals.

•  Especially suitable for all Class EA applications.

•   ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3).

•  Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5).


Standard

IEC/ISO 61156-5; ANSI/TIA568C.2; ISOIIEC 11801


Performance Characteristics

Frequency

RL                     (Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20.0

2.1

570.0

45.0

74.3

72.3

67.8

64.8

4

23.0

3.8

552.0

45.0

65.3

63.3

55.8

52.8

10

25.0

6.0

545.0

45.0

59.3

57.3

47.8

44.7

16

25.0

7.6

543.0

45.0

56.2

54.2

43.7

40.7

20

25.0

8.5

542.0

45.0

54.8

52.8

41.8

38.8

31.25

25.0

10.7

540.0

45.0

51.9

49.9

37.9

34.9

62.5

21.5

15.4

539.0

45.0

47.4

45.4

31.9

28.9

100

20.1

19.8

538.0

45.0

44.3

42.3

27.8

24.8

200

18.0

29.0

537.0

45.0

39.8

37.8

21.8

18.8

300

17.3

36.4

536.0

45.0

37.1

35.1

18.3

15.3

400

17.3

43.0

536.0

45.0

35.3

33.3

15.8

12.8

500

17.3

45.3

536.0

45.0

33.8

31.8

13.8

10.8

Note: The above transmission performance tor the 100M, 20±2 under the conditions tested.


Order Informations

Marking

HELLOSIGNAL NO.7112346 S/FTP CAT6A 4PR 23AWG LSZH XXX
(or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM





Packing

PACKING
062-508_S_RD_B            0-CAT5E-BL            0-CAT5E-BK
cat 5e pull box's packing1             cat 5e pull box's packing2
cat 5e 's packing3             cat 5e 's packing4

network cable's packing



packing6
