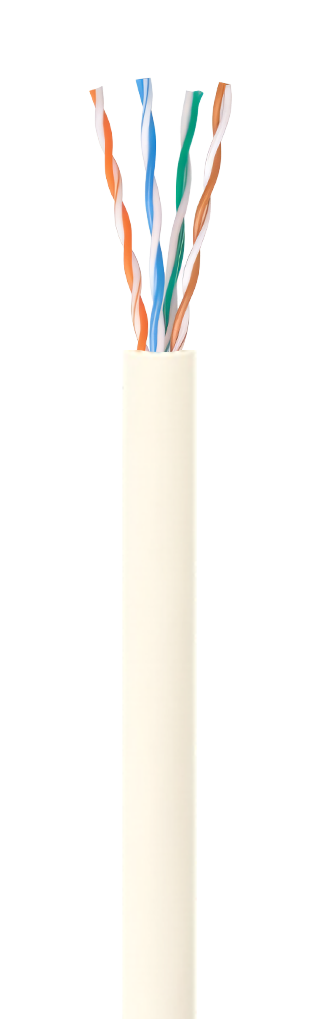

NO.7112361 U/UTP CAT 6A 28AWG STR CABLE-UL CMP

Key Information & Construction

SKU

7112361

UL Certificate Number:

E541136

Standards:

UL 444 & CSA C22.2 No.214
Communications Cables

Conductor Material:

Stranded Bare Copper

Conductor Size:

28AWG/ 7×0.005" / 7×0.127mm

Pairs:

4 Pairs

Insulation:

0.0236" / 0.60±0.05 mm FEP

Insulation Colors:

Blue-White,Orange-White

Green-White,Brown-White

Out Jacket:

Material: Plenum PVC

Wall Thickness: 0.0157". Nom(0.4mm)

OD:0.1377"±0.006“ (3.5±0.15mm)

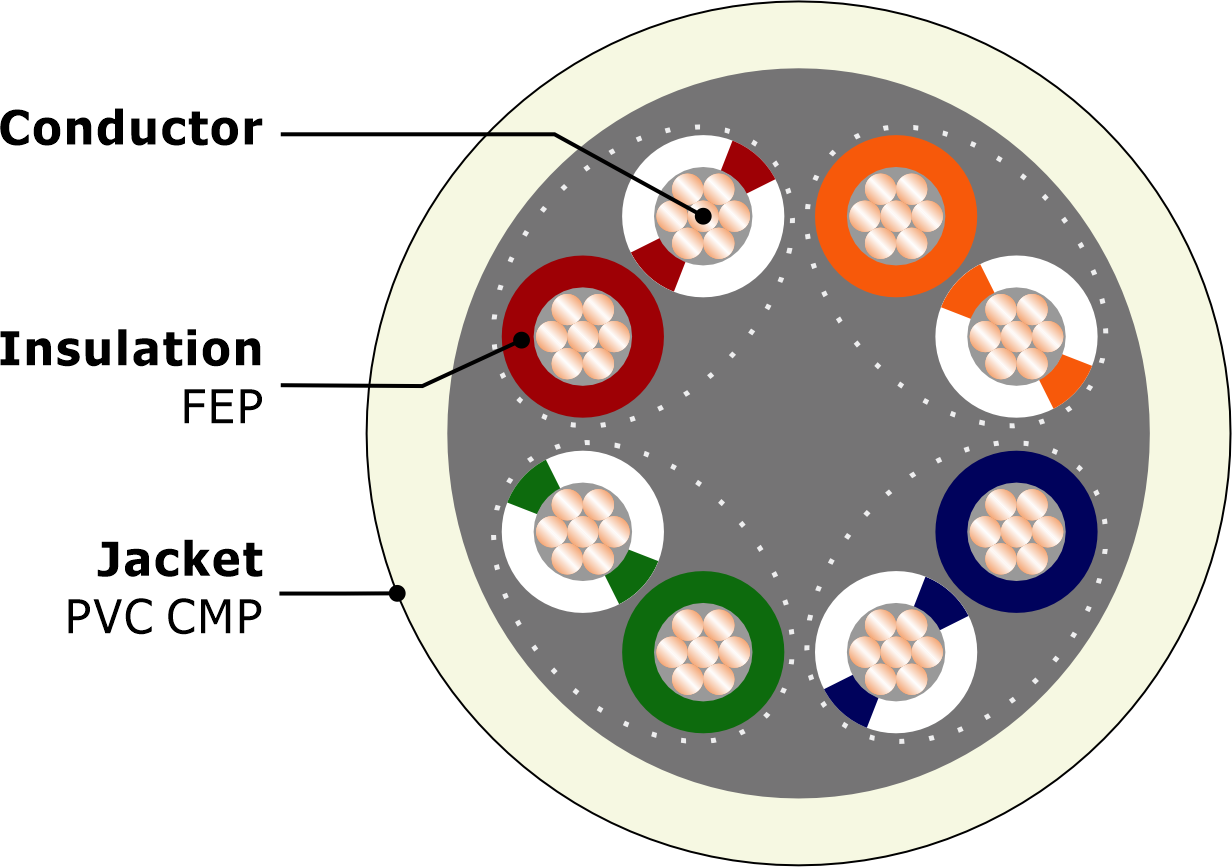

Cross Section

Application Support

· 1000BASE-T 、 1000BASE-TX、100BASE-T 、 100BASE-TX、100VG-AnyLAN、ATM

· 1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo、 POE Type1,2,3,4

Electrical Characteristics

DC Resistance

＜23.6 Ohms/100m @20℃

DC Resistance unbalance

4% @ 20℃

Mutual Capacitance

5.6 nF/100m

Characteristic Impedance

    1 - 100 MHz : 100±15 Ohms

101 - 200 MHz : 100±22 Ohms

201 - 500 MHz : 100±32 Ohms

Max Frequency

500MHz

Capacitance Unbalance

330 pF/100m

NVP(传输速率）

≥ 65%

Delay Skew

≤ 44ns/100m

Working Voltage

Typically up to 48V

Rated Voltage(V RMS)

300V

PHYSICAL PROPERTIES

Pulling Tension(Max)

20 lbs (89 N)

Bend Radius(Min)

4 Times the cable diameter

Operating Temperature

-20 to 75 ℃ （-4 to 167℉）

Performance Characteristics

Frequency

Attenuation

NEXT
(dB)

ACRF
(dB)

PS.NEXT
(dB)

PS.ACRF
(dB)

RL
(dB)

Delay
(ns/100m)

Skew
(ns/100m)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

4.05

74.30

72.30

67.80

64.80

20.00

570.00

45.0

4

7.41

65.27

63.27

55.76

52.80

23.00

552.00

8

10.35

60.75

58.75

49.74

46.70

24.50

546.73

10

11.55

59.30

57.30

47.80

44.80

25.00

545.38

16

14.60

56.24

54.24

43.72

40.70

25.00

543.00

20

16.34

54.78

52.78

41.78

38.80

25.00

542.05

25

18.29

53.30

51.33

39.84

36.80

24.30

541.20

31.25

20.48

51.88

49.88

37.90

34.90

23.60

540.44

62.5

29.23

47.36

45.36

31.88

28.90

21.50

538.55

100

37.31

44.30

42.30

27.80

24.80

20.10

537.60

150

46.17

41.66

39.66

24.28

21.28

17.47

536.94

200

53.77

39.78

37.78

21.78

18.80

18.00

536.55

250

60.58

38.33

36.33

19.84

16.80

17.30

536.28

300

66.82

37.14

35.14

18.26

15.30

16.80

536.08

350

72.63

36.14

34.14

16.92

13.92

14.31

535.92

400

78.10

35.27

33.27

15.76

12.80

15.90

535.80

450

83.29

34.50

32.50

14.74

11.70

13.37

535.70

500

88.25

33.82

31.82

13.82

10.80

15.20

535.61

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HANGZHOU ZION  7112361  U/UTP CAT6  4PR
28AWG STRANDED  500MHZ   E541136  (UL)C(UL)
VERIFIED  TO  ANSI/TIA 568C.2  RoHS  COMPLIANT   ***FT

Inner Package

1000FT/Pull Box or Wooden Spool (or Per customer's request)

Outer Package

Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM

Online Service:

Wechat

+86 15088607575

Whatsapp

+86 15088607575

Email

info@zion-communication.com

OEM Customized Service:

Color

We can customized Jacket Color based on RAL Classic

Printing

We can customized printing words on jacket

Packing & Label

We can customized spool, carton & label design.
