Speaker Cable
N/M
N/M
Loud Speaker Cable
Transparent PVC
ISO9001
100m/Spool
Paper Spool ，Φ280*280mm
100km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.
Description

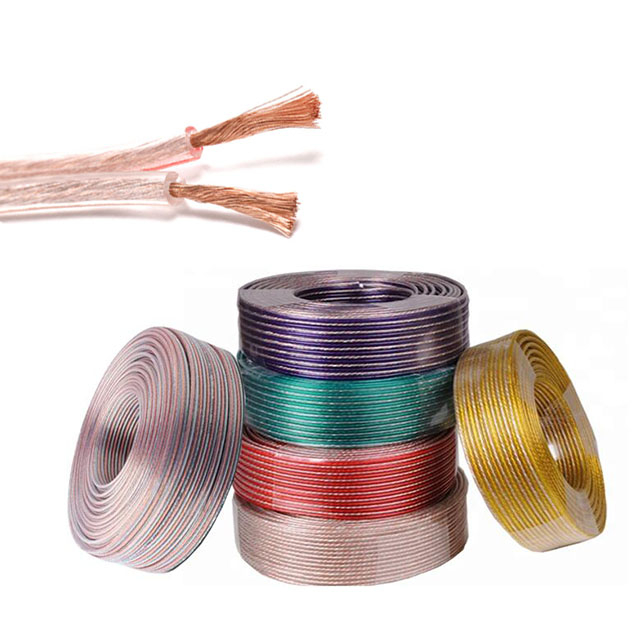

Speaker cable Zip Cord are used in connecting for audio appliances,home appliances,small eectric tools and instruments.
connecting power amplifier and broadcasting systems,for transmitting the audio signals amplified by the amplifier.
Structure
4AWG,8AWG,10AWG, 12AWG, 14AWG, 16AWG, 18AWG,20AWG,22AWG
Conductor Material
OFC:Oxygen Free Copper
TC:Tinned Copper
BC:Bare Copper
CCA:Copper Clad Aluminum
TCCA:Tinned Copper Clad Aluminum
CCS:Copper Clad Steel
Jacket Material
Transparent PVC
Common specifications for reference:
Normal area (mm²) | Specification | Diameter (mm) | Weight(kg/km) |
| 2x0.24mm2 | 2x30/0.10 | 2.1x4.3 | 14 |
| 2x0.4mm2 | 2x50/0.10 | 2.3x4.6 | 18 |
| 2x0.5mm2 | 2x64/0.10 | 2.4x4.8 | 20 |
| 2x0.6mm2 | 2x80/0.10 | 2.6x5.3 | 25 |
| 2x0.75mm2 | 2x96/0.10 | 2.7x5.5 | 27 |
| 2x0.8mm2 | 2x100/0.10 | 2.8x5.5 | 28 |
| 2x1mm2 | 2x7x18/0.10 | 3.1x6.1 | 34 |
| 2x1.5mm2 | 2x7x27/0.10 | 3.4x6.8 | 45 |
| 2x2mm2 | 2x7x36/0.10 | 3.8x7.5 | 58 |
| 2x2.5mm2 | 2x7x46/0.10 | 4.0x8.1 | 70 |
| 2x4mm2 | 2x7x72/0.10 | 4.6x9.3 | 100 |
| 2x6mm2 | 2x7x110/0.10 | 5.4x10.9 | 145 |
| 2x0.4mm2 | 2x13/0.20 | 2.3x4.6 | 18 |
| 2x0.5mm2 | 2x16/0.20 | 2.4x4.8 | 20 |
| 2x0.6mm2 | 2x19/0.20 | 2.6x5.2 | 24 |
| 2x0.75mm2 | 2x24/0.20 | 2.7x5.5 | 27 |
| 2x0.8mm2 | 2x26/0.20 | 2.8x5.5 | 29 |
| 2x1mm2 | 2x32/0.20 | 2.9x5.8 | 33 |
| 2x1.5mm2 | 2x48/0.20 | 3.2x6.4 | 44 |
| 2x2mm2 | 2x64/0.20 | 3.4x6.9 | 55 |
| 2x2.5mm2 | 2x7x11/0.20 | 4.0x7.9 | 67 |
| 2x4mm2 | 2x7x18/0.20 | 4.6x9.2 | 100 |
| 2x6mm2 | 2x7x27/0.20 | 5.4x10.8 | 142 |
| 2x20AWG | 2x41/0.12 | 2.4x4.9 | 21 |
| 2x18AWG | 2x65/0.12 | 2.8x5.6 | 29 |
| 2x16AWG | 2x7x15/0.12 | 3.3x6.6 | 22 |
| 2x14AWG | 2x7x23/0.12 | 3.8x7.6 | 28 |
| 2x12AWG | 2x7x37/0.12 | 4.4x8.7 | 36 |
| 2x10AWG | 2x7x59/0.12 | 5.2x10.3 | 48 |
| 2x8AWG | 2x7x95/0.12 | 6.2x12.4 | 195 |
Refer to other similar specifications
| Flexible LOUD SPEAKER CABLE Transparent PVC | |||
Normal area (mm²) | Structure (mm) | Insulation thickness (mm) | Overall dia. (mm) |
| 2x0.50 | 7x9/0.10 | 0.8 | 2.4x4.8 |
| 2x0.75 | 7x14/0.10 | 0.8 | 2.5x5.0 |
| 2x1.00 | 7x18/0.10 | 0.8 | 2.8x5.7 |
| 2x1.50 | 7x27/0.10 | 0.9 | 3.2x6.5 |
| 2x2.50 | 7x45/0.10 | 0.9 | 3.6x7.4 |
| 2x4.00 | 7x72/010 | 1.0 | 4.3x8.8 |
| 2x6.00 | 7x108/0.10 | 1.0 | 4.8x9.8 |
| Flexible LOUD SPEAKER CABLE Black&Red PVC | |||
Normal area (mm²) | Structure (mm) | Insulation thickness (mm) | Overall dia. (mm) |
| 2x0.50 | 28/0.15 | 0.8 | 2.4x4.8 |
| 2x0.75 | 42/0.15 | 0.8 | 2.5x5.0 |
| 2x1.00 | 32/0.20 | 0.8 | 2.8x5.7 |
| 2x1.50 | 48/0.20 | 0.9 | 3.2x6.5 |
| 2x2.50 | 49/0.25 | 0.9 | 3.6x7.4 |
| 2x4.00 | 56/0.30 | 1.0 | 4.3x8.8 |
| 2x6.00 | 84/0.30 | 1.0 | 4.8x9.8 |
The above data is for reference only. Please consult James for details.
Transparent PVC Jacket Colors
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
