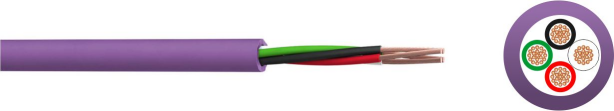

Circular Audio Speaker Cable (CSC124-LSHF)

Circular Audio Speaker Cable (CSC124-LSHF)

Application:

Deliver good levels of performance in most multi-room and home cinema installations.

Product Description:

Conductor Material

99.999% Oxygen Free Bare Copper

Number of Strands

65/0.25mm

Insulation Material

Low Smoke Halogen Free (LSHF)

Number of Cores

4

Sheath Material

Low Smoke Halogen Free (LSHF)

Sheath Colour

Violet

Core Identification

Red, Black, White, Green

Electrical Characteristics:

Nominal Conductor Resistance

< 6.2 Ω/km

Insulation Resistance

> 200 MΩ.M

Voltage Rating

450/750V

Test Voltage

2.5kV for 5 Minutes

Physical Characteristics:

Overall Diameter

10.5 ± 0.3mm

Min. Bend Radius

15 x OD

Temperature Rating

-20°C to +70°C

Standards:

Flame Retardant

BS EN 60332-1-2

Low Smoke Generation

BS EN 61034-2

Halogen Gas Emission

BS EN 60754-1&2

RoHS3 Compliant

Yes

CE Compliant

LVD (2014/35/EU), CPR (305/2011)

CPR Classification

Eca (EN50575:2014+A1:2016)
