U/UTP Dual CAT 5E BC PE Twisted Pair Installation Cable

U/UTP Dual CAT 5E Twisted Pair Installation Cable

LAN CABLE

NO. 7112151

Construction

Conductor:

24 AWG Solid Bare Copper

Pairs:

4 Pairs

Insulation:

0.91 mm HDPE

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Rip Cord:

Cotton

Out Jacket:

(5.2×10.4)±0.2 mm  PE

Electrical Characteristics

Impedance

1 - 100MHz 100±15 Ohms

Insulation Resistance

＞5000MΩ*KM

Dielectric strength

DC  2500V  2S

Max.Conductor DC
Resistance 20℃

9.5 Ohms/100m

Res. unbalance (%)

Max. 2.5

Pair to Ground
Capacitance Unbalance

330 pF/100m

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Installation temp.

 -30 - 50℃

Operation temp.

 -20 - 75℃

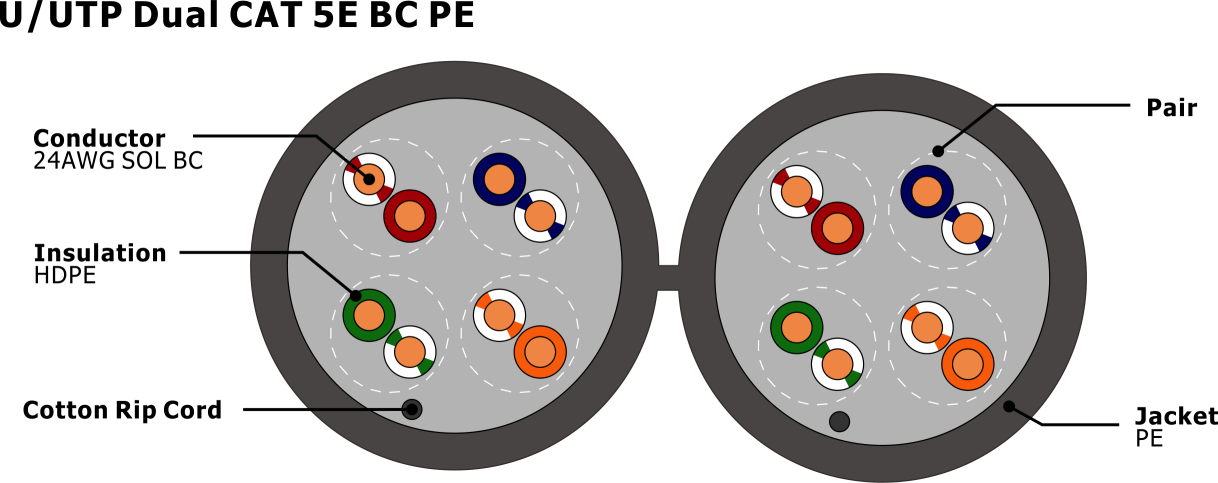

Cross Section

 Application

•  Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 5e and
   ISO 11801 2nd Edition Class D channel standards.

•  Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5
   Category 5e component standards.

•  Third party tested to Category 5e channel compliance.

•  Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

•  Descending length cable markings enable easy identification of remaining cable
   which reduces installation time and cable scrap.

•  Color Availability: Additional cable colors available.

•  Patent producls:CN200920124768. 4.

Performance Characteristics

Frequency

RL                     (Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20.0

2.2

570.0

45.0

65.0

62.0

61.0

61.0

4

23.0

4.2

552.0

45.0

56.0

53.0

48.0

48.0

10

25.0

6.5

545.0

45.0

50.0

47.0

41.0

41.0

16

25.0

8.4

543.0

45.0

47.0

44.0

36.0

36.0

20

25.0

9.3

542.0

45.0

45.0

42.0

34.0

34.0

31.25

23.6

11.6

540.0

45.0

42.0

39.0

31.0

31.0

62.5

21.5

17.0

539.0

45.0

38.0

35.0

25.0

25.0

100

20.1

22.0

538.0

45.0

35.0

32.0

21.0

21.0

Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HELLOSIGNAL NO.7112151 U/UTP Dual CAT 5E 4PR 24AWG PE
XXX (or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^®   OR OEM
