An MPO cassette converts high-density MPO backbone links into front-side LC interfaces, making fiber systems easier to patch, scale, and maintain in structured environments.
MPO cassettes are used when a project needs a clean transition from MPO trunks to LC patching on the front of a panel.
The right cassette choice depends on polarity, fiber count, connector gender, loss budget, and enclosure compatibility.
Compared with breakout cables, cassettes usually provide better structure, labeling, maintenance control, and long-term scalability.
An MPO cassette, also called an MPO module, is a compact pre-terminated fiber unit installed inside a patch panel or enclosure. Its job is to accept one or more MPO connections on the rear and present multiple LC duplex ports on the front for equipment patching.
In practical system design, the cassette sits between a high-density backbone and the daily operational side of the network. It reduces field termination work, standardizes front-port presentation, and creates a cleaner service point for moves, adds, and changes.
| Item | What it means in practice | Why it matters |
|---|---|---|
| Rear interface | MPO trunk or harness connection | Supports high-density backbone cabling |
| Front interface | Usually LC duplex ports | Matches common switch and server patching |
| Internal function | Fiber routing and polarity management | Prevents channel mapping errors |
| Deployment role | Panelized transition point | Improves organization, testing, and serviceability |
An MPO cassette is not simply a shell with adapters. Internally, it contains a planned routing path that assigns each fiber from the MPO rear interface to a specific front LC port. This internal architecture determines whether the cassette will align correctly with the trunk, polarity method, and target equipment layout.
Typical cassette construction includes a housing, rear MPO adapter area, internal fiber management section, front LC adapter panel, and labeling surface for port identification. In higher-quality designs, the internal fiber path is arranged to limit stress and keep insertion loss predictable.
| Part | Function | Selection concern |
|---|---|---|
| Housing | Fits enclosure or patch panel slot | Module size and panel compatibility |
| Rear MPO interface | Receives MPO trunk connection | Fiber count, polarity, male/female gender |
| Internal routing | Maps fibers to front ports | Loss control, bend management, mapping accuracy |
| Front adapter area | Provides LC patching interface | Port density, access, labeling clarity |

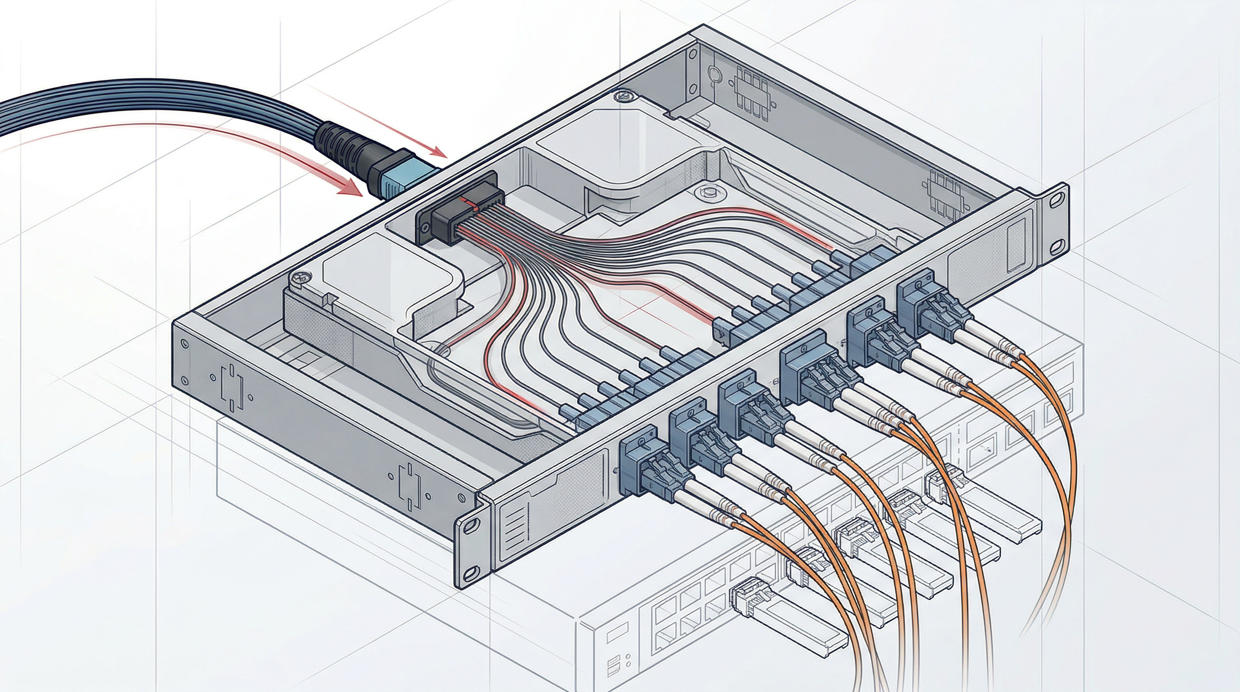

The cassette converts a high-density MPO connection into multiple duplex links. A common example is a 12-fiber MPO trunk entering the rear of the cassette and being distributed into six LC duplex ports on the front. The cassette therefore becomes the translation layer between backbone density and equipment-friendly patching.
This conversion is only useful when the mapping logic is correct. The cassette must align with the system polarity strategy so that transmit and receive paths remain correct from one end of the channel to the other. In other words, the cassette is part of the channel design, not a neutral accessory.
Match the MPO fiber count to the expected front-port count.
Confirm polarity type before combining cassettes, trunks, and patch cords.
Verify connector gender and pinning.
Check whether the cassette is designed for single mode or multimode channels.
Validate insertion loss against the link budget, especially in larger channels.
Both an MPO cassette and an MPO to LC breakout cable can convert MPO connectivity into LC interfaces, but they solve different operational problems. A cassette is designed for panelized, modular distribution. A breakout cable is designed for direct fan-out from one MPO connector into multiple LC legs.
The choice is usually not about which one is more technically valid. It is about where the transition needs to occur, how the project will be maintained, and how much structure the installation requires.
| Comparison point | MPO cassette | MPO to LC breakout cable | Typical decision impact |
|---|---|---|---|
| Deployment style | Installed inside panel or enclosure | Direct cable assembly | Choose cassette for structured patching layers |
| Cable management | Cleaner front-panel presentation | More exposed branch routing | Cassette is better for dense racks |
| Maintenance | Easier labeling and service control | Simpler for direct connection, less structured for change management | Cassette usually wins in larger installations |
| Protection | Internal fibers protected inside housing | Breakout legs more exposed | Cassette reduces handling risk |
| Best fit | Cross-connect, interconnect, structured cabling | Direct equipment attachment | Breakout is fine for simpler direct links |
Most cassette-related failures are not caused by the housing itself. They come from mismatched design assumptions. A cassette can look mechanically correct while still being optically wrong for the channel.
The most common issue is polarity mismatch. Other frequent problems include selecting the wrong connector gender, ignoring loss budget accumulation, assuming all 12-fiber and 24-fiber layouts map the same way, or choosing a cassette that does not fit the enclosure platform.
| Risk | Typical cause | Operational consequence | Control measure |
|---|---|---|---|
| Polarity failure | Trunk and cassette method do not match | Transmit/receive path error | Design the full channel before ordering |
| Connector mismatch | Wrong MPO male/female configuration | Physical mating failure | Verify gender and pinning on both ends |
| Loss budget overrun | Too many interfaces or higher loss than assumed | Reduced performance margin | Specify insertion loss class and test reports |
| Mechanical incompatibility | Cassette form factor does not match panel | Install delay or redesign | Confirm platform dimensions before PO |
Use the table below as a fast screening tool. It is not a replacement for full channel engineering, but it helps determine whether an MPO cassette is structurally the right choice for the project.
| Project condition | Choose cassette? | Reason | What to verify next |
|---|---|---|---|
| Need structured front-panel LC patching from MPO trunks | Yes | Cassette is designed for this transition | Polarity, fiber count, enclosure format |
| Need direct MPO-to-equipment fan-out with minimal panelization | Usually no | Breakout cable may be simpler | Branch routing, strain relief, port layout |
| High-density rack with frequent moves/adds/changes | Yes | Better labeling and operational control | Port access, documentation, spare module plan |
| Tight link-loss budget | It depends | Cassette adds controlled interfaces but must fit the budget | Insertion loss class and channel test assumptions |
| Future migration from LC patching to higher-density systems | Yes | Modular patching layer supports phased upgrades | Migration roadmap and module standardization |

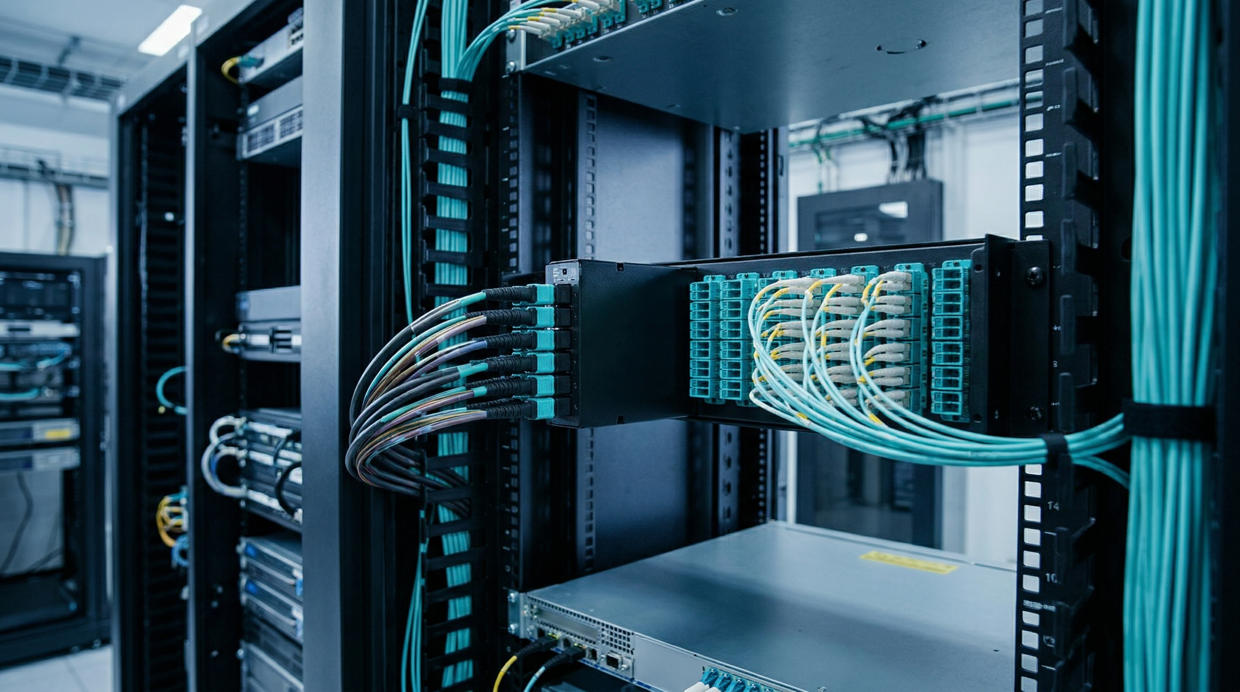

MPO cassettes are most useful where a project needs backbone density and operational clarity at the same time. They are common in data centers, enterprise backbone rooms, and structured patching environments where service control matters.
| Scenario | Why cassette fits | Typical benefit | Watchpoint |
|---|---|---|---|
| Data center cross-connect | Supports organized LC patching from MPO trunks | Cleaner rack management | Port density and labeling discipline |
| Enterprise backbone rooms | Simplifies patching between backbone and active gear | Faster maintenance actions | Panel compatibility and documentation |
| Phased upgrade projects | Allows MPO backbone with LC front patching during migration | Smooth transition path | Confirm future channel roadmap |
| High-change environments | Modular module replacement and cleaner service boundary | Reduced disruption during changes | Spare module and standardization planning |
In a well-designed system, the cassette also supports clearer separation between permanent cabling and operational patching. That separation is important for testing, documentation, and long-term maintenance discipline.
When sourcing an MPO cassette, buyers should avoid treating the module as a generic commodity. Optical mapping, loss performance, and enclosure compatibility can vary enough to create project risk if the purchase specification is incomplete.
| Parameter | Why it matters | Typical choices | Procurement note |
|---|---|---|---|
| Fiber count | Determines channel mapping and front-port count | 8F / 12F / 24F related formats | Must match trunk architecture |
| Front connector type | Defines patching interface | Usually LC duplex | Check switch/server port ecosystem |
| Polarity type | Controls Tx/Rx path correctness | System-specific method choices | Must be defined before PO |
| Connector gender | Affects physical mating | Male / female MPO interface | Do not assume defaults |
| Fiber type | Determines optical compatibility | OS2 / OM3 / OM4 / OM5 | Align with full system design |
| Insertion loss class | Affects link budget margin | Standard-loss or low-loss options | Request test data when needed |
| Panel compatibility | Determines install fit and service access | Brand/platform-specific module formats | Confirm slot format before ordering |
No. Both can convert MPO connectivity into LC interfaces, but a cassette is a panel-mounted module for structured patching, while a breakout cable is a direct fan-out assembly. The right choice depends on whether the project needs a serviceable patching layer or a simpler direct connection.
Polarity cannot be chosen in isolation. It must match the overall channel design, including the trunk, cassette, patch cords, and target transceiver layout. The safe approach is to define the complete channel method first and then source all components against that plan.
The module itself may cost more than a simple breakout assembly, but total project value should be judged by installation speed, maintenance efficiency, change control, and upgrade flexibility. In structured environments, the cassette often reduces operational cost even if the initial unit price is higher.
Ask for confirmation of fiber count, front connector type, single mode or multimode compatibility, polarity method, MPO gender, insertion loss class, enclosure compatibility, labeling format, and factory test support. These points have more impact on project success than generic product naming.
Yes. A cassette is often useful in migration projects where the backbone is built with MPO density but the active equipment still uses LC patching. This lets the project move toward higher-density architectures without forcing every interface change at once.
An MPO cassette is a structured transition module that converts MPO backbone connectivity into operationally friendly front-side patching, usually through LC duplex ports. It is most valuable when a fiber system needs density in the backbone and control at the patching layer.
For engineers and project teams, the core decision is not whether the cassette can work, but whether it is the right control point for the intended architecture. If the system requires clear polarity management, modular servicing, cleaner front-panel organization, and future migration flexibility, an MPO cassette is often the stronger choice. If the project only needs a direct and simple MPO fan-out, a breakout cable may be sufficient.
The most effective buying approach is to define the channel first, then order the cassette against exact parameters: fiber type, fiber count, front interface, polarity, MPO gender, loss class, and panel compatibility.
Share your fiber type, fiber count, polarity method, target front connector, loss requirement, and panel format. A clear parameter list reduces compatibility risk and speeds up quotation and sampling.
