Author: James Publish Time: 17-03-2026 Origin: Site
MPO fiber is the backbone of modern high-density cabling, helping engineers, buyers, and project teams reduce space pressure, speed up deployment, and prepare networks for 40G, 100G, 200G, and 400G migration.
MPO fiber combines multiple optical fibers into one compact connector for high-density cabling.
It is ideal for fast deployment, cleaner routing, and parallel optics used in modern data centers.
Correct fiber count, polarity, loss budget, and breakout method matter more than connector count alone.
MPO fiber refers to fiber optic cabling terminated with MPO connectors, where multiple fibers are arranged in one rectangular ferrule instead of being split into many separate duplex connectors. For high-density networks, this means fewer connector actions, cleaner cable routing, and faster installation in racks, cabinets, and patching zones.
In practical engineering terms, MPO fiber is not just a cable type. It is a structured approach to backbone deployment, parallel optics support, and future migration planning. It is commonly used in data centers, cloud environments, enterprise backbones, and modular fiber distribution systems.
| Term | Meaning | Why It Matters |
|---|---|---|
| MPO | Multi-fiber Push On connector format | Supports multiple fibers in one compact interface |
| MPO fiber cable | Fiber cable terminated with MPO connectors | Used for trunks, patch cords, breakout links, and modular cassettes |
| High-density fiber cabling | Structured cabling optimized for limited space and many connections | Improves rack efficiency and simplifies large-scale deployment |
The MPO connector uses a rectangular ferrule that aligns multiple fibers in parallel. Compared with LC duplex connectors, it is more compact at the port level and more efficient in structured high-count links. Understanding the connector structure helps engineers control insertion loss, polarity, and maintenance risk.
| Component | Function | Risk if Poorly Controlled |
|---|---|---|
| Ferrule | Holds multiple fibers in precise alignment | Higher loss, unstable mating performance |
| Guide pins / pin holes | Ensure accurate connector mating | Misalignment across the full fiber array |
| Fiber array | Places 8, 12, 16, 24 or more fibers in one row | Incorrect breakout mapping or channel mismatch |
| Housing and latch | Protect ferrule and simplify insertion/removal | Difficult maintenance in dense panels |
| Polarity key | Maintains connection orientation | Transmit/receive reversal in live systems |

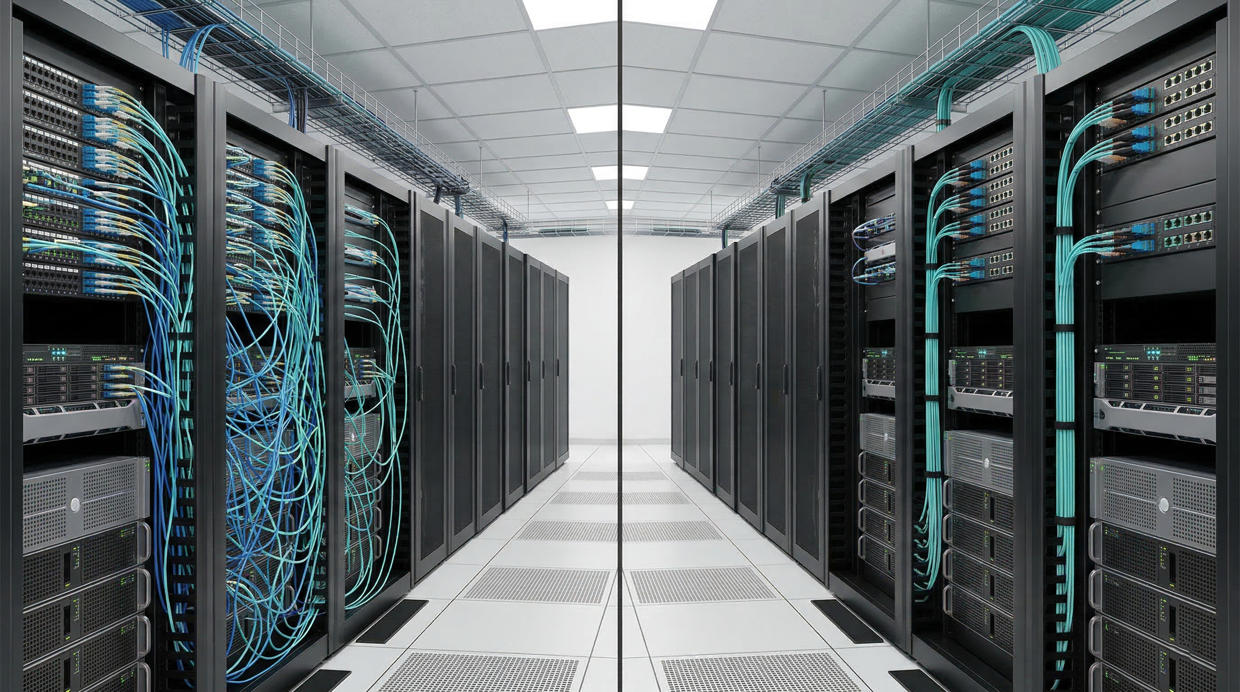

MPO fiber is widely adopted because it solves a real infrastructure problem: too many links, too little space, and too much installation time when using conventional duplex termination. It is especially valuable in data centers where cable congestion affects airflow, maintenance access, and expansion flexibility.
| Factor | Traditional Duplex Fiber | MPO Fiber System |
|---|---|---|
| Port density | Lower | Much higher |
| Installation speed | Slower, more connector handling | Faster, especially with pre-terminated trunks |
| Cable management | More crowded | Cleaner routing and simpler organization |
| Parallel optics support | Limited | Designed for it |
| Future scalability | Lower efficiency in very large systems | Better for modular upgrades and migration |
Not every MPO configuration fits every project. Fiber count should match transceiver architecture, breakout strategy, and migration goals. Overbuying count can waste budget. Under-planning can force early replacement.
| Fiber Count | Typical Use | Advantage | Watch Point |
|---|---|---|---|
| 8F | 40G / 100G SR4 parallel optics | Efficient channel use | Must match transceiver requirements exactly |
| 12F | Structured backbone cabling | Most common, flexible for many systems | Unused fibers may exist in some applications |
| 16F | Certain 400G architectures | Better aligned with newer parallel optics | Requires careful system compatibility check |
| 24F | High-density trunks and backbone aggregation | Higher link density per connector | More critical loss and routing management |
| Product Form | Connection Type | Best Use Case |
|---|---|---|
| MPO trunk cable | MPO to MPO | Backbone cabling between cabinets, zones, or patch panels |
| MPO patch cord | Short MPO jumper | Interconnection inside racks or cross-connect areas |
| MPO breakout cable | MPO to LC | Connecting MPO backbone to duplex equipment ports |
| MPO cassette module | Backbone MPO to front LC distribution | Modular panel systems with easier moves, adds, and changes |

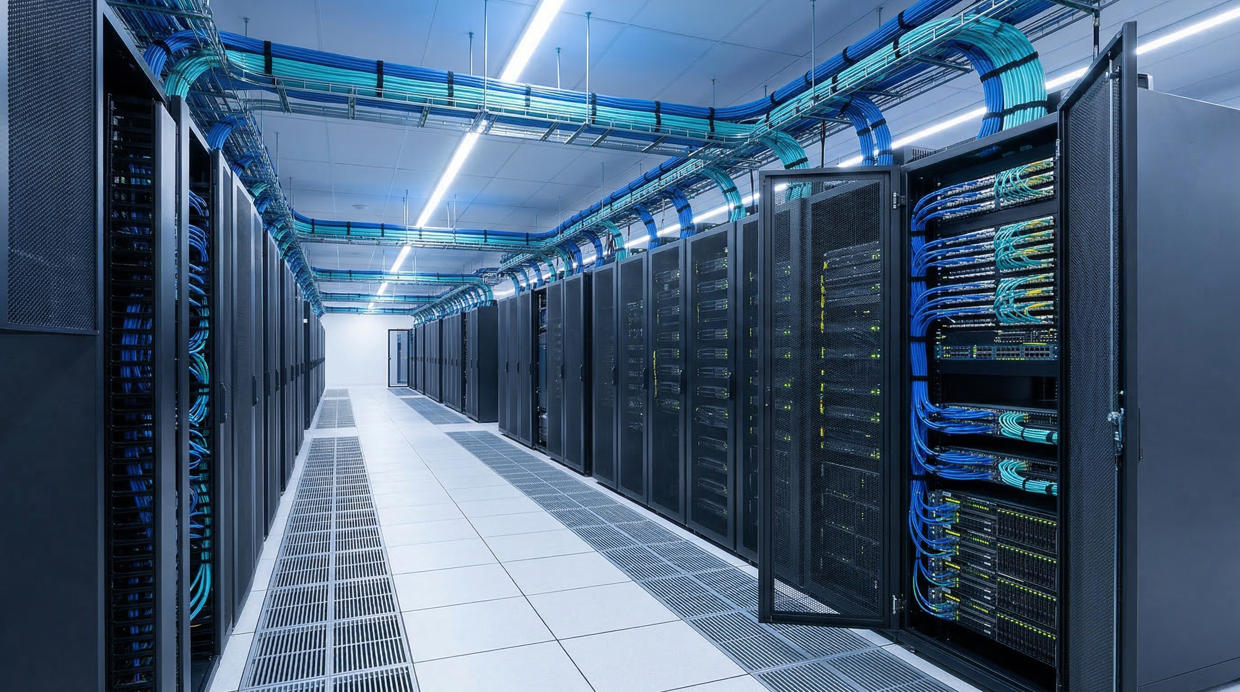

MPO fiber is common in environments where density, speed, and upgrade control matter. The business case becomes stronger when a site needs repeatable installation quality, predictable maintenance, and migration-ready trunk infrastructure.
| Application | Why MPO Is Used | Decision Concern |
|---|---|---|
| Data centers | High-density backbone and structured patching | Polarity, loss budget, rack planning |
| Cloud / hyperscale | Fast deployment across large volumes of links | Supplier consistency, factory testing, lead time |
| 40G/100G/400G networks | Supports parallel optics architectures | Fiber count compatibility and channel mapping |
| Enterprise backbone | Cleaner trunk distribution between telecom rooms | Migration path and maintenance simplicity |
| Modular fiber panels | Easy expansion and standardized front-to-back architecture | Cassette quality and labeling discipline |
For engineering and procurement teams, the fastest way to choose MPO fiber is to begin with transmission architecture, then validate polarity, fiber count, breakout method, and acceptable loss range. The table below is designed for quick project-level decision making.
| Project Situation | Recommended MPO Choice | Why | Watch Point |
|---|---|---|---|
| Short-reach 40G / 100G parallel optics | 8F MPO multimode | Fits SR4 lane architecture efficiently | Check transceiver map and polarity |
| General structured backbone | 12F MPO trunk | Common, flexible, widely available | Avoid vague polarity specification |
| 400G migration planning | 16F or migration-ready MPO design | Better future alignment | Confirm equipment roadmap first |
| Need MPO backbone to LC devices | MPO-LC breakout or cassette | Keeps trunk density, supports duplex ports | Breakout labeling and loss budget |
| Budget-sensitive but expansion expected | Pre-terminated MPO trunk with modular front-end | Controls labor and upgrade cost over time | Compare total installed cost, not unit cable price only |
For procurement teams, the goal is not to buy the cheapest MPO product. It is to buy a cabling solution that protects installation quality, link stability, and future expansion. A slightly lower connector price can become expensive if it causes loss issues, mislabeling, or replacement labor later.
| Selection Item | What to Confirm | Commercial Impact |
|---|---|---|
| Fiber type | OM3 / OM4 / OM5 / OS2 | Affects reach, compatibility, and future migration |
| Fiber count | 8F / 12F / 16F / 24F | Affects utilization efficiency and upgrade path |
| Polarity type | Type A / B / C system match | Avoids costly commissioning errors |
| Insertion loss | Standard loss vs low loss requirement | Critical for channel budget compliance |
| Cable construction | Trunk / patch / breakout / cassette | Drives labor model and panel design |
| Supplier capability | Testing, labeling, packaging, consistency | Reduces delivery risk and site troubleshooting cost |
MPO stands for Multi-fiber Push On. It is a connector format designed to terminate multiple fibers in one compact connector body.
MPO fiber is used in high-density cabling, data center backbone links, modular fiber distribution, and parallel optics for 40G, 100G, 200G, and some 400G network architectures.
Common MPO connectors support 8, 12, 16, or 24 fibers. The best choice depends on transceiver design, breakout plan, and long-term migration needs.
Not exactly. MPO is the general connector standard, while MTP is a premium MPO-style connector design. In many projects, the terms are used closely, but specification details still matter.
Yes. MPO systems can connect to LC-based equipment through breakout cables or MPO cassette modules, which convert a multi-fiber trunk into duplex front interfaces.
The biggest risk is not usually the connector itself. It is mismatched polarity, incorrect fiber count, unclear labeling, or insufficient control of insertion loss across the entire channel.
MPO fiber is a practical solution for high-density networks where space, speed, and scalability are critical. It helps reduce cable congestion, supports structured backbone design, and fits the parallel optics used in many modern data center environments. For engineers and project teams, the value of MPO is not only in connector density but in cleaner architecture, faster deployment, and better upgrade readiness.
The most effective buying approach is straightforward: define the application speed, match the required fiber count, lock the polarity method, confirm loss budget, and choose a supplier that can provide tested, clearly labeled, project-ready assemblies. That process reduces risk and makes the installation easier to maintain over time.
Send your fiber type, fiber count, connector format, polarity requirement, and cable length. We can help prepare a clearer datasheet and quotation for your application.
