1-1/4" RF
hellosignal
XT0302
Specification

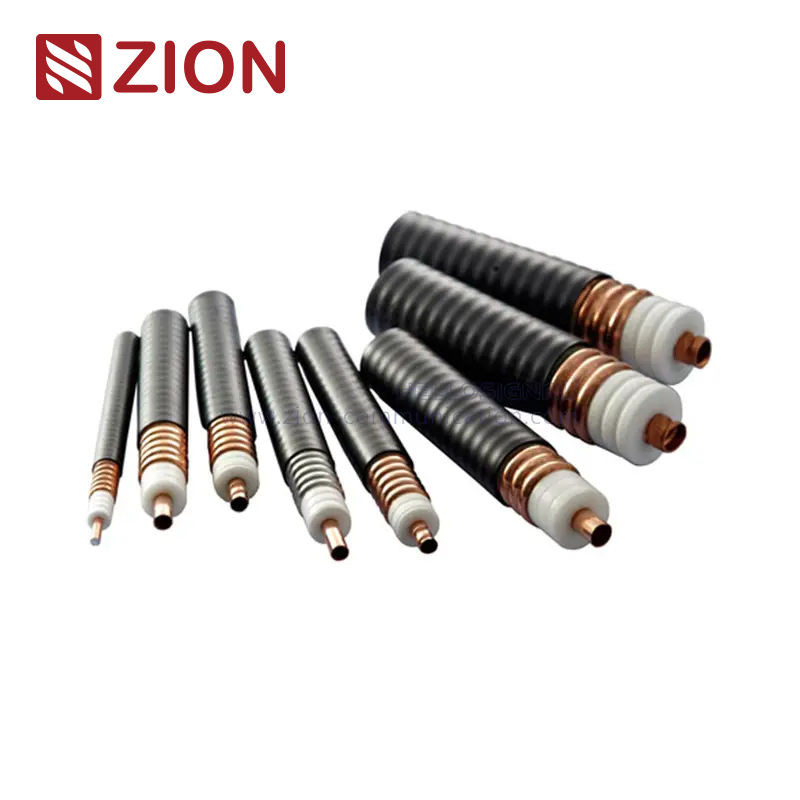

1-1/4" RF Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 13.1mm Smooth Copper Tube | |
| Dielectric | 33.3mm Foamed PE | |
| Outer Conductor | Nom.36.0mm Corrugated Copper Tube and Slot | |
| Jacket | 38.6mm Black PE/Low Smoke Halogen-free Fire-retardant PE | |
| Electrical Characteristics: | ||
| Capacitance | 76 pF/m | |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.88 | |
| Insulation Resistance (M.Ω.KM) | >5000 | |
| Insulation Voltage(KV) | 10 | |
| Jacket Sparkt (KV) | 10 | |
| Mechanical and Environmental: | ||
| Min.Single Bending Radius (mm) | 150 | |
| Mobile Apply (mm) | 380 | |
| No. of Bends | 15 | |
| Tensile Strength(kg) | 290 | |
| Operating Temp.(℃) | -55 to +85 ℃ | |

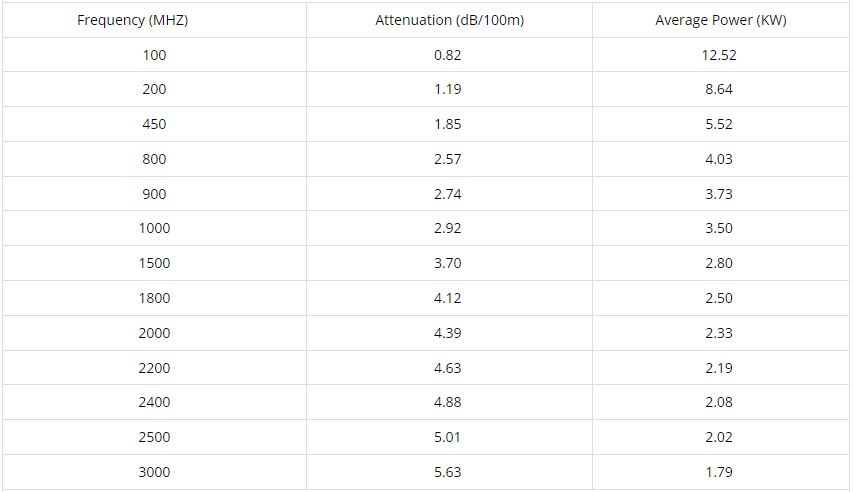

| Attenuation(20℃): | ||
| Frequency (MHZ) | Attenuation (dB/100m) | Average Power (KW) |
| 100 | 0.82 | 12.52 |
| 200 | 1.19 | 8.64 |
| 450 | 1.85 | 5.52 |
| 800 | 2.57 | 4.03 |
| 900 | 2.74 | 3.73 |
| 1000 | 2.92 | 3.50 |
| 1500 | 3.70 | 2.80 |
| 1800 | 4.12 | 2.50 |
| 2000 | 4.39 | 2.33 |
| 2200 | 4.63 | 2.19 |
| 2400 | 4.88 | 2.08 |
| 2500 | 5.01 | 2.02 |
| 3000 | 5.63 | 1.79 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 1-1/4" RF COAXIAL CABLE XXX M (or Per customer's request) | |
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
