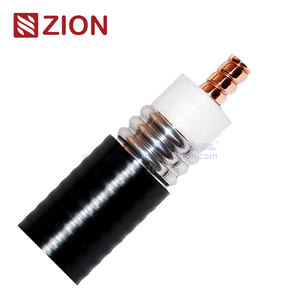

1 1/4" RF Coaxial Cable

■ Construction Parameters：

· Inner Conductor

· Material: Smooth Copper Tube

· Diameter: 13.10±0.20mm

· Insulation

· Material: Foamed PE

· Thickness: 32.80±0.50mm

· Outer Conductor

· Material: Annular Corrugated Copper Tube

· Diameter: 35.80±0.30mm

· Jacket

· Material: PE or LSZH

· Thickness: 38.50±0.30mm

■ SKU Information：

· SKU: 7101112-PEBK-500M

· Description: 1 1/4" RF Coax Cable PE Black Jacket (CPR Fca) 500M

· SKU: 7101112-OEBK-500M

· Description: 1 1/4" RF Coax Cable LSZH Black Jacket (CPR Eca) 500M

· Custom SKU: 7101112-××××-×××M

· Note: ××××-×××M will be named by Test inquired and Packing Length.

■ Marking on Cable Jacket：

· Text: ZION 1 1/4" RF COAXIAL CABLE 7101112-××××-×××M

■ Characteristics：

· Capacitance: 76 pF/m

· Impedance: 50 ±2 Ω

· Velocity of Propagation: 0.88

· Peak Power Rating: 205 KW

· Max. Operating Frequency: 3.7 GHz

· Insulation Resistance: >10000 MΩ.km

· DC Breakdown Voltage: 10000 V

· Jacket Spark Test Voltage: 8000 Vrms

· Inner Conductor DC Resistance: ≤ 1.50 Ω/km

· Outer Conductor DC Resistance: ≥ 1.20 Ω/km

· Shielding Attenuation: ≥ 120dB

· VSWR (Voltage Standing Wave Ratio)

· 800MHz-1000MHz: ≤ 1.15

· 1700MHz-2200MHz: ≤ 1.18

· 2200MHz-2700MHz: ≤ 1.20

· 3300MHz-3700MHz: ≤ 1.20

· PIM (Passive Intermodulation)

· Intermodulation (3rd order, 2*20W): ≤ -160 dBc

■ Mechanical Properties：

· Bending Radius (Single Bend): 200 mm

· Bending Radius (Repeated Bend): 380 mm

· Bending Moment: 50 Nm

· Flat Plate Crush Strength: 10 N/mm

· Tensile Strength: 2500 N

■ Environmental Specifications：

· Installation Temperature

· PE Jacket: -40℃ to +60 ℃

· LSZH Jacket: -20℃ to +60 ℃

· Operating Temperature

· PE Jacket: -55℃ to +85 ℃

· LSZH Jacket: -30℃ to +80 ℃

· Storage Temperature

· PE Jacket: -70℃ to +85 ℃

· LSZH Jacket: -30℃ to +80 ℃

■ Attenuation (20℃)：

· 200 MHz: 1.19 dB/100m, Average Power: 9.4 KW

· 450 MHz: 1.92 dB/100m, Average Power: 6.07 KW

· 800 MHz: 2.67 dB/100m, Average Power: 4.45 KW

· 900 MHz: 2.86 dB/100m, Average Power: 4.18 KW

· 1800 MHz: 4.28 dB/100m, Average Power: 2.81 KW

· 2000 MHz: 4.48 dB/100m, Average Power: 2.67 KW

· 2200 MHz: 4.76 dB/100m, Average Power: 2.53 KW

· 2500 MHz: 5.15 dB/100m, Average Power: 2.34 KW

· 2700 MHz: 5.36 dB/100m, Average Power: 2.24 KW

· 3000 MHz: 5.72 dB/100m, Average Power: 2.11 KW

· 3500 MHz: 6.25 dB/100m, Average Power: 1.53 KW

· 3800 MHz: 6.78 dB/100m, Average Power: 1.39 KW

■ Standards：

· Fire Resistant

· Standards: IEC 60754-1, IEC 60754-2, IEC 60332-1, IEC 60332-2, IEC 61034-1, IEC 60332-3-24

· RoHS Compliant: RoHS 2011/65/EU

· REACH Compliant

· CPR (Construction Products Regulation)

· CPR EURO Level: Fca, Eca

■ Packing：

· Standard Packing Length: 500M

Notes: Maximum attenuation value shall be 105% (some will be 110%) of the nominal attenuation value.
