1-2" Leaky
hellosignal
XT0307
Specification

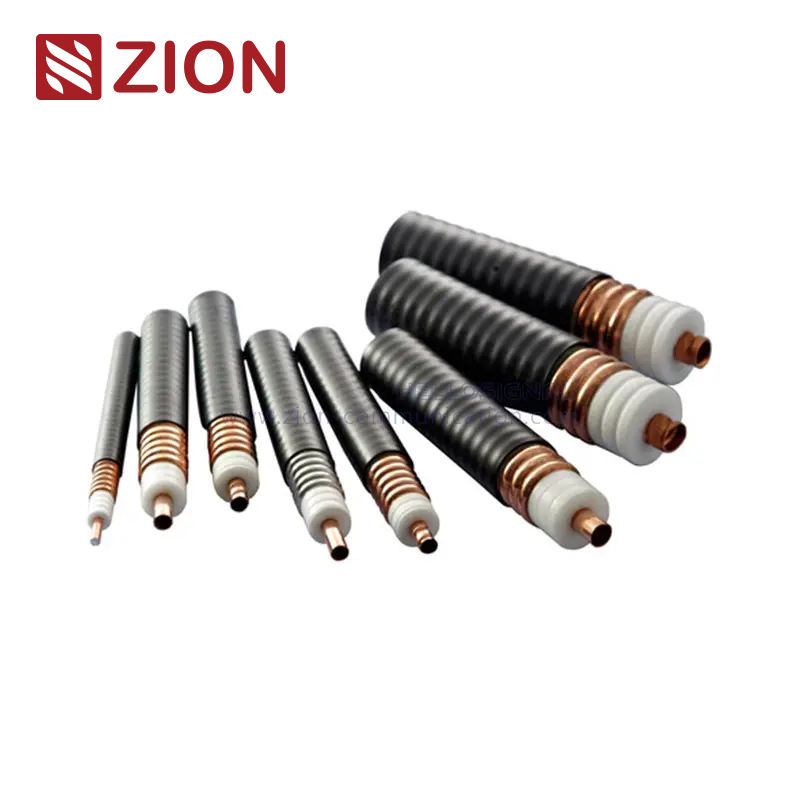

1-2" Leaky Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | Copper clad Aluminum Wire or Copper | |
| Dielectric | Physical Foam Polyethylene | |
| Outer Conductor | Corrugated Copper Tube and Slot | |
| Jacket | Black PE/Low Smoke Halogen-free Fire-retardant PE | |
| Electrical Characteristics: | ||
| Capacitance | 76 pF/m | |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.88 | |
| Insulation Resistance | >5000 M.Ω.KM | |
| Insulation Voltage | 6 KV | |
| Jacket Sparkt | 8 KV | |
| Mechanical and Environmental: | ||
| Min.Single Bending Radius | 50 mm | |
| Mobile Apply | 350 mm | |
| No. of Bends | 50 | |
| Tensile Strength | 100 kg | |
| Operating Temp. | -55 to +85 ℃ | |
| Attenuation(20℃): | ||

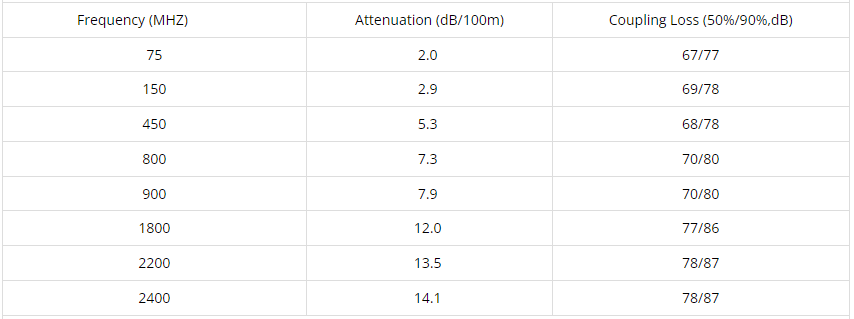

| Frequency (MHZ) | Attenuation (dB/100m) | Coupling Loss (50%/90%,dB) |
| 75 | 2.0 | 67/77 |
| 150 | 2.9 | 69/78 |
| 450 | 5.3 | 68/78 |
| 800 | 7.3 | 70/80 |
| 900 | 7.9 | 70/80 |
| 1800 | 12.0 | 77/86 |
| 2200 | 13.5 | 78/87 |
| 2400 | 14.1 | 78/87 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 1-2" Leaky COAXIAL CABLE XXX M (or Per customer's request) | |
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
