Specification
1-2" RF Coaxial Cable
Construction Parameters: | ||
Inner Conductor | 4.80mm Bare Copper/Copper Clad Aluminum Wire | |
Dielectric | 12.30mm Foamed PE | |
Outer Conductor | Nom.13.8mm Corrugated Copper Tube | |
Jacket | 15.7mm Black PE/Low Smoke Halogen-free Fire retardant PE | |
Electrical Characteristics: | ||
Capacitance | 76 pF/m | |
Impedance | 50 Ω | |
Velocity of Propagation | 0.88 | |
Peak Power Rating | 40 KW | |
RF Peak Voltage | 1.6 KV | |
Insulation Resistance | >5000 M.Ω.KM | |
Cut-off Frequency | 8.8 GHz | |
Insulation Voltage | 6 KV | |
Jacket Sparkt | 8 KV | |
Shielding Effectiveness | >120 dB | |
Mechanical and Environmental: | ||
Min.Single Bending Radius | 50 mm | |
Min.Repeated Bending Radius | 125 mm | |
No. of Bends | 15 | |
Tensile Strength | 350 kg | |
Operating Temp. | -55 to +85 ℃ | |
Attenuation(20℃): | ||
Frequency (MHZ) | Attenuation (dB/100m) | Average Power(KW) |
100 | 2.15 | 3.94 |
200 | 3.08 | 2.75 |
450 | 4.70 | 1.80 |
800 | 6.35 | 1.33 |
900 | 7.20 | 1.25 |
1000 | 9.05 | 1.18 |
1500 | 9.90 | 0.95 |
1800 | 10.50 | 0.86 |
2000 | 11.10 | 0.81 |
3000 | 13.20 | 0.65 |
Order Informations: | ||
Marking | HELLOSIGNAL 1-2" RF COAXIAL CABLE XXX M (or Per customer's request) | |

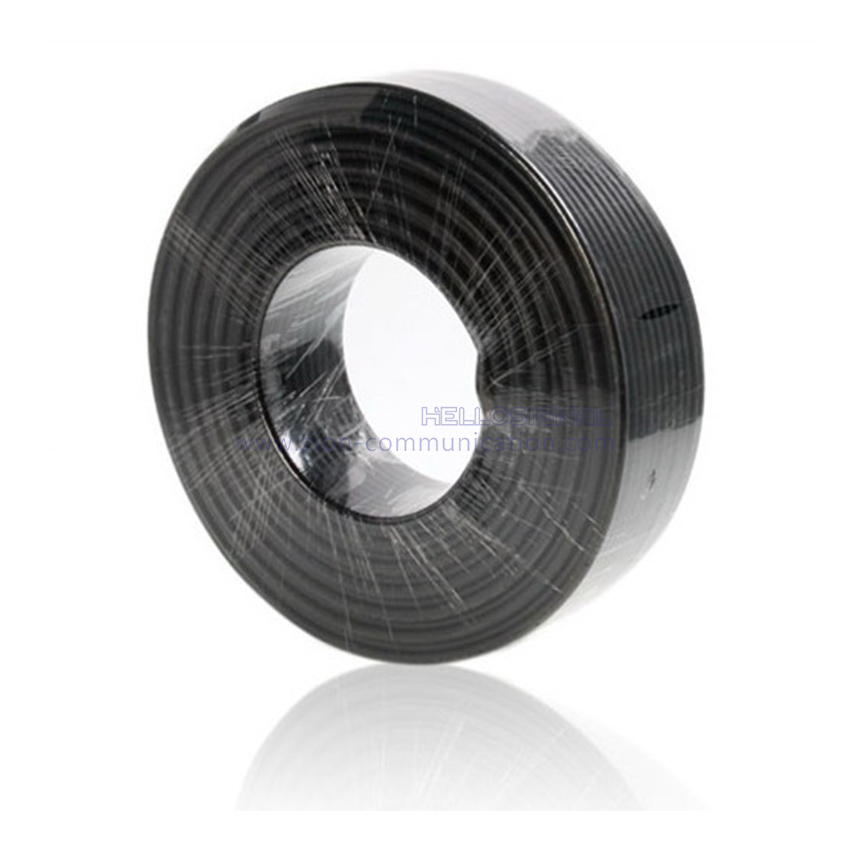

Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |
Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
Delivery time | Normally 15 days after received the deposit. | |
More informations | please contact with us. | |
Brand | HELLOSIGNAL® OR OEM |
