1-2" Super Flexible RF
hellosignal
XT0306
Specification

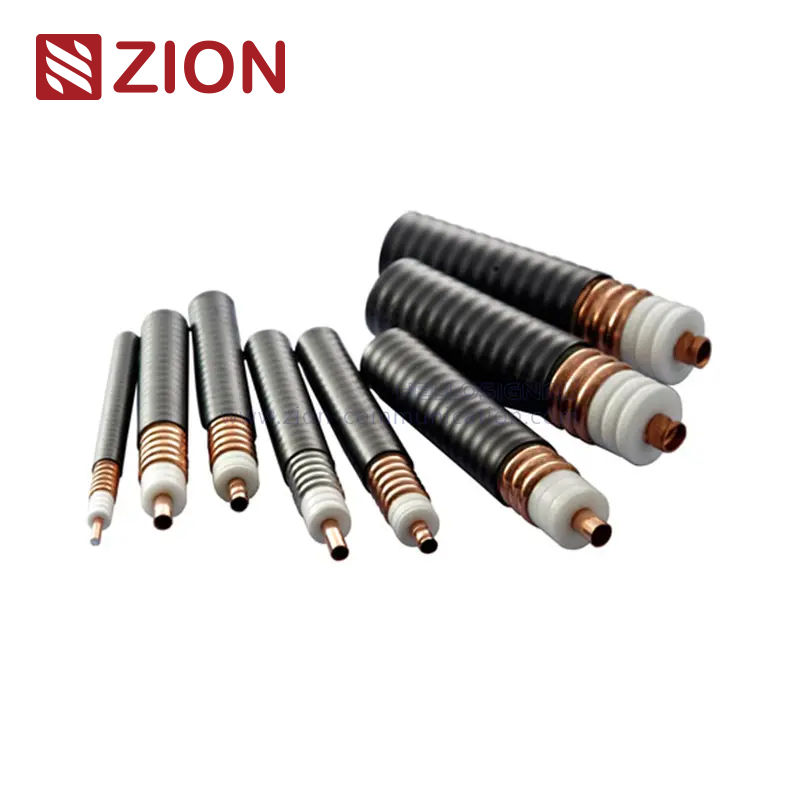

1-2" Super Flexible RF Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 3.55mm Copper Clad Aluminum Wire or Copper | |
| Dielectric | 8.7mm Foamed PE | |
| Outer Conductor | Nom.12.00mm Helical Copper Tube | |
| Jacket | 13.4mm Black PE/Low Smoke Halogen-free Fire-retardant PE | |
| Electrical Characteristics: | ||
| Capacitance | 80 pF/m | |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.83 | |
| Insulation Resistance | >5000 M.Ω.KM | |
| Insulation Voltage | 2.5 KV | |
| Jacket Sparkt | 5 KV | |
| Mechanical and Environmental: | ||
| Min.Single Bending Radius | 50 mm | |
| Mobile Apply | 125 mm | |
| No. of Bends | 15 | |
| Tensile Strength | 350 kg | |
| Operating Temp. | -55 to +85 ℃ | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Attenuation (dB/100m) | Average Power (KW) |
| 100 | 3.22 | 3.03 |
| 200 | 4.63 | 2.11 |
| 450 | 7.20 | 1.37 |
| 800 | 9.86 | 1.00 |
| 900 | 10.56 | 0.94 |
| 1000 | 11.15 | 0.88 |
| 1500 | 13.80 | 0.70 |
| 1800 | 15.55 | 0.63 |
| 2000 | 16.40 | 0.59 |
| 2200 | 17.35 | 0.56 |
| 2400 | 18.10 | 0.53 |
| 2500 | 18.50 | 0.52 |
| 3000 | 20.90 | 0.48 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 1-2" SUPER FLEXIBLE RF XXX M (or Per customer's request) | |
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
