1-5/8" Radiating
hellosignal
XT0311
Specification

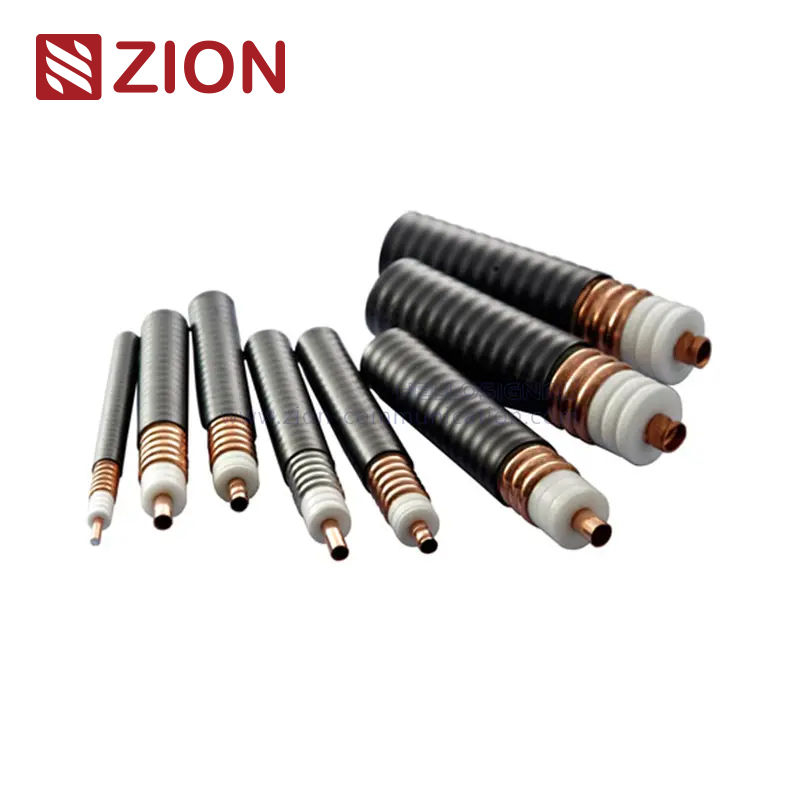

1-5/8" Radiating Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 17.5mm Helical Copper Tube | |
| Dielectric | 43.5mm Foamed PE | |
| Outer Conductor | Nom.43.8mm Overlapping Copper Foil | |
| Jacket | 48.3mm Black PE/Low Smoke Halogen-free Fire-retardant PE | |
| Electrical Characteristics: | ||
| Capacitance | 76 pF/m | |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.88 | |
| Insulation Resistance | >5000 M.Ω.KM | |
| Insulation Voltage | 15 KV | |
| Jacket Sparkt | 10 KV | |
| Mechanical and Environmental: | ||
| Min.Single Bending Radius | 510 mm | |
| Mobile Apply | 900 mm | |
| No. of Bends | 80 | |
| Tensile Strength | 170 kg | |
| Operating Temp. | -55 to +85 ℃ | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Attenuation (dB/100m) | Coupling Loss (50%/90%,dB) |
| 150 | 0.88 | 73/84 |
| 450 | 1.70 | 75/86 |
| 800 | 2.60 | 73/83 |
| 900 | 2.70 | 70/81 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 1-5/8" Radiating COAXIAL CABLE XXX M (or Per Yours) | |
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
