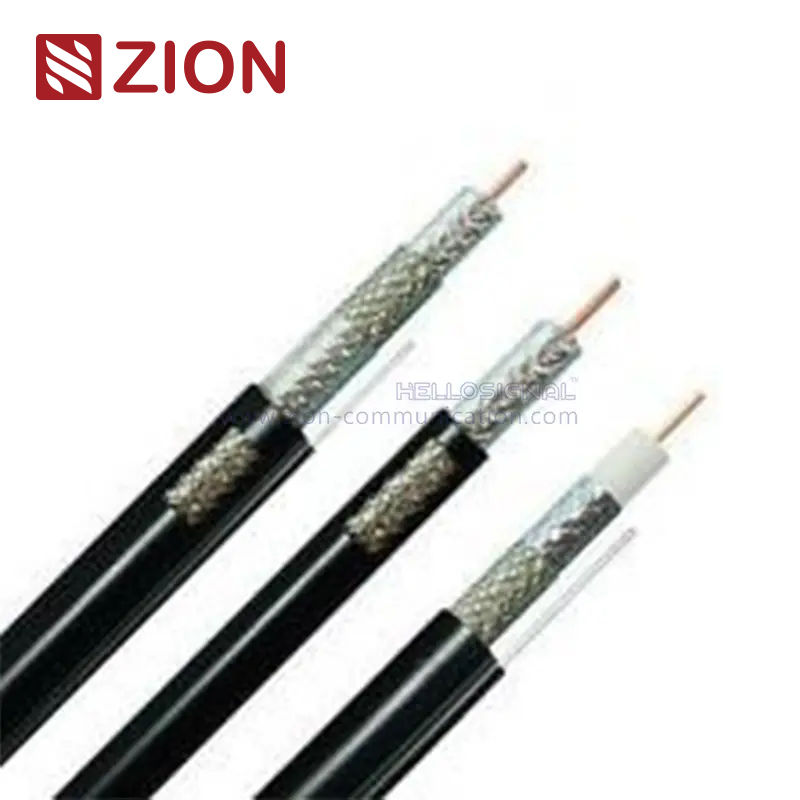

10D-FB Coaxial Cable

■ Construction Parameters:

Inner Conductor: 3.50mm Bare Copper/Copper Clad Aluminum

Dielectric: 10.0mm Foamed PE

First Shield: Nom. 10.20mm BONDED AL FOIL

Second Shield: Nom. 10.80mm Tinned Copper/TCCA

Jacket: 13.00mm PVC (Color by your choice)/PE

■ Electrical Characteristics:

Capacitance: 84 pF/m

Impedance: 50 Ω

Conductor DCR: 1.8/3.0

Velocity of Propagation: 0.8

Max Operating Voltage: 50 Ω

Operating Temperature Range: -40 ℃ to 80 ℃

RoHS Compliance: YES

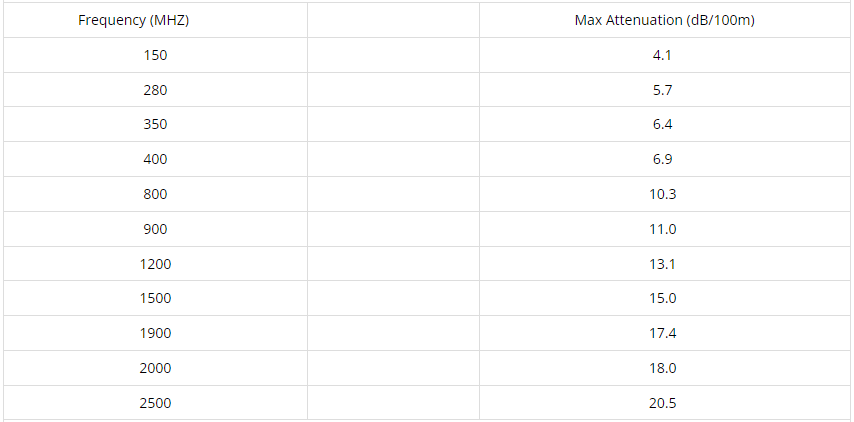

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL 10D-FB COAXIAL CABLE XXX M (or per customer's request)

Inner Package: 100m/Roll, 100m/Spool, 305m/Spool (or per customer's request)

Outer Package: Carton, Color Box, Pallet (or per customer's request)

Delivery Time: Normally 15 days after receiving the deposit

More Information: Please contact us

Brand: HELLOSIGNAL® or OEM
