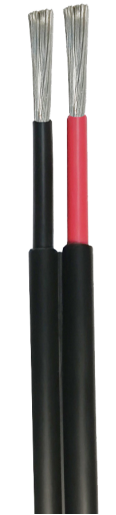

2×10.0mm²-Black/Red (H1Z2Z2-K) Twin Core Solar (PV) Cable (NO.7194105)- IEC 62930 / EN 50618:2014

General characteristics:

Appllcation:

Specifically designed to connect photovoltaic system components inside and outside buildings
and facilities under high mechanical demands and extreme weather conditions.

Cable Construction：

Conductor

Metarial：

Tinned annealed copper

Area(mm²) :

2×10.0

Construction(N/mm) :

74/0.40

Conductor(Dia./mm) :

3.97 (Ref.)

Insulation

125℃ XLPE Black

Nom. thickness (mm) :

0.8 (Ref.)

Standard diameter (mm) :

5.6±0.10

Jacket

125℃ XLPE, Black / Red

Min. thickness (mm) :

0.7

Nom. thickness (mm) :

0.9 (Ref.)

Outer diameter (mm) :

（7.40±0.1）×（15.0±0.1）

Making

ZION COMMUNICATION TÜV  SÜD  IEC62930
EN50618:2014   H1Z2Z2-K   2×10mm²   -40℃   to  +90℃
DC  1500V  HALOGEN  FREE  LOW  SMOKE

Package：

100M/Roll, 500M/Wooden Drum

PALLET

Electrical properties

Nominal Voltage:

H1Z2Z2-K:   DC 1.5KV   AC 1.0/1.0KV

Ambient Temperature:

-40℃~+90℃

Max.Temperature at conductor:

+125℃

Service life:

＞25 years ( -40℃~+90℃)

Voltage:

600/1000V

Temperature:

-40~90℃

Conductor resistance (20℃):

1.95Ω/km

Insulation resistance (70℃):

≥1000 MΩ/km

Withstand voltage(V/5min)

AC6500

Speak voltage(V/5min)

AC6500

Min bending radius(mm)

5*D

Main performance parameter of finished cable

Voltage test of finished cable

Min.time of dipping in water

≥1(h)

Testing voltage (AC)

6500(V)

Min.voltage applying time at one time

5(min)

Test result

no breakdown

Sheated surface resistance

Length of specimen:

250mm

Test result

≥109Ω

Penetrate the insulation resistance

Temperature

20℃

Test result

≥1014Ω

High temperature stress

Temperature

140℃

A: with 1.2 Voltage test

A: No breakdown

B: deep pressure

B: Wall thickness 50%

Damp-heat test

Temperature

90℃

Humidity

0.85

Aging before and after the tenslle strength of Change

≤30%

Aging before and after the elongation at break of Change

≤-30%

Acid-alkali Resistance

Min.time of dipping in

168h

Aging before and after the tensile strength of Change

≤-30%

Elongation

≥100

Low-temperature bending

Temperature

-40℃

Time

16h

Test result

No crack

Ozone resistance

Ozeone concentration %

（200±50）x10^-6

Time

72h

Test result

No crack

Heat schrinkable jacket test

Test result

≤2%

Flame retardant-Vertical burn

Flxture on the lower edge from the starting point and carbonization

≥50mm

Burning fuel downward from the lower edge of bottom fixture

≤540mm

Halogen content of non-metallic materials

Test result

Chlorine and bromine content

HCL≤0.5HBr≤0.5%

Fluoride content

F≤0.1%

The inner layer of insulation and sheath of the mechanical properties

Test result

Aging before tensile strength

8.0N/mm²

Aging before elongation

1.25

Aging before and after the tensile strength of change

-30%

Aging before and after the elongation at break of change

-30%

Hot extension

Temperature

200℃

Test result-The inner layer of insulation and sheath

Elongation under load

≤100%

Elongation after unloading

≤25%
