2×2.5mm² (PV1-F / H1Z2Z2-K) Twin Core Solar Cable

General characteristics:

Appllcation:

Specifically designed to connect photovoltaic system components inside and outside buildings
and facilities under high mechanical demands and extreme weather conditions.

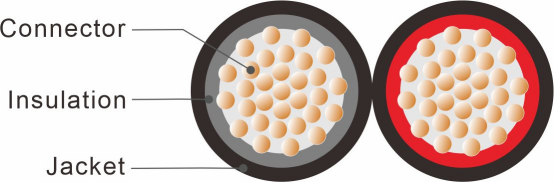

Cable Construction：

Conductor

Metarial：

Tinned annealed copper

Area(mm²) :

2*2.5

Construction(N/mm) :

50/0.25

Conductor(Dia./mm) :

2.04

Insulation

120℃ XLPE

Standard thickness (mm) :

0.75

Standard diameter (mm) :

3.54±0.1

Jacket

120℃ XLPE, Black

Standard thickness (mm) :

1.0

Outer diameter (mm) :

（5.5±0.2）×（11.0±0.2）

Making

ZION COMMUNICATION PV1-F / H1Z2Z2-K 2x2.5mm² UV Res
DC 1.0KV AC 0.6/1.0KV (DC 1.5KV AC 1.0/1.0KV)
SOLAR CABLE

Package：

BOX  (art.code ZC-100-2×2.5mm/ZC-500-2×2.5mm)

PALLET (art.code ZC-100-100-2×2.5mm)

Size:

Amount of boxes on one pallet:

Weight of total pallet:

Cable length pallet:

Electrical properties

Nominal Voltage:

PV1-F:          DC 1.0KV   AC 0.6/1.0KV
H1Z2Z2-K:   DC 1.5KV   AC 1.0/1.0KV

Ambient Temperature:

-40℃~+90℃

Max.Temperature at conductor:

+120℃

Service life:

＞25 years ( -40℃~+90℃)

Conductor resistance (20℃):

8.21Ω/km

Insulation resistance (70℃):

≥1000 MΩ/km

Withstand voltage(V/5min)

AC6500

Speak voltage(V/5min)

AC6500

Min bending radius(mm)

5*D

Main performance parameter of finished cable

Voltage test of finished cable

Min.time of dipping in water

≥1(h)

Testing voltage (AC)

6500(V)

Min.voltage applying time at one time

5(min)

Test result

no breakdown

Sheated surface resistance

Length of specimen:

250mm

Test result

≥109Ω

Penetrate the insulation resistance

Temperature

20℃

Test result

≥1014Ω

High temperature stress

Temperature

140℃

A: with 1.2 Voltage test

A: No breakdown

B: deep pressure

B: Wall thickness 50%

Damp-heat test

Temperature

90℃

Humidity

85%

Aging before and after the tenslle strength of Change

≤30%

Aging before and after the elongation at break of Change

≤-30%

Acid-alkali Resistance

Min.time of dipping in

168h

Aging before and after the tensile strength of Change

≤-30%

Elongation

≥100%

Low-temperature bending

Temperature

-40℃

Time

16h

Test result

No crack

Ozone resistance

Ozeone concentration %

（200±50）x10^-6

Time

72h

Test result

No crack

Heat schrinkable jacket test

Test result

≤2%

Flame retardant-Vertical burn

Flxture on the lower edge from the starting point and carbonization

≥50mm

Burning fuel downward from the lower edge of bottom fixture

≤540mm

Halogen content of non-metallic materials

Test result

Chlorine and bromine content

HCL≤0.5HBr≤0.5%

Fluoride content

F≤0.1%

The inner layer of insulation and sheath of the mechanical properties

Test result

Aging before tensile strength

8.0N/mm²

Aging before elongation

125%

Aging before and after the tensile strength of change

-30%

Aging before and after the elongation at break of change

-30%

Hot extension

Temperature

200℃

Test result-The inner layer of insulation and sheath

Elongation under load

≤100%

Elongation after unloading

≤25%
