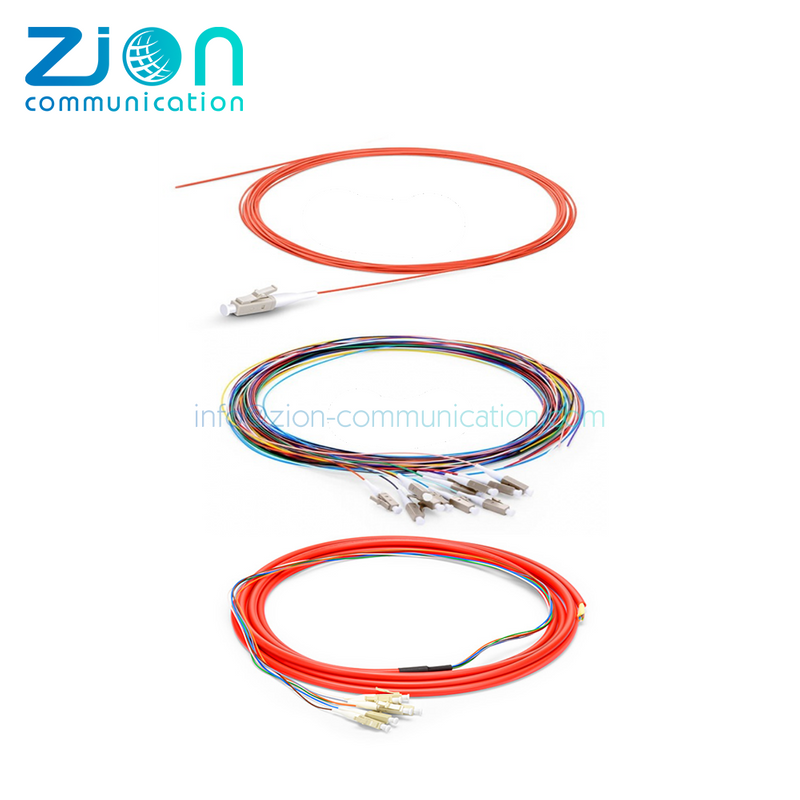

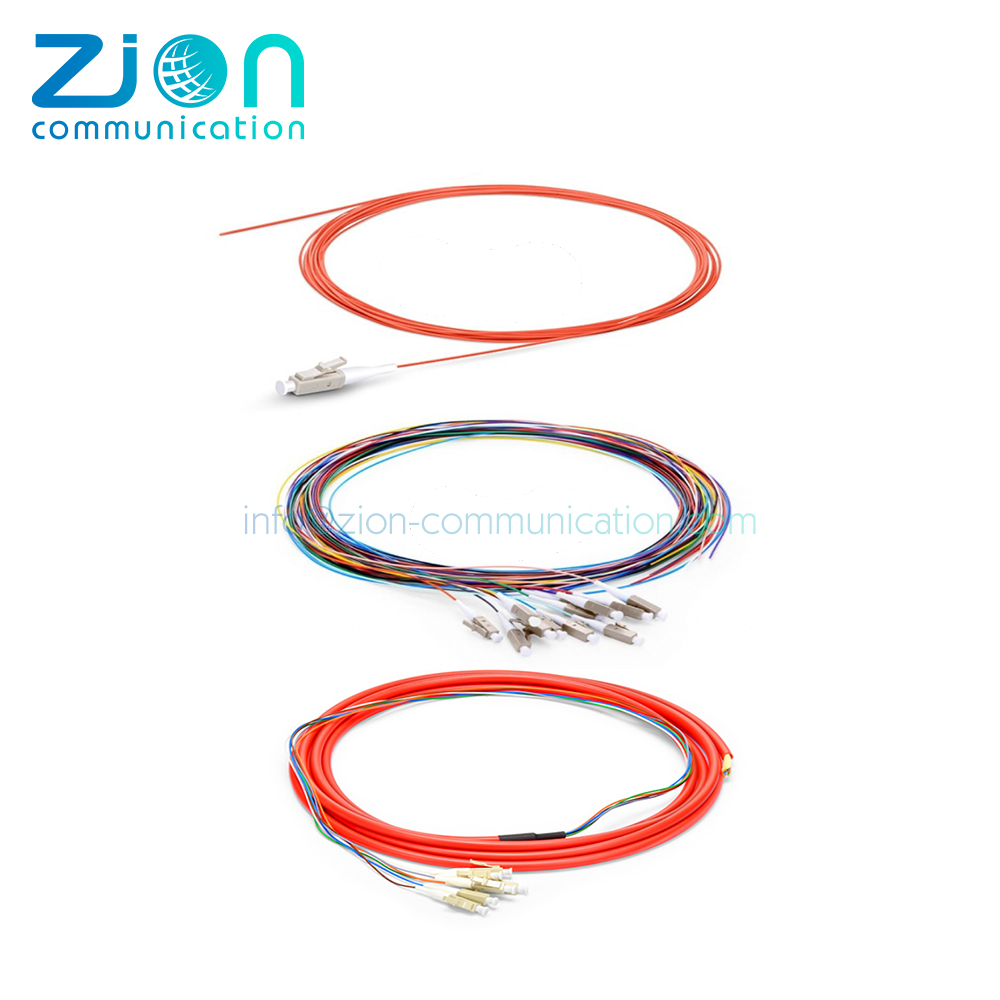

50/125 (OM2) Optical Fibre Pigtails

Features:

✔  SC, LC, ST, FC and E2000 connectors
✔  Low smoke zero halogen (LSZH) buffer
✔  900μm tight buffer or easy strip
✔  OM2 pigtail is available in standard white colour
✔  Multimode fibre conforms to TIA/EIA 492AAAA
✔  Different connector performance range for specific application
✔  Available in standard 12 colours as per IEC 60304

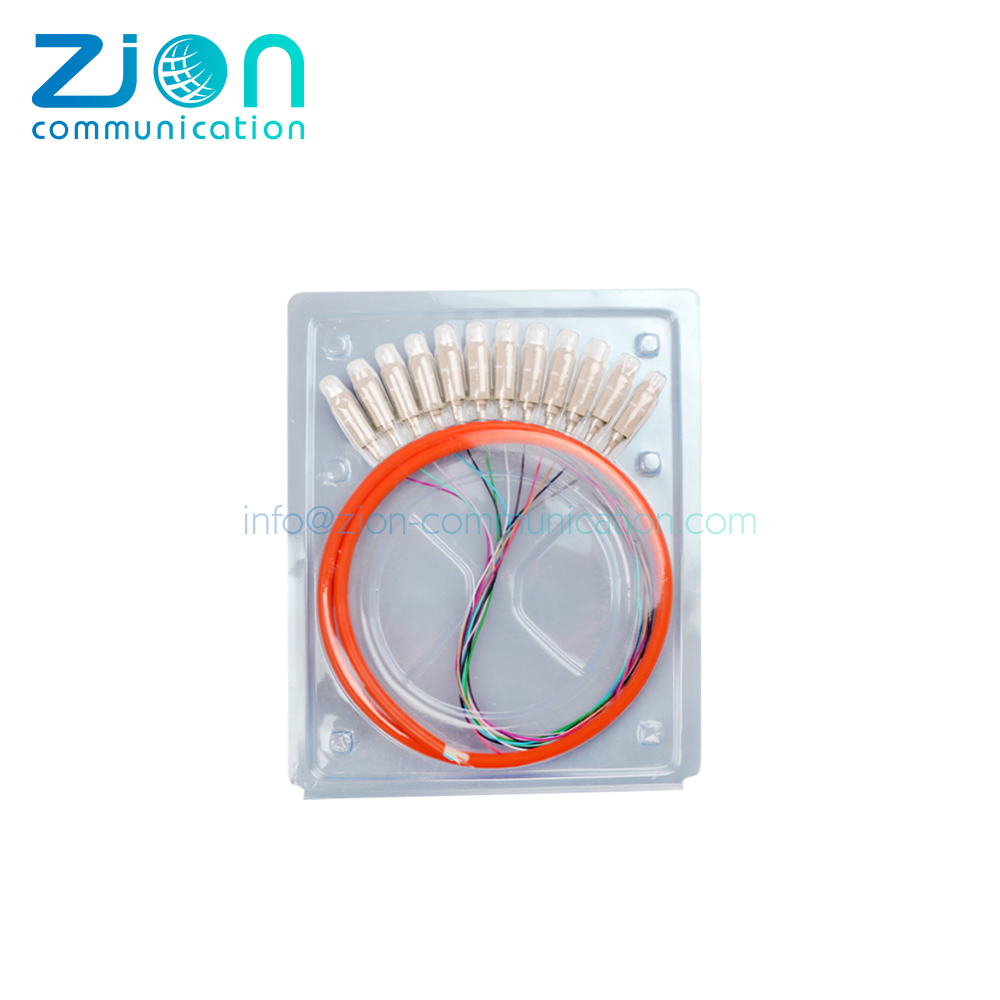

✔  Available in standard and blister packing

Application:

✔  Networks including Ethernet, Fast Ethernet and GBE
✔ Internal inter-connect
✔  Ideal for a wide range of telecom, datacom and process control applications where ruggedisation is required
✔  Suitable for repeated handling in patch panels and racks

Connector Specification:

Optical Performance

Singlemode

Conformance

IL Max/Master (Acceptance)

0.25 dB

IEC 61300-3-4

Ave/Master

0.15 dB

IEC 61300-3-4

Ave/Random

0.20 dB

IEC 61300-3-34

Fibre Specification：

Characteristics

Attenuation (dB) / km

                2.80 @ 850nm / 0.80 @ 1300nm

Bandwidth OFL (MHz x km)                        1500 @ 850nm / 500 @ 1300nm

Cable Specification:

Characteristics

Units

Simplex

Max Tensile Load

N

6

Nominal buffer Diamete

μm

900+50

Crush (N)

N/100mm

500

Operating Temperature (˚C)

-20 to 60

Part Number Generator:

SC  APC  SX  OS2  1  YE  1

 ①      ②      ③      ④     ⑤   ⑥     ⑦

Connector

Polish
Type

Cable
Type

Mode

Jacket
Type

Jacket
Color

Length

SC
LC
ST
FC
D4
E2000
MU

UPC


APC

SX=Simplex


DX=Duplex

OS1
OS2
OM1
OM2
OM3
OM4
OM5

0=Unjacketed
1=PVC
2=LSZH
3=OFNP
4=OFNR
5=PE
6=TPU

YE=Yellow
BL=Blue
GN=Green
OR=Orange
GY=Grey
PU=Purple
AQ=Aqua

0=0.5m
1=1m
2=2m
3=3m
····

①

②

④

⑤

⑥

⑦

⑧

⑨
